If you work with pool cleaners or inspection bots, you already know the quiet importance of good squeegees. I recently took a closer look at rubber wiper strips, robot rubber accessories, robot rubber parts from an OEM that’s been supplying marine and aquaculture systems. To be honest, the devil’s in the compound—NBR done right behaves very differently underwater.
What’s trending in underwater cleaning
The market is shifting toward longer-duty cycles and harsher water chemistries—salt pools, flocculants, even copper sulfate in some facilities. Integrators want stable scraping performance with minimal swelling and a predictable coefficient of friction. Nitrile rubber (NBR) is having a moment again because it balances oil/fuel resistance with decent abrasion behavior. And yes, many customers say a properly beveled edge makes or breaks throughput.
Key specs at a glance

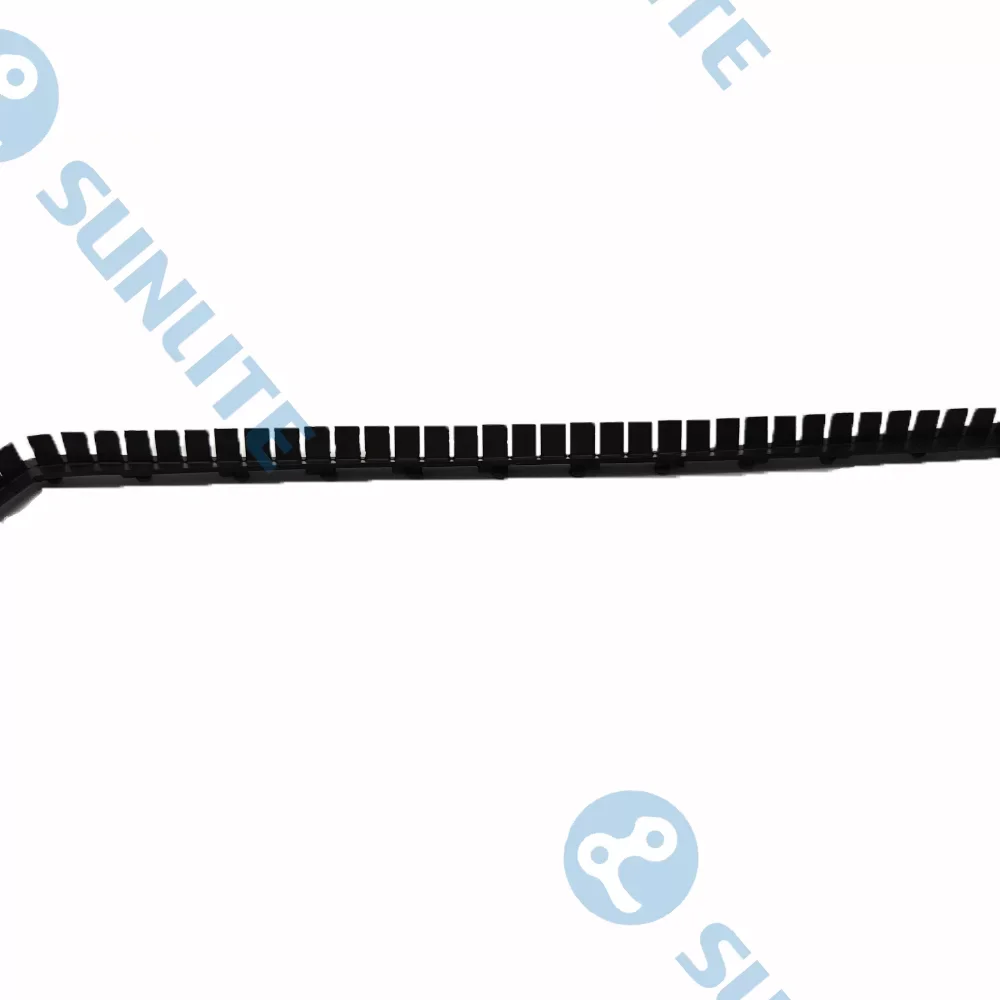

These rubber wiper strips are tuned for sludge removal and flow guiding on underwater robots, emphasizing chlorine tolerance and dimensional stability.
Base material | NBR (Nitrile Rubber), oil-resistant grade |
Hardness | ≈60 ±5 Shore A (ASTM D2240) |
Operating temperature | -20°C to 60°C cyclic; short-term up to ≈80°C dry |
Chemical resistance | 30-day immersion retention ≥80%; volume change ≤15% (chlorine, NaClO, acids/alkalis) (ASTM D471) |
UV & ozone | UV retention ≥80% after 168 h (ISO 4892-2); no cracks in ozone test (ISO 1431) |
Dimensions | Width 10–60 mm; thickness 3–8 mm; length up to ≈2000 mm (ISO 3302-1 M2) |
Edge geometry | Straight, beveled 20–30°, or micro-serrated; custom profiles |
Service life | Around 12–24 months in chlorinated pools; real-world use may vary |
Where they’re used
· Swimming pool cleaning robots
· Glass/acrylic wall cleaning (transparent panels)
· Underwater smooth-structure cleaning (tiles, inox)
· Aquaculture observation windows and camera shrouds
· High-standard basins: nuclear/medical water facilities
Compared with other robot rubber accessories (like generic TPU squeegees), well-compounded NBR tends to swell less in sodium hypochlorite and keeps a sharper edge longer, which—surprisingly—also improves flow guiding.
How they’re made (quick process flow)
· Compound design: NBR with ≈33–36% ACN, anti-ozonants, UV stabilizers.
· Mixing: internal mixer and mill; dispersion check.
· Forming: extrusion for strip profiles; compression molding for ends.
· Vulcanization: ≈160–175°C; post-cure as required.
· Finishing: trimming, optional cryo-deflashing, bevel cutting.
· Inspection: dimensions per ISO 3302-1; hardness (ASTM D2240); tensile/elongation (ASTM D412).
· Durability tests: immersion swell (ASTM D471, NaClO), UV (ISO 4892-2), ozone (ISO 1431), thermal aging (ISO 188), temperature cycling.
Vendor snapshot (field-notes comparison)
Vendor | Base polymer | MOQ | Lead time | Certs/docs | Indicative $/m | Notes |
SunliteTek (OEM) | NBR | ≈50 m | 7–15 days | ISO 9001; RoHS/REACH docs | 3.5–6.0 | Underwater-robot tuned; custom bevels |
Generic Import A | EPDM/NBR blend | ≈200 m | 20–30 days | Limited | 2.2–3.0 | Lower abrasion data; basic QC |
Local Machined B | PU sheet | 1 set | 3–5 days | N/A | 8–12 | Fast; poorer chlorine stability |
Prices/lead times are indicative; real-world use may vary by profile and volume.
Field feedback and quick case notes
“Less smear, better lift on fine sludge,” a pool robotics integrator in Spain told me after moving to NBR beveled edges.
· Nuclear research basin: switched from PU; service life improved ≈40% under NaClO regime, no ozone cracking after 6 months.
· Aquaculture camera windows: custom micro-serration reduced water filming; robot energy use dropped around 15% due to cleaner flow.
For other robot rubber parts in the same assembly—rollers, seals—matching NBR grades can reduce mixed-material swell issues.
Compliance and documentation
Material test reports (hardness, tensile, immersion), RoHS/REACH compliance, and dimensional inspection sheets are available on request. Production typically follows ISO 9001 processes, with sampling to AQL standards.
Citations
1. ASTM D471: Rubber—Effect of Liquids.
2. ASTM D2240: Standard Test Method for Rubber Property—Durometer Hardness.
3. ASTM D412: Vulcanized Rubber—Tension.
4. ISO 4892-2: Plastics—Methods of Exposure to Laboratory Light Sources.
5. ISO 1431: Rubber—Resistance to Ozone Cracking.
6. ISO 3302-1: Tolerances for Rubber Products—Dimensional.
7. ISO 188: Rubber, Vulcanized or Thermoplastic—Accelerated Ageing and Heat Resistance.
