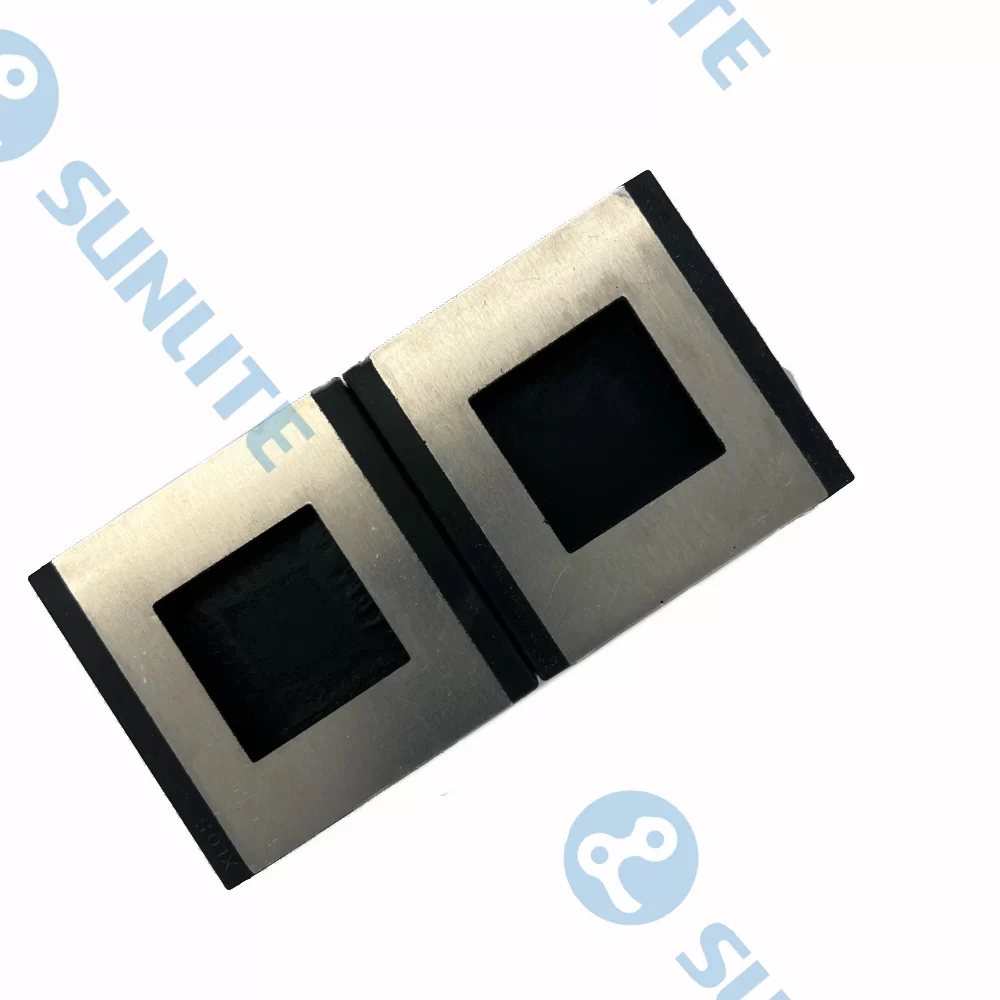

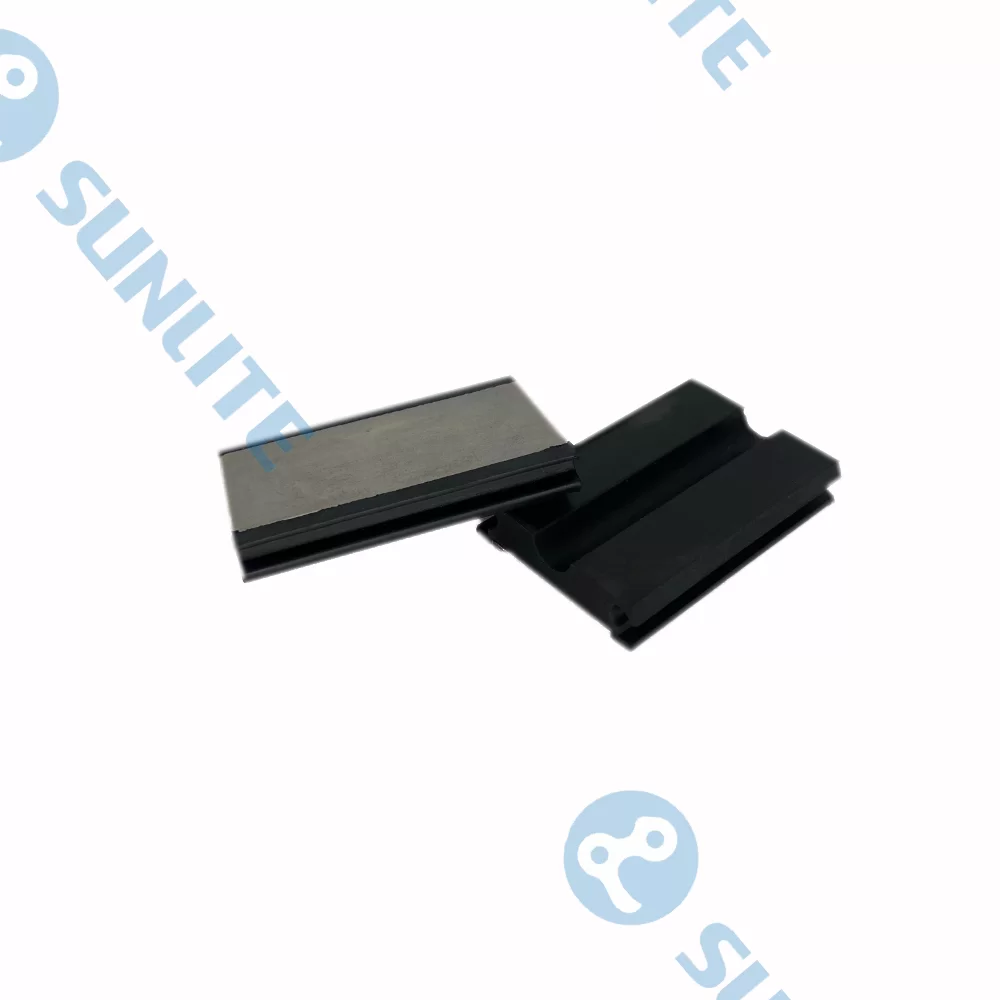

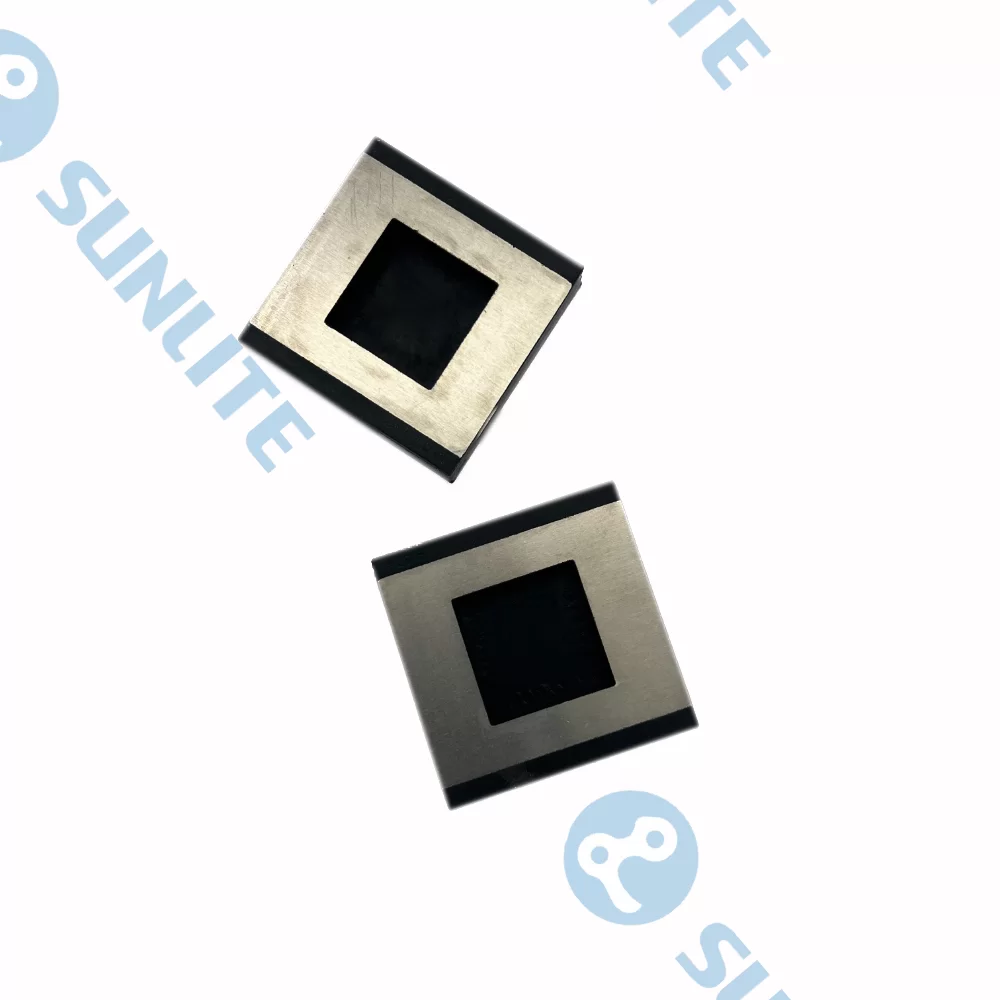

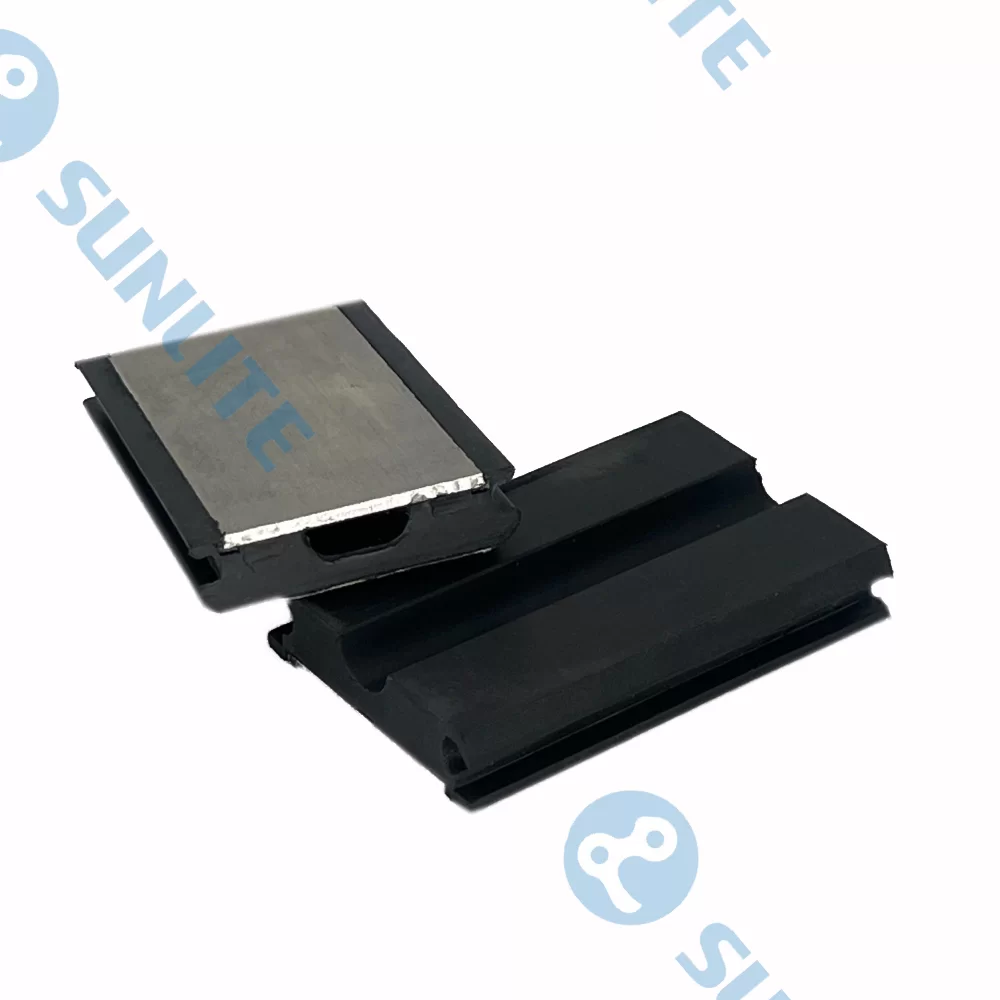

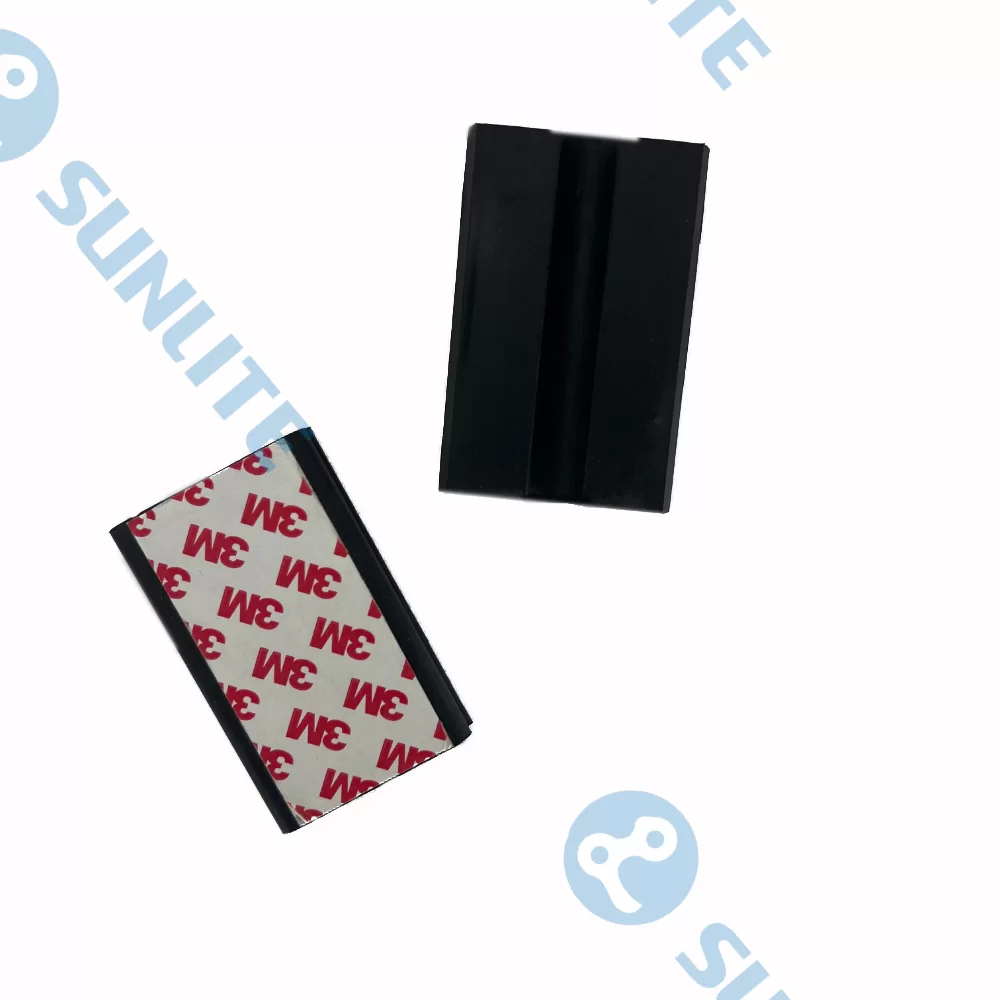

Floor Vibration Dampers

APPLICATION SCENARIOS

1. Passenger car floor structures, inhibiting vibrations transmitted from the road surface

2. Commercial vehicle cabs, enhancing sound insulation and noise reduction performance

3. Electric vehicle battery trays, protecting battery packs from impacts

4. Connection parts between the chassis and body, enhancing the stability of the overall structure

Product Description

This series of products is developed forward based on finite element computational mechanics analysis and manufactured using high-precision injection molding technology. The core rubber materials and performance parameters support customized design according to customer needs, featuring both a compressive strength of ＞12MPa and a performance retention rate of ＞95% after 5 million dynamic fatigue cycles. Compliant with EN45545-2 HL3 fire protection standards and TB3139 environmental standards, they provide long-term vibration damping protection for high-end buildings and industrial equipment.

PRODUCT FUNCTION

Scientific structural design:

Finite element simulation of over 100,000 working condition loads optimizes stress distribution, avoiding the risk of local failure.

Customized stiffness curves match the vibration spectrum of equipment, increasing resonance suppression efficiency by 30%.

Cutting-edge process guarantee:

Fully automatic injection molding achieves ±0.1mm dimensional accuracy, with batch consistency reaching 99%.

Adhesion strength of rubber-metal inserts ＞8MPa, eliminating the hidden danger of delamination.

Extreme environment durability:

Dynamic modulus fluctuation ＜5% within the temperature range of -40℃~80℃, ensuring stability under wide-temperature working conditions.

Height change ＜3% after 5 million fatigue cycles, with permanent deformation rate ≤1%.

Safety compliance certification:

Passed the strictest fire protection standard for rail transit EN45545-2 HL3 (all items including smoke toxicity, flame retardancy, and heat release meet standards).

Compliant with TB3139 heavy metal-free environmental requirements.

PERFORMANCE INDEX

Structural design: Finite element simulation optimization + customer-customized stiffness

Manufacturing process: Fully automatic injection molding (clamping force ＞800T)

Mechanical strength: Compressive strength ≥12MPa (ISO 604)

Dynamic service life: ≥5 million fatigue cycles (load 0.5~3MPa)

Performance stability: Performance retention rate after fatigue ≥95%

Fire rating: EN45545-2 HL3 (all items R24-R29)

Environmental certifications: TB3139, REACH, RoHS 3.0

APPLICATION AREA

Precision manufacturing industry: Vibration isolation for lithography machine/electron microscope platforms, with micro-vibration control ≤1μm

Rail transit: Vibration damping for maintenance trenches in metro depots, impact isolation for floors of train equipment compartments

Medical buildings: Magnetically shielded vibration-damping bases for MRI rooms, sound-insulating floors for operating room equipment

Energy and power industry: Foundation vibration isolation for gas turbines, protection of precision relays in substations

Cultural facilities: Floating floors in concert halls, anti-vibration systems for museum display cabinets

Floor Shock Absorbing Pads Enhancing Noise Reduction and Vibration Isolation in Building Floors

The floor shock absorbing pads are engineered to significantly enhance noise reduction and vibration isolation in diverse building floors, ranging from commercial vehicle cabs to specialized architectural structures like concert halls and medical buildings. This performance is achieved through a combination of scientific structural design and advanced material durability.

The primary function in floor applications is to create a dynamic barrier that isolates the protected space from external noise and structural vibration. In contexts like commercial vehicle cabs, the pads are essential for enhancing sound insulation and noise reduction performance, which improves occupant comfort. In architectural settings, such as floating floors in concert halls or sound-insulating floors for operating room equipment, the pads prevent external noise and vibration from compromising the integrity of the environment. The design specifically allows the pad to increase resonance suppression efficiency by 30% by matching its customized stiffness curves to the vibration spectrum of the equipment or structure being protected.

This superior isolation is guaranteed by the cutting-edge process guarantee and structural precision. Manufactured using high-precision injection molding technology, the pads achieve extremely tight dimensional accuracy, ensuring batch consistency and eliminating the risk of localized failure that could create noise bridges. The material's ability to maintain stable performance, with dynamic modulus fluctuation being minimal across a wide temperature range, ensures that the floor vibration dampers remain effective regardless of ambient conditions.

Furthermore, the robust material properties and compliance with safety standards make these pads ideal for permanent integration into building infrastructure. The product is certified to the stringent EN45545-2 HL3 fire protection standards, which is essential for installation in public access areas and complex structures. By effectively isolating the floor, the rubber damping pad not only reduces noise but also protects the building structure itself from internal vibrations transmitted from the road surface or internal equipment, ensuring the long-term integrity and functional quietness of the building environment.

Rubber Damping Pad Applications in High-Precision Industrial Equipment and Medical Facilities

The rubber damping pad has critical applications in environments demanding extreme stability, such as high-precision industrial equipment and specialized medical facilities. These scenarios, including lithography machine/electron microscope platforms and MRI rooms, require rigorous micro-vibration control that standard building practices cannot achieve.

In the precision manufacturing industry, stability is measured in microns. The floor vibration dampers are utilized to create highly stable platforms for instruments like lithography machines, where micro-vibration control is required to be extremely low. This stability is delivered by the pad’s scientific structural design, which employs finite element simulation to optimize stress distribution and tailor the stiffness curve. This process ensures the pad's damping characteristics precisely match the vibration spectrum of the sensitive equipment, effectively isolating the platform from ground-borne and building-transmitted vibrations. The result is a substantial increase in resonance suppression efficiency, crucial for maintaining the operational accuracy of micro-scale manufacturing processes.

Similarly, in medical buildings, the pads are used to create magnetically shielded vibration-damping bases for MRI rooms and stable bases for operating room equipment. MRI machines are highly sensitive to external vibrations, which can degrade image quality and operational reliability. By installing the floor shock pads beneath the base, structural vibrations are effectively decoupled from the equipment. This ensures consistent, high-quality operation and contributes to the structural integrity and sound control of the entire facility.

The reliability required in these critical sectors is guaranteed by the product's quality assurance. The pads boast a high compressive strength and exceptional extreme environment durability, with minimal fluctuation in dynamic modulus across a wide temperature range. Crucially, the pads comply with stringent fire and environmental regulations, ensuring safety and health compliance alongside high performance. This combination of precision engineering and proven durability makes the rubber damping pad an indispensable component for protecting both advanced technology and patient care environments.

Floor Vibration Dampers Designed for Long-Term Fatigue Resistance Under High Dynamic Loads

Floor vibration dampers are specifically designed to offer exceptional long-term fatigue resistance and structural integrity when subjected to high dynamic loads, a necessity in applications like vehicle chassis, rail transit, and heavy industrial equipment.3 This resilience is the result of advanced material science and rigorous manufacturing control.

The foundation of its fatigue resistance lies in the material's ability to endure millions of stress cycles while maintaining functional consistency. The pads are guaranteed to retain a high performance retention rate after 5 million dynamic fatigue cycles. This means that despite repeated loading and unloading, the pad's thickness and dynamic properties, such as its stiffness and damping coefficient, remain stable, with height change being minimal and permanent deformation rate being extremely low. This ensures that the damping performance, crucial for inhibiting vibrations transmitted from the road surface in vehicles or impact isolation for floors of train equipment compartments, remains reliable for the designed service life.

The manufacturing process provides a cutting-edge process guarantee that ensures this longevity. The use of fully automatic injection molding achieves high-dimensional accuracy and consistency, eliminating internal flaws that could become failure points under dynamic load.4 Furthermore, the robust adhesion strength of rubber-metal inserts is strictly controlled, eliminating the hidden danger of delamination. Delamination is a common failure mode in composite damping products subjected to high cyclic shear forces; by ensuring a strong, consistent bond, the floor shock pads maintain their structural integrity throughout their operational life.

This guaranteed durability, backed by a high compressive strength, is essential for critical applications such as electric vehicle battery trays, where the pads protect high-value battery packs from road-induced impacts, and in connection parts between the chassis and body, where they enhance the stability of the overall structure over years of continuous use. This focus on extreme environment durability and sustained performance under fatigue makes the floor vibration dampers a high-reliability component for modern heavy-duty applications.
