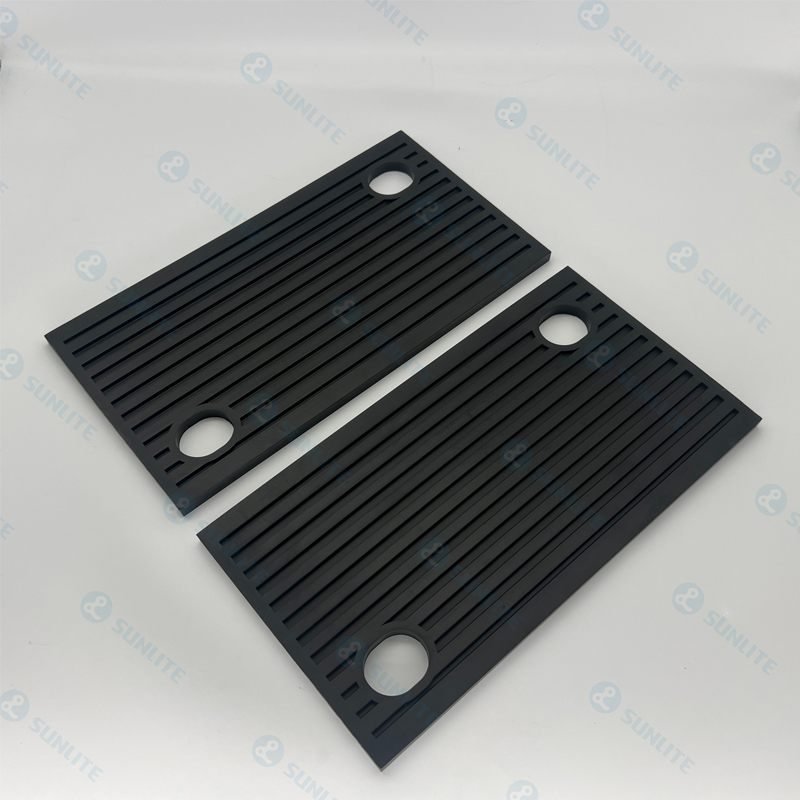

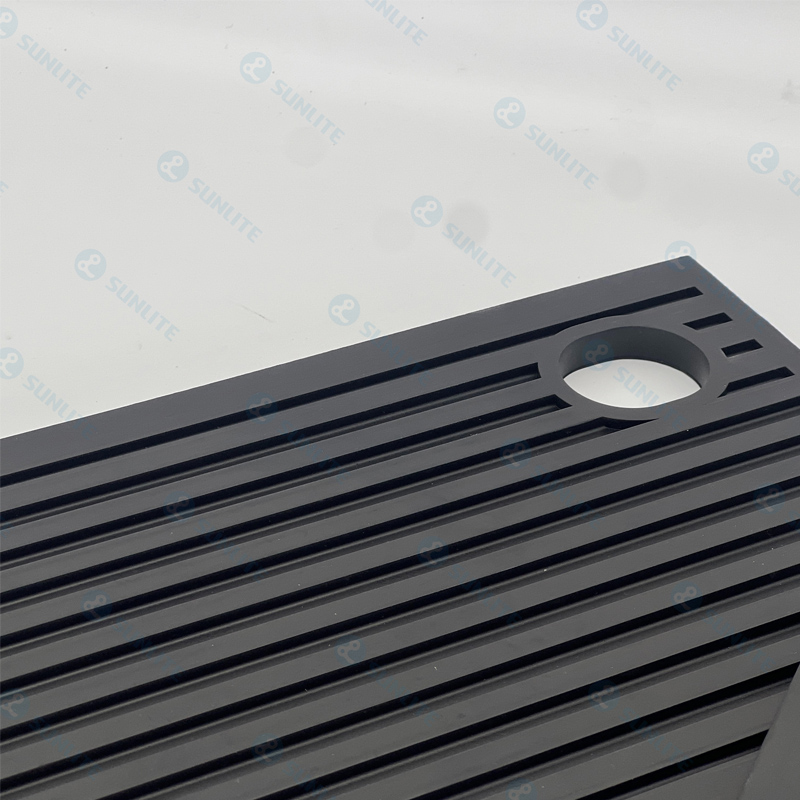

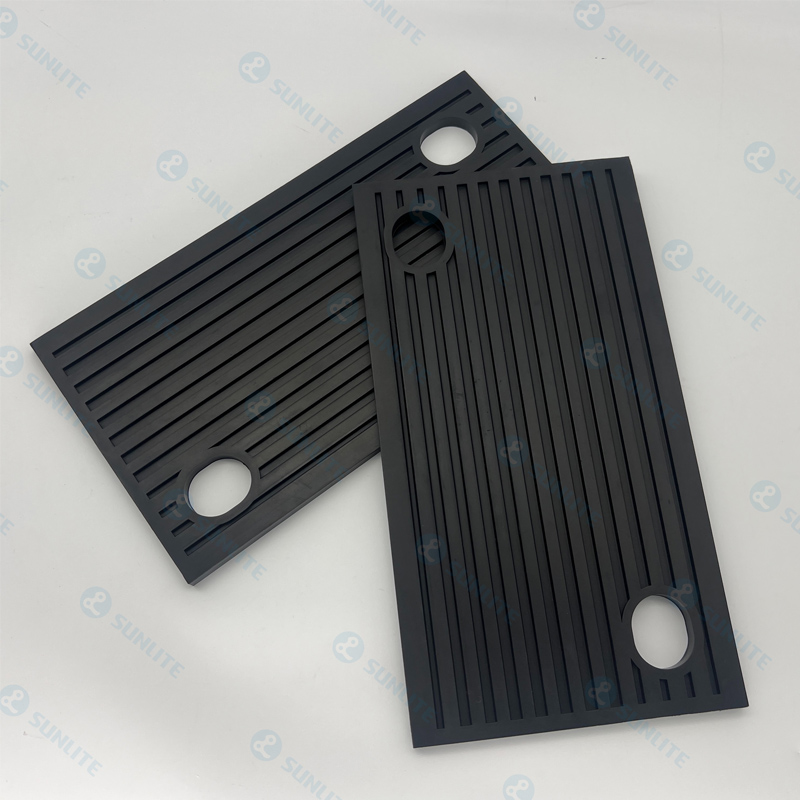

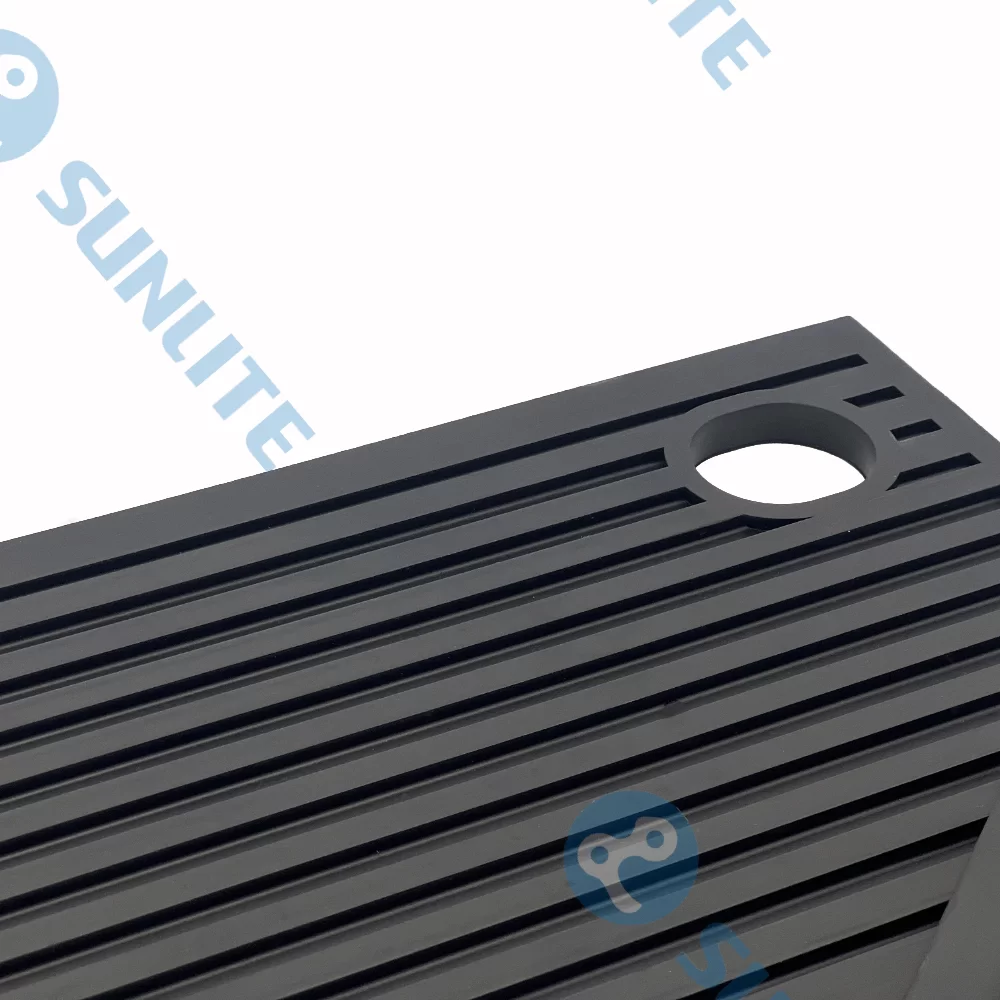

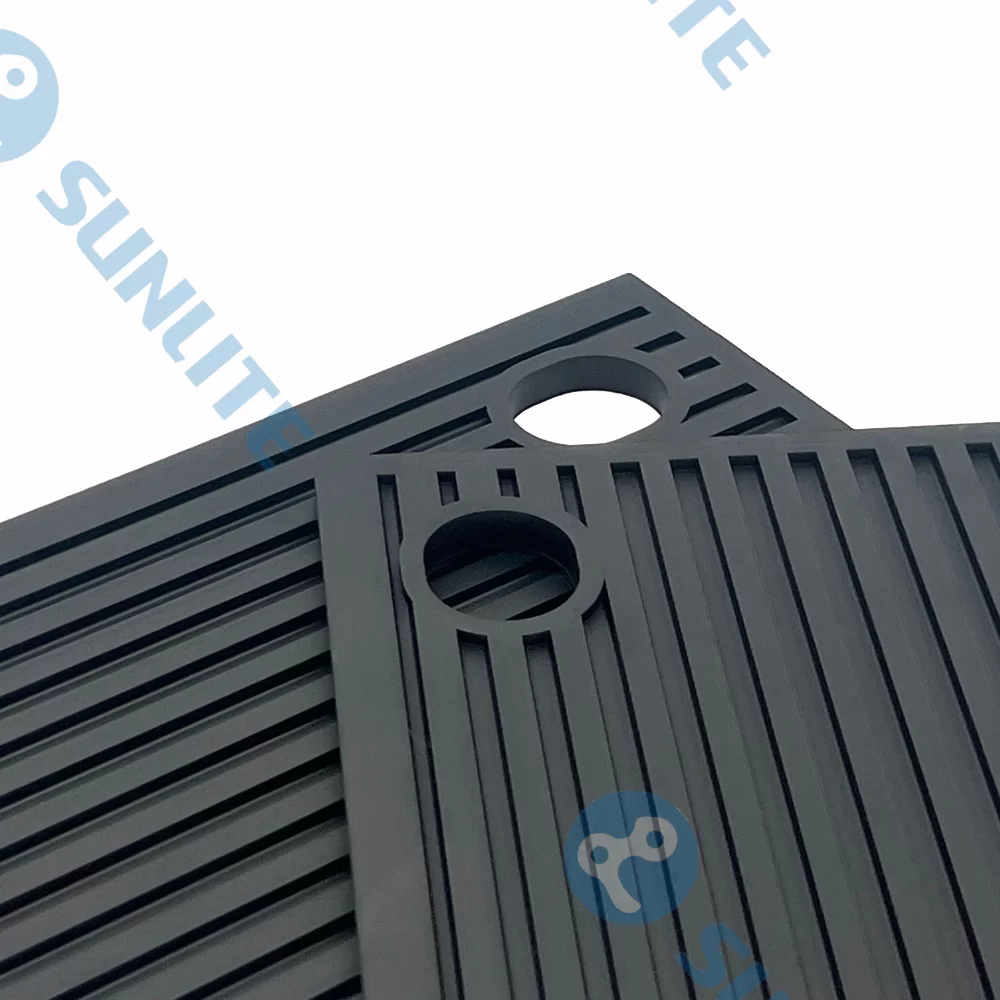

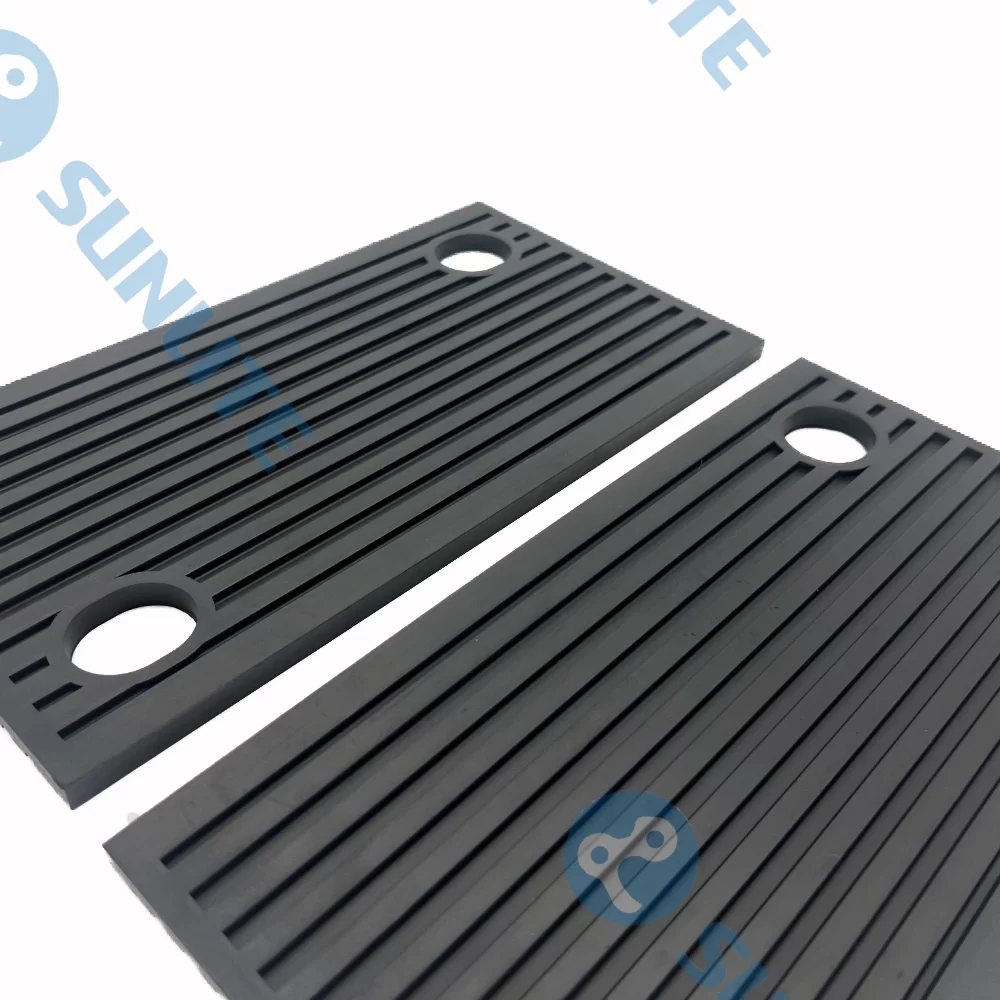

Flexible Rubber Pad

APPLICATION SCENARIOS

1. Under railway track sleepers, providing vibration damping and buffering for the impact force of trains

2. In light rail and subway track systems, reducing operational noise and vibration

3. At track-bridge joints, alleviating structural stress concentration

4. Track maintenance replacement components, enhancing track stability and durability

Product Description

This series of rubber pads is custom-developed for different engineering scenarios, offering two core material options: Natural Rubber (NR) and Chloroprene Rubber (CR). The products feature high tensile strength of ＞15MPa and excellent dynamic performance (dynamic-static stiffness ratio ＜1.5). After 3 million fatigue tests, the stiffness change is ＜15% and the thickness change is ＜10%, providing long-term stable vibration damping support for high-frequency impact scenarios such as rail transit and heavy-duty equipment.

PRODUCT FUNCTION

Dynamic performance optimization:

The dynamic-static stiffness ratio is strictly controlled below 1.5, ensuring efficient absorption of vibration energy under dynamic loads.

After 3 million fatigue cycles, the stiffness stability remains ＞85%, preventing performance degradation caused by long-term use.

Material scenario adaptation:

Natural Rubber (NR) series: Featuring high elasticity and low heat build-up, suitable for vibration damping in normal temperature environments.

Chloroprene Rubber (CR) series: Oil-resistant and weather-resistant, humid-heat/chemical corrosion working conditions.

Structural durability guarantee:

With tensile strength ＞15MPa and thickness change ＜10% after fatigue, it maintains structural integrity.

Customized design support:

Provide material and structural optimization solutions based on line load, environmental medium, and installation space.

PERFORMANCE INDEX

Material series: Natural Rubber (NR), Chloroprene Rubber (CR) and custom formulas

Mechanical strength: Tensile strength ≥15MPa

Dynamic characteristics: Dynamic-static stiffness ratio ≤1.5

Fatigue life: Stiffness change ≤15% and thickness change ≤10% after 3 million cycles

Environmental adaptability: NR series (-40℃~70℃); CR series (-30℃~120℃)

APPLICATION AREA

Rail transit: Rail pads, switch vibration damping bases, vehicle suspension systems

Industrial equipment: Vibration damping supports for stamping machines, shockproof base pads for compressors

Construction engineering: Bridge bearings, building isolation layers, pipe gallery anti-seismic brackets

Energy facilities: Generator set foundation vibration isolation, oil pipeline anti-seismic cushion blocks

Heavy machinery: Port crane vibration damping pads, impact-resistant cushion layers for mining equipment

Elastic Rubber Pad Improving Vibration Reduction and Structural Stability in Rail Transit

The elastic rubber pad is a critical component designed to significantly improve vibration reduction and structural stability within rail transit systems, offering long-term support under the severe dynamic loads of passing trains. This superior performance is achieved through meticulous control of the material's dynamic performance optimization and robust structural durability guarantee.

The primary function of the flexible rubber pad in rail applications, such as placement under railway track sleepers, is to act as a precision buffer. The material's high elasticity and controlled stiffness are essential for buffering the impact force of trains. The dynamic-static stiffness ratio is strictly controlled to be low, ensuring that the pad efficiently absorbs vibration energy under dynamic loads. This efficient energy dissipation mitigates the shock transmitted from the rail to the sleeper and ballast, which in turn reduces the high-frequency vibrations that translate into operational noise and vibration in light rail and subway track systems.

Crucially, the pad's structural integrity provides the foundation for long-term stability. The high tensile strength and commitment to minimal thickness change after extensive fatigue tests mean the pad resists permanent deformation or material degradation under millions of load cycles. This prevents the loss of crucial track geometry and elasticity, enhancing the durability and reducing the need for frequent maintenance. In sensitive areas like track-bridge joints, the pad’s ability to maintain its mechanical properties helps in alleviating structural stress concentration, safeguarding the larger infrastructure from premature fatigue.

Furthermore, the material scenario adaptation allows for optimal installation based on environmental demands. For typical track use, the natural rubber/neoprene series offers high elasticity and low heat build-up. For more exposed or challenging areas, the chloroprene rubber series provides essential oil-resistant and weather-resistant qualities, ensuring the pad remains effective even in humid-heat or chemically corrosive environments. This tailored durability ensures that the elastic rubber pad serves as a reliable component for track maintenance replacement components, enhancing overall track stability and extending the service life of the entire rail system.

NR Rubber Pad Providing Long-Term Fatigue Resistance for Heavy-Duty Equipment

The nr rubber pad is specifically formulated using the natural rubber series to provide exceptional long-term fatigue resistance and stable performance for heavy-duty equipment operating in high-impact, cyclical stress scenarios. Its effectiveness relies on the material's intrinsic high elasticity and low heat build-up, which are critical for sustaining dynamic loading over decades.

The fundamental engineering principle behind this fatigue resistance is dynamic performance optimization. Natural rubber possesses a high elastic modulus and superior resilience, meaning it can absorb and recover from significant high-frequency impact and deformation without permanent structural change. The stringent requirement for minimal stiffness change and thickness change after 3 million fatigue cycles is a guarantee of this long-term stability. This sustained performance is vital for applications like vibration damping supports for stamping machines or impact-resistant cushion layers for mining equipment, where equipment operation involves massive, repetitive shock loads.

The low heat build-up characteristic of the NR rubber pad is another key factor in resisting fatigue. Under continuous dynamic stress, rubber components generate internal heat. If this heat cannot dissipate quickly, it accelerates material aging, softening, and premature failure. The natural rubber series minimizes this thermal effect, helping to ensure the pad’s stiffness stability is maintained, which directly translates to a robust service life even in demanding environments.

Furthermore, the structural guarantee, boasting high tensile strength, ensures the pad maintains its physical integrity despite torsional or tensile stresses inherent in heavy machinery operation. This makes the elastic rubber pad an ideal industrial rubber isolation sheet for critical applications such as generator set foundation vibration isolation and port crane vibration damping pads. By efficiently absorbing and managing impact energy while remaining structurally sound, the NR rubber pad prevents performance degradation and ensures the reliable operation of heavy machinery over the long term.

Industrial Rubber Isolation Sheet Enhancing Safety and Durability of Machinery Foundations

The industrial rubber isolation sheet is a versatile and essential component designed to enhance the safety and durability of machinery foundations across various heavy industrial and construction engineering applications. Utilizing specialized material series, such as natural rubber and chloroprene rubber, these vibration reduction rubber pad solutions manage structural loads, mitigate vibration risks, and protect machinery from environmental degradation.

One key benefit is the enhanced durability guarantee provided to the foundation itself. By placing the elastic rubber backing plate between the heavy machinery (like stamping machines or air compressors) and the foundation, the isolation sheet acts as a resilient buffer. This reduces the transmission of dynamic impact forces into the concrete base, preventing structural fatigue and cracking in the foundation over time. This protection is critical for long-term installations such as generator set pedestals and in construction engineering applications like bridge bearings and building isolation layers.

Safety is significantly enhanced through dynamic performance optimization. The strict control over the dynamic-static stiffness ratio ensures the pad effectively absorbs and isolates vibrational energy. This is essential not only for protecting the foundation but also for stabilizing the machinery itself, reducing the risk of loosening components or operational instability caused by shock absorption and cyclic vibration. This isolation capability also contributes to a quieter working environment, improving occupational safety and comfort.

The industrial rubber isolation sheet is designed with material scenario adaptation to ensure suitability for diverse operational conditions. The chloroprene rubber (CR) series is particularly important for machinery exposed to lubricants, chemicals, or harsh outdoor environments, providing necessary oil-resistant and weather-resistant characteristics. This specialized resistance ensures the pad does not degrade or lose its vibration reduction properties when exposed to environmental media, maintaining its structural integrity and mechanical function for the entire service life. The ability to provide custom-developed solutions based on line load, environmental medium, and installation space underscores the sheet's role as a high-performance protective component for machinery foundations.
