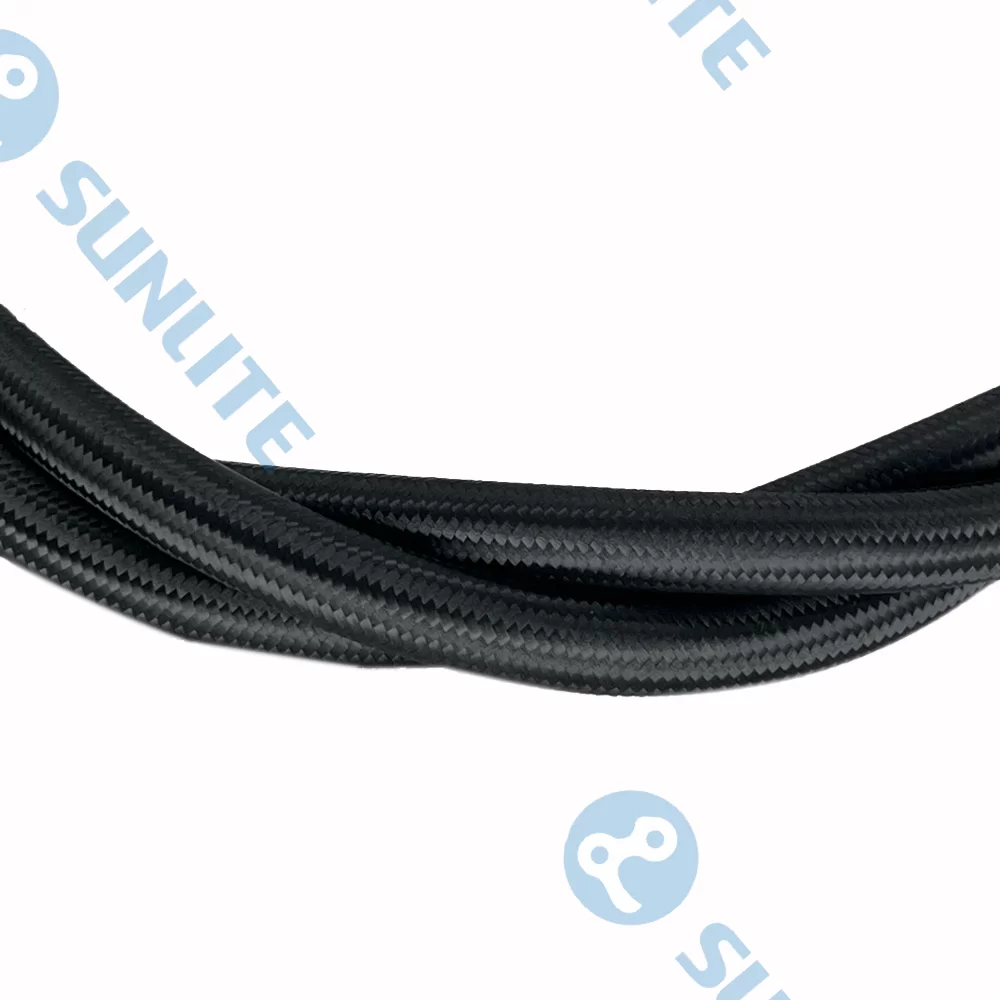

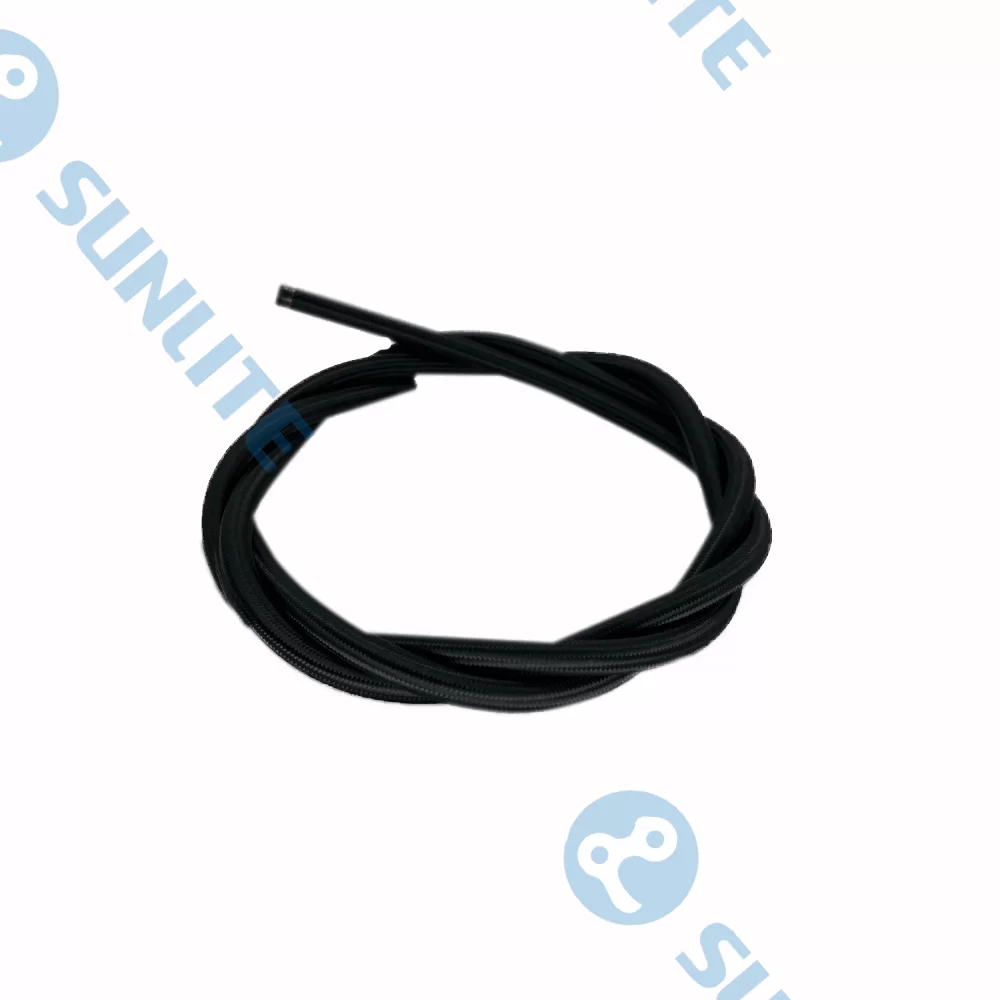

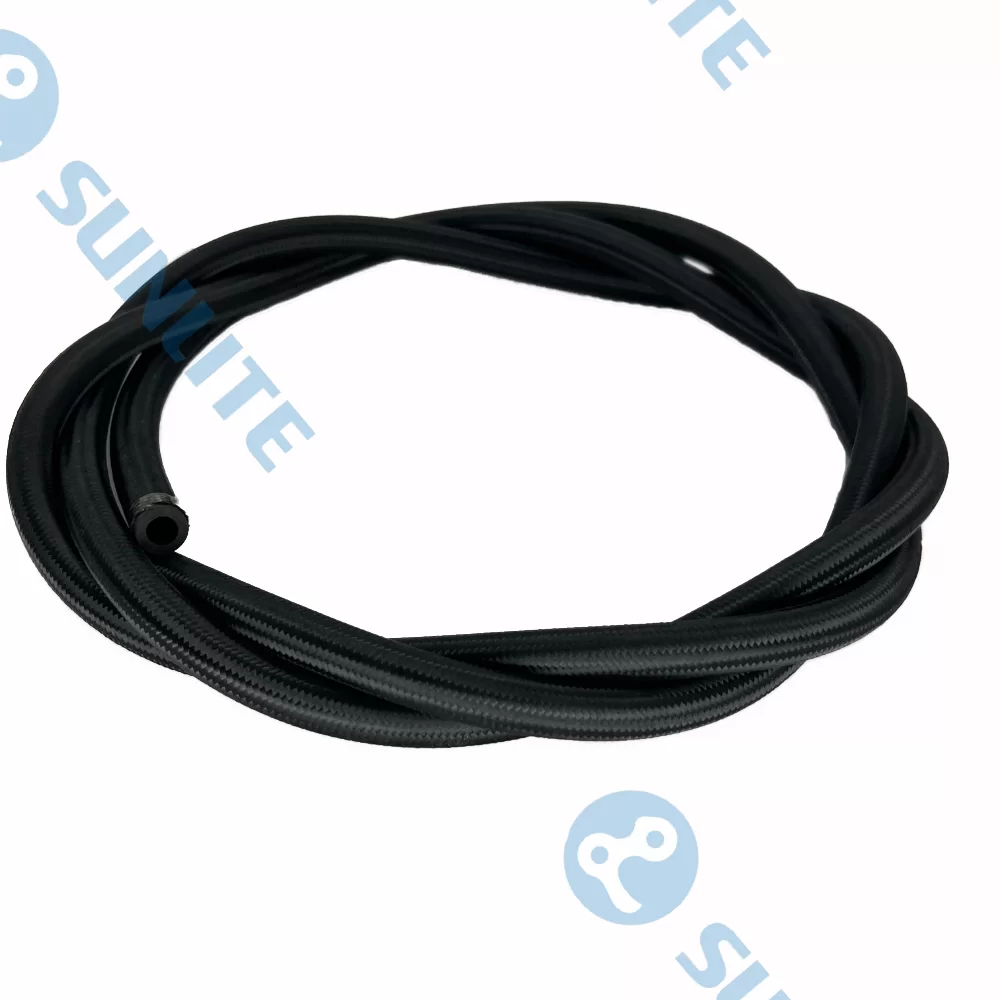

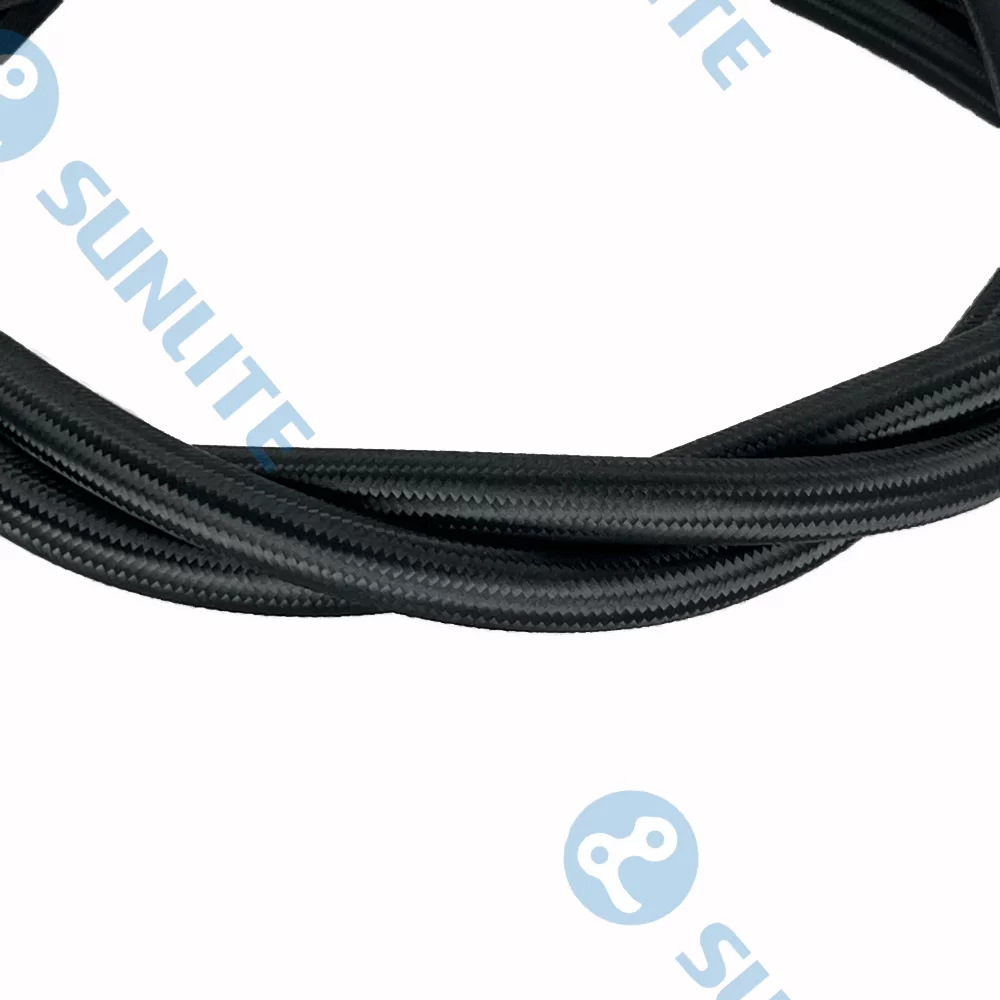

Halogen-Free Flame-Retardant Cable

APPLICATION SCENARIOS

1. Internal wiring of aerospace equipment to ensure safety and fire resistance

2. Cable laying in public transportation systems such as subways and tunnels

3. Safe wiring for power transmission in data centers and high-rise buildings

4. Electrical equipment connections in petrochemical industry and high-risk environments

Product Description

This product is an EPDM (Ethylene Propylene Diene Monomer) material specifically designed for cable sheaths and insulation layers, copolymerized from ethylene, propylene, and a small amount of diene. It features superior weather resistance, electrical insulation, and stability over a wide temperature range, and is widely used in medium-low to high voltage cable systems. It is particularly suitable for cable protection needs in harsh environments such as outdoor laying, overhead cables, wind power, rail transit, new energy, and other demanding scenarios.

PRODUCT FUNCTION

Excellent weather resistance: Resistant to UV and ozone aging for ≥1500 hours, suitable for high-altitude and high-UV radiation working conditions;

Superior electrical insulation: Volume resistivity ＞10¹⁵ Ω·cm, dielectric strength ≥20kV/mm (for ≤138kV class);

Flame-retardant and moisture-proof: Complies with UL94 V-0 rating, water absorption rate ＜0.5%, with no degradation in humid/chemical environments;

High and low temperature resistance: Long-term operating temperature ranges from -55℃ to 150℃, with short-term resistance to 250℃ thermal shock;

Stable mechanical properties: Tear strength ≥15kN/m, bending radius ≤6 times the cable diameter, ensuring construction safety and laying flexibility.

PERFORMANCE INDEX

Base material: EPDM (Ethylene Propylene Diene Monomer)

Weather resistance: ≥1500h (UV/ozone corrosion resistance)

Operating temperature: -55℃~150℃ (long-term) / 250℃ (short-term)

Electrical insulation: Volume resistivity ＞10¹⁵Ω·cm

Dielectric strength: ≥20kV/mm (≤138kV in medium-low voltage environments)

Mechanical strength: Tear resistance ≥15kN/m; Bending radius ≤6×cable diameter

Flame retardant rating: UL94 V-0 certified

Moisture resistance: Water absorption rate ＜0.5%

APPLICATION AREA

Medium-low and high voltage cable sheaths: Insulation and outer sheath materials for ≤138kV class cables

New energy field: Cable sheaths for wind power and photovoltaic systems, ensuring stable operation in UV-resistant and humid-heat environments

Rail transit/subway projects: Meeting requirements for weather resistance, flame retardancy and long-life safety

Heavy industry and outdoor power grids: Adapting to environments with acid rain, salt spray and chemical corrosion

Marine and port cables: Moisture-proof, mildew-proof and corrosion-resistant, enhancing laying and operation reliability
