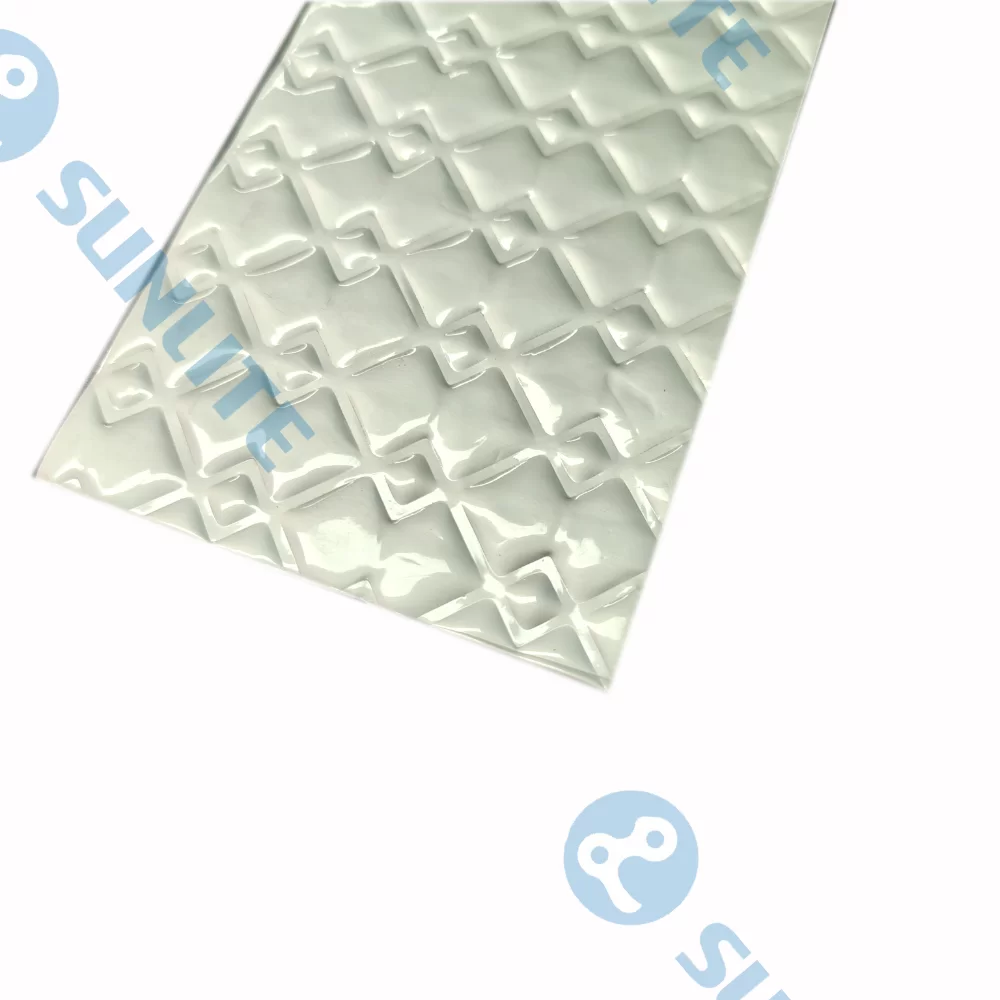

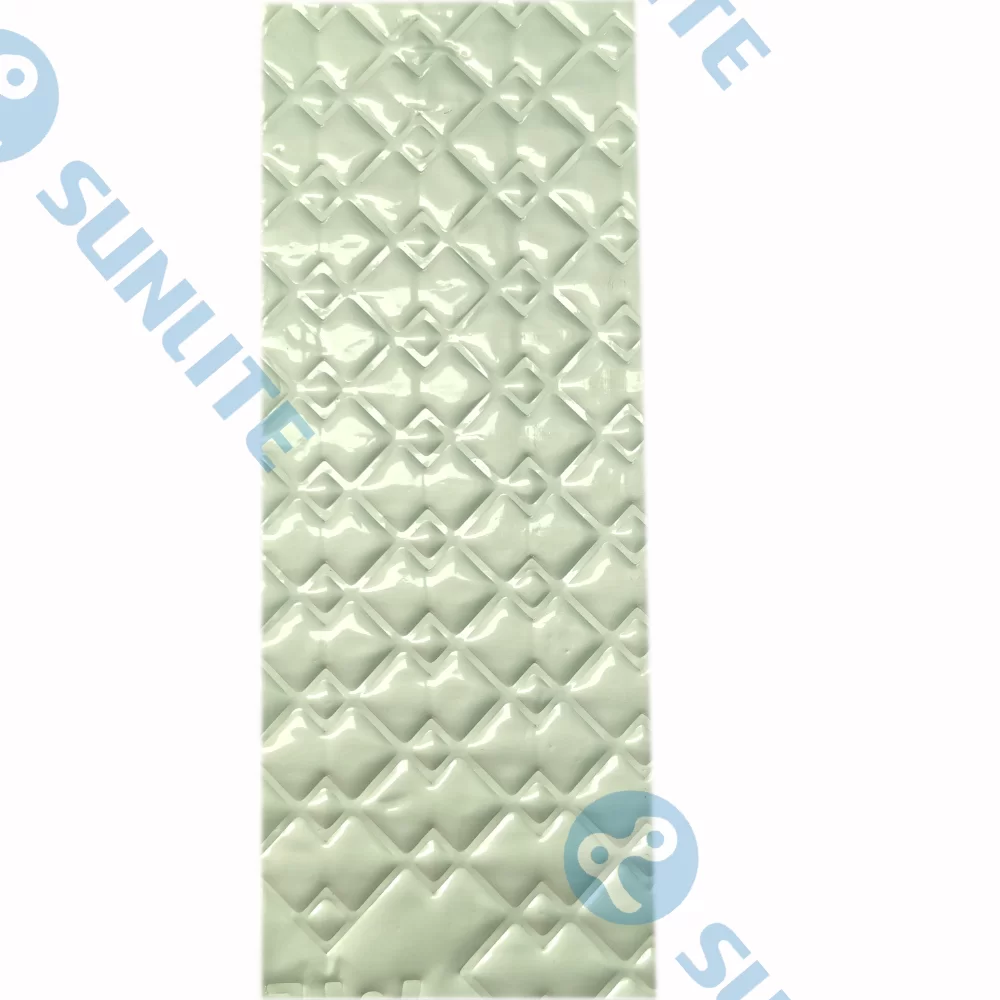

Lightweight Vibration-Damping Plate

APPLICATION SCENARIOS

1. Inner layer of car doors, providing vibration damping while reducing the overall vehicle weight

2. Roof and pillar areas, suppressing resonance and improving riding quietness

3. Tailgates and trunk lids, reducing vibration to prevent abnormal noise

4. Battery compartment covers of electric vehicles, providing lightweight sound insulation protection

Product Description

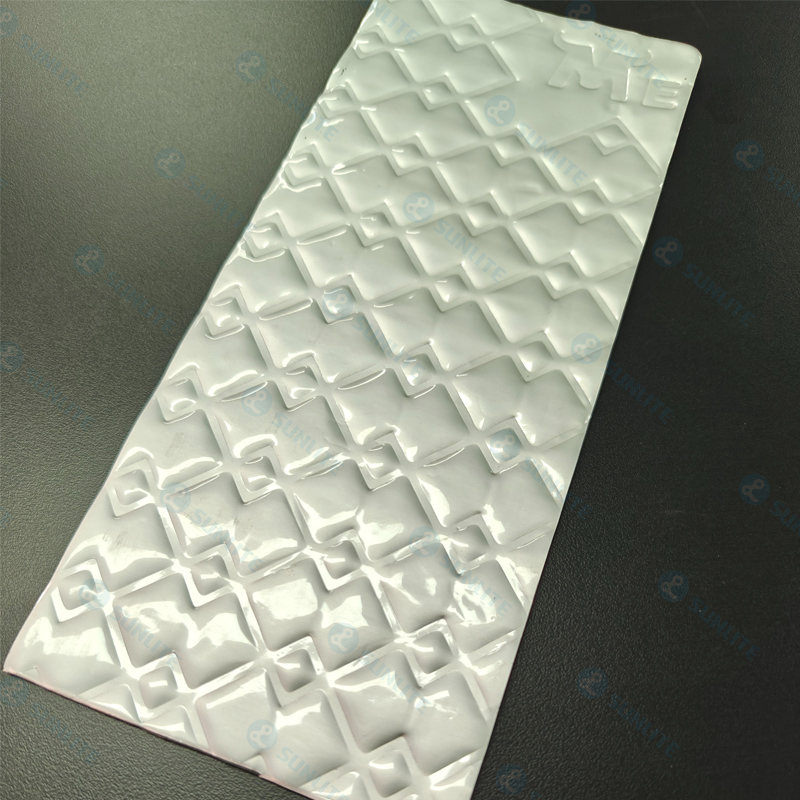

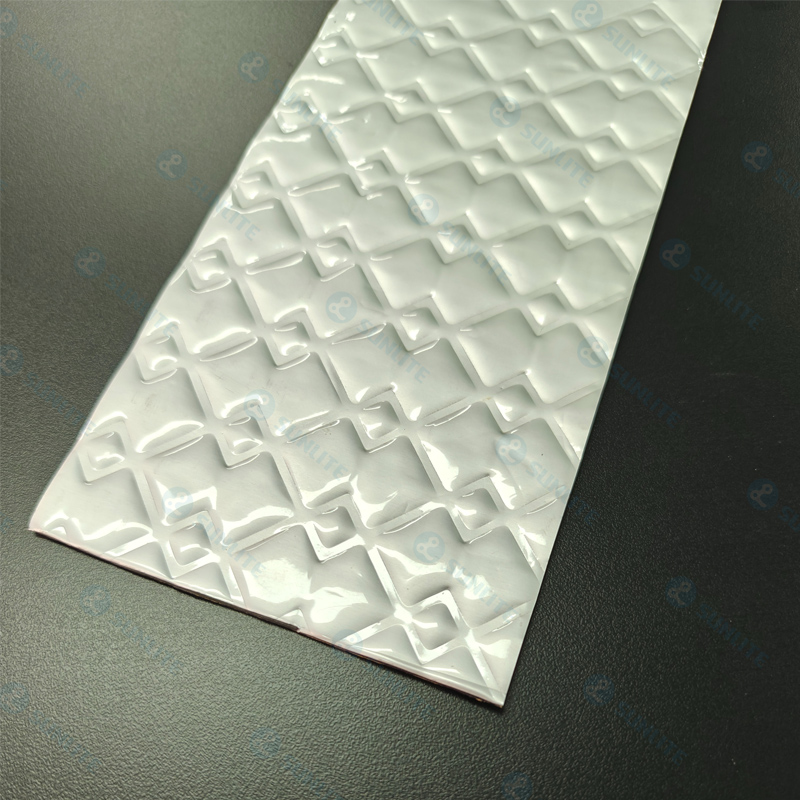

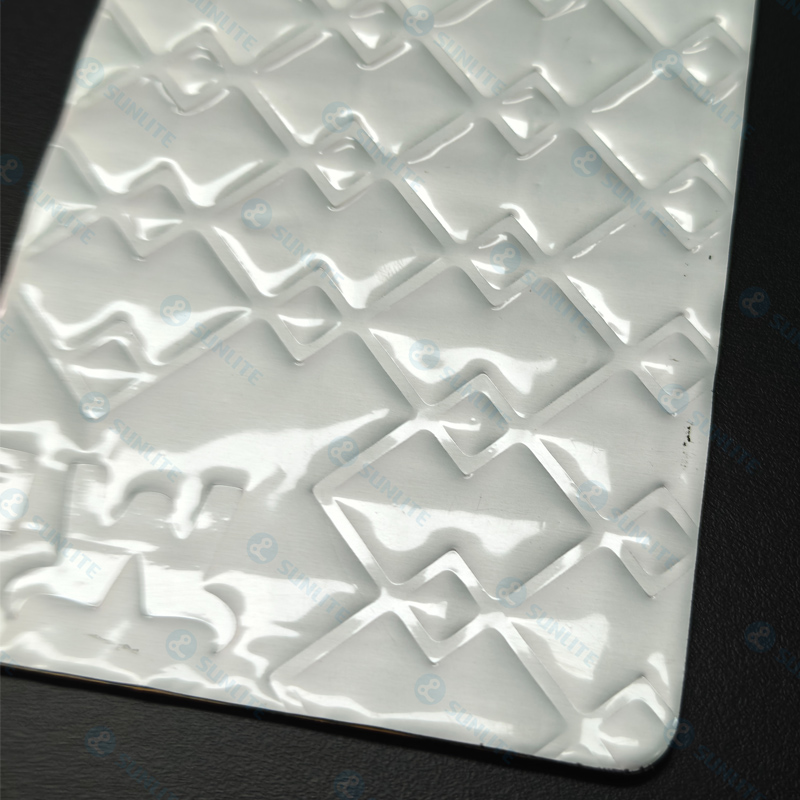

This series of automotive vibration damping sheets (also known as damping pads or shock absorbing plates) are made of butyl rubber and aluminum foil composite material, with a composite loss factor of ≥0.2 and a density of ≤1.0g/cm³, combining lightweight properties with good vibration absorption and noise reduction performance. The product is widely applicable to vibration-prone parts such as car doors, chassis, and trunks, effectively suppressing sheet metal vibration. It has advantages including anti-aging, moisture resistance, and being not easy to fall off. With simple construction, it adapts to various vehicle structures, helping to comprehensively improve the vehicle's NVH performance and driving/riding comfort.

PRODUCT FUNCTION

Dual-effect design for vibration absorption and noise reduction: Utilizes the butyl rubber structure to absorb and attenuate vibration energy, reducing resonance noise;

Lightweight damping solution: Low-density design (≤1.0g/cm³) reduces overall vehicle load, suitable for weight-sensitive new energy vehicles or sports cars;

Durable and stable: Anti-aging, moisture-proof, with no edge warping or hardening after construction, applicable to long-term use scenarios;

Convenient construction experience: Equipped with release paper backed adhesive design, directly adheres to metal sheet metal, supporting free cutting and fitting on complex curved surfaces.

PERFORMANCE INDEX

Composite loss factor: ≥0.2 (with basic to moderate vibration absorption capability)

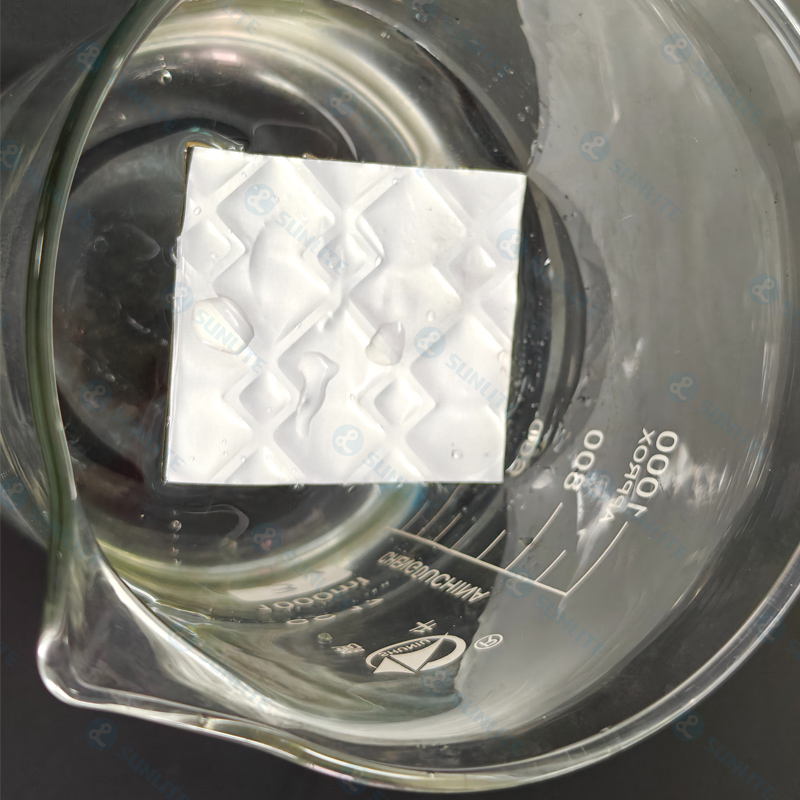

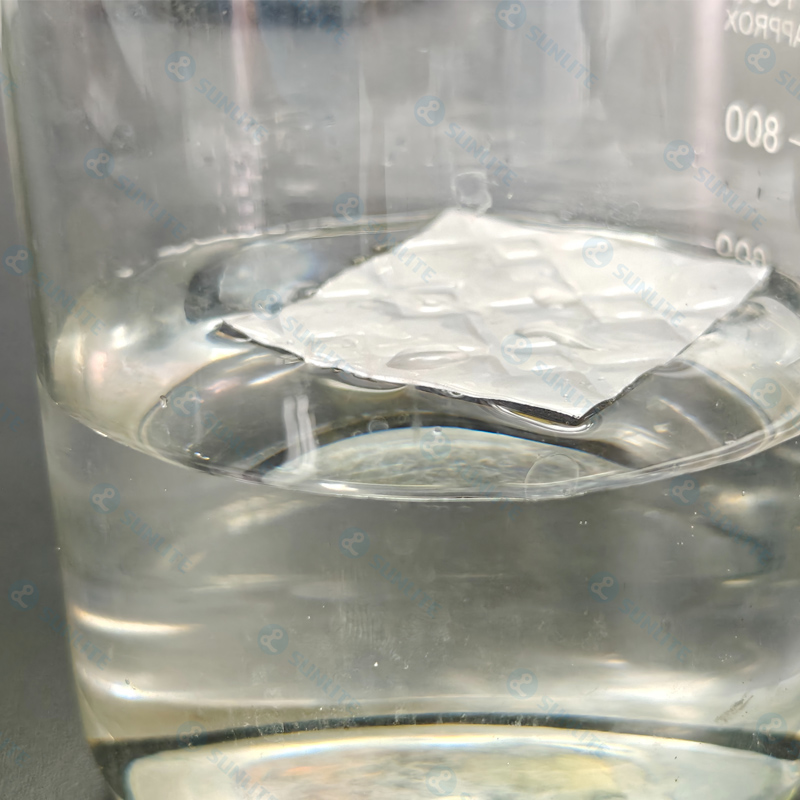

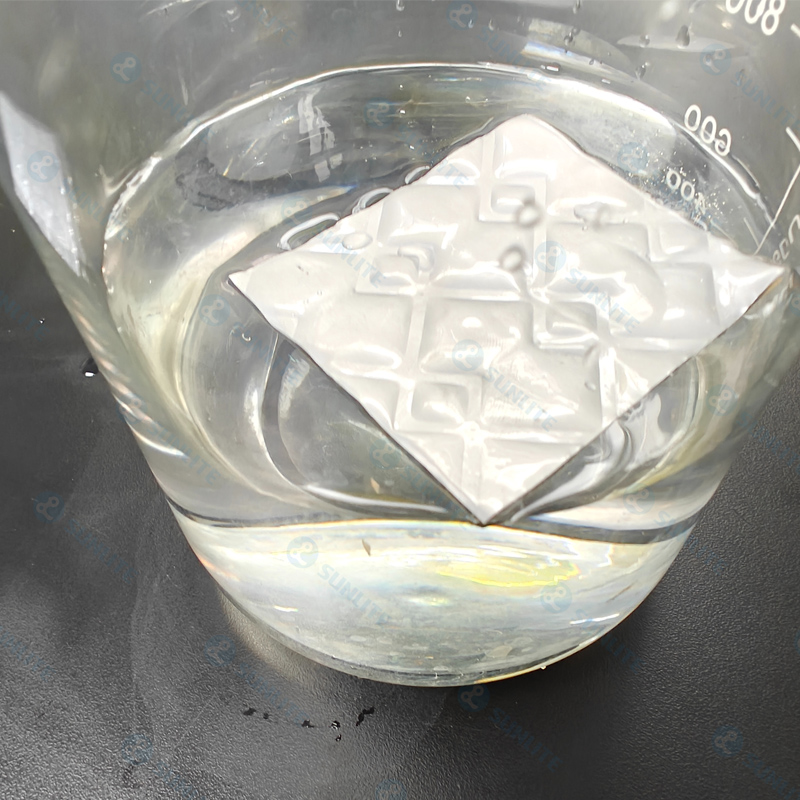

Density: ≤1.0 g/cm³ (lightweight design, reducing overall vehicle load)

Applicable temperature range: -40℃ ~ 80℃

Recommended construction temperature: 10℃ ~ 40℃

Adhesion performance: Adapts to vehicle body curved surfaces, adhering tightly without hollowing

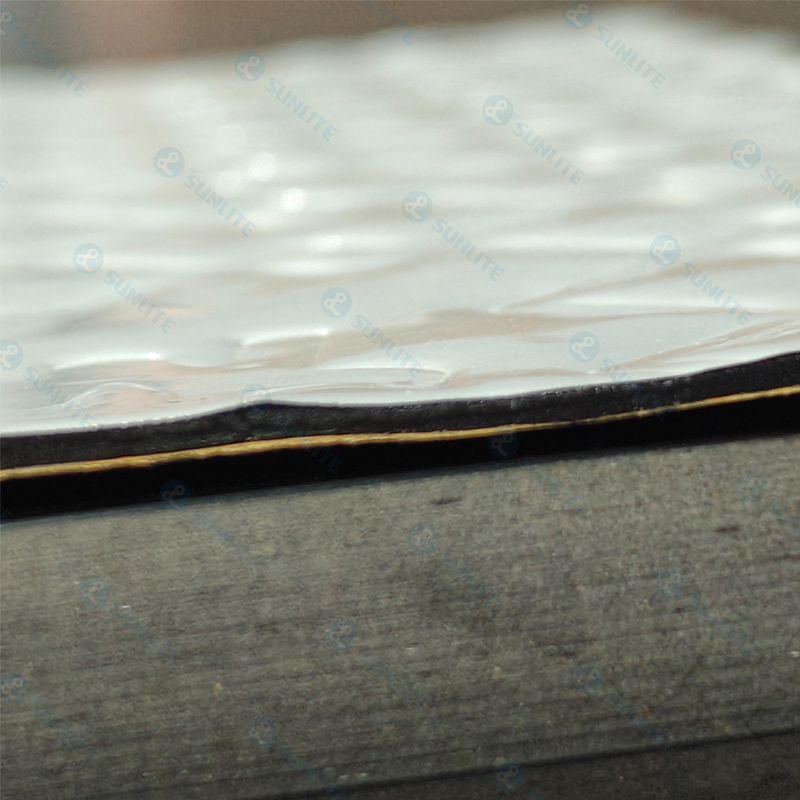

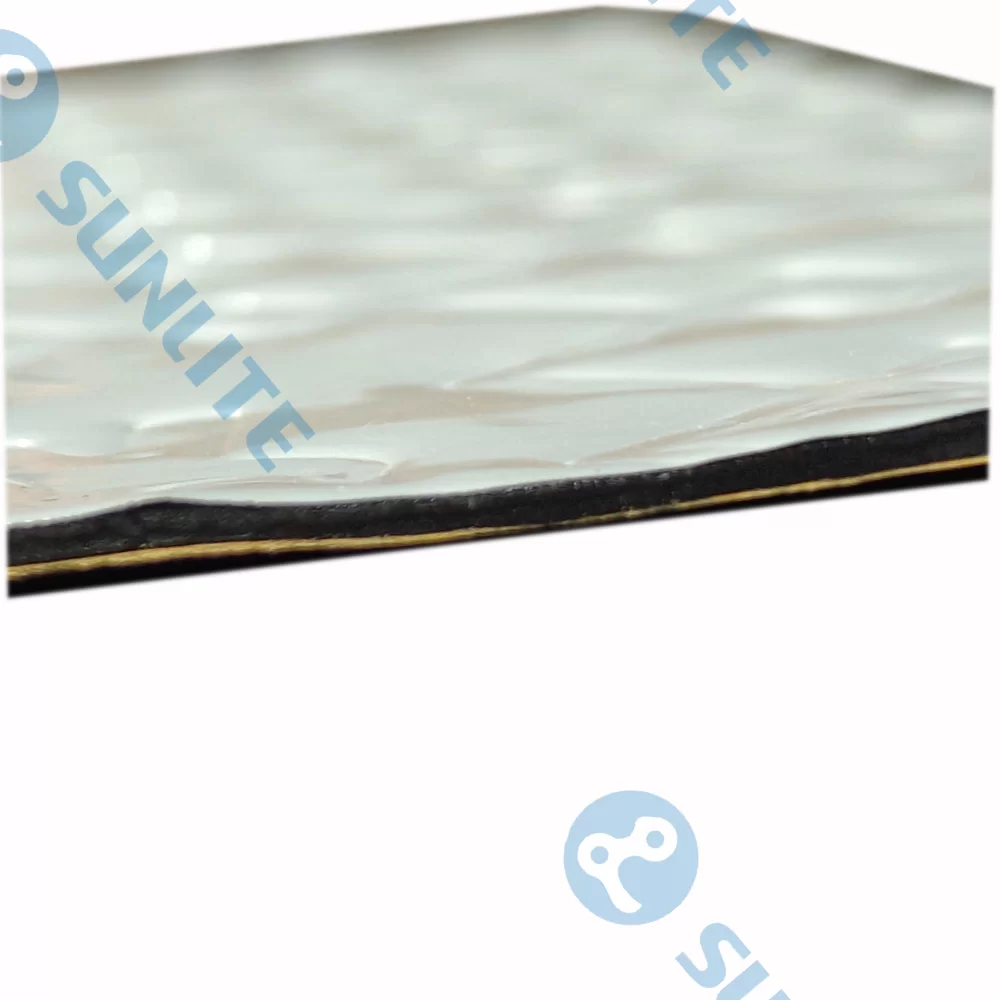

Structural composition: Butyl rubber damping layer + aluminum foil reflective layer + pressure-sensitive adhesive backing + release paper

Environmental compliance: Can provide certified versions compliant with environmental standards such as RoHS and REACH

APPLICATION AREA

This product is suitable for sheet metal vibration suppression and interior noise control of various automotive structural components. Typical applications include:

Inside door panels: Reduce door panel resonance and external noise penetration;

Trunk area: Suppress rear structural resonance and reduce low-frequency echo;

Chassis and floor: Absorb vibrations from the bottom during driving, improving driving quietness;

Wheel arches or engine compartment partitions: Used in conjunction with sound insulation cotton to block wind noise and mechanical noise;

Lightweight noise reduction parts of new energy vehicles: Meet special application scenarios sensitive to weight but requiring noise reduction.

Lightweight Vibration-Damping Plate for Industrial and Electronics Applications

The Lightweight Vibration-Damping Plate is engineered to provide superior vibration control while minimizing weight, making it an ideal solution for modern industrial machinery, electronics, and precision equipment. By combining advanced damping materials with a lightweight design, this plate effectively reduces mechanical resonance, shock, and vibration-induced noise without adding unnecessary bulk.

Constructed from high-performance polymers, viscoelastic composites, and reinforced materials, the Lightweight Vibration-Damping Plate delivers reliable damping across a wide range of frequencies. Its multi-layer structure absorbs and dissipates vibrational energy, preventing it from transferring to sensitive components such as electronic circuit boards, battery modules, or precision mechanical assemblies. This ensures enhanced operational stability and improved equipment longevity.

One of the main advantages of this lightweight design is its adaptability. It can be installed in industrial machinery, automotive components, electric tools, household appliances, and even aerospace applications where reducing weight is critical. The plate maintains high structural integrity and damping efficiency despite its low mass, offering optimal performance without compromising safety or reliability.

Durability is another key feature. The Lightweight Vibration-Damping Plate is resistant to temperature variations, humidity, and chemical exposure, making it suitable for demanding industrial environments and outdoor installations. Its material composition prevents deformation and maintains consistent vibration-damping performance over long-term use. Additionally, its non-toxic and environmentally friendly materials make it compliant with global safety and environmental regulations.

In addition to vibration suppression, the plate contributes to noise reduction, enhanced equipment precision, and improved user comfort. Reduced resonance minimizes wear on mechanical parts, decreases maintenance costs, and extends the service life of critical components. For applications such as automated machinery, battery-powered devices, and consumer electronics, the Lightweight Vibration-Damping Plate provides a reliable solution to prevent malfunction, reduce operational noise, and ensure consistent performance.

Overall, the Lightweight Vibration-Damping Plate combines high-performance damping, long-term durability, and lightweight design to meet the growing demands of modern industrial, automotive, and electronics applications. Its versatility, resilience, and efficiency make it a preferred choice for manufacturers and OEMs seeking reliable vibration-control solutions.

High-Performance Lightweight Vibration-Damping Plate for Precision Equipment

The High-Performance Lightweight Vibration-Damping Plate is designed to provide efficient vibration control while reducing overall weight, offering a practical solution for precision equipment, industrial machinery, and electronic devices. Its advanced viscoelastic composite materials and engineered design ensure optimal energy absorption, minimizing mechanical resonance and vibration-induced failures.

The plate’s lightweight yet robust construction makes it suitable for applications that demand both performance and portability. Unlike traditional heavy vibration-damping solutions, this plate reduces system weight without compromising damping effectiveness. It is ideal for industries such as automotive, aerospace, robotics, household appliances, and high-precision instrumentation, where weight reduction is critical for efficiency and performance.

The Lightweight Vibration-Damping Plate features a multi-layer design with high-damping elastomers and reinforced polymer layers that effectively absorb vibration energy. By converting mechanical vibrations into heat energy, the plate prevents vibration from affecting sensitive components such as motor assemblies, circuit boards, battery packs, or measurement devices. This reduces operational noise, prevents premature wear, and improves the accuracy and reliability of equipment.

Durability and environmental resistance are key highlights. The plate is resistant to heat, moisture, UV exposure, and common industrial chemicals, making it suitable for demanding environments and long-term use. Its lightweight design does not compromise structural stability, ensuring consistent damping performance even under high-frequency vibration and continuous operational stress.

Installing the Lightweight Vibration-Damping Plate is straightforward, allowing manufacturers and engineers to integrate it seamlessly into existing equipment designs. By reducing vibration and resonance, it helps extend component life, minimize maintenance costs, and enhance user comfort. Its compact and versatile design allows use in confined spaces and in combination with other vibration-control solutions for enhanced performance.

In conclusion, the High-Performance Lightweight Vibration-Damping Plate provides a reliable, efficient, and lightweight solution for vibration isolation. Its combination of multi-layer damping technology, durability, and weight-saving design makes it a preferred choice for OEMs, electronics manufacturers, and industrial engineers seeking to improve equipment reliability, reduce noise, and extend component lifespan.
