High-Damping Vibration Plate ‌

APPLICATION SCENARIOS

1. Inner layer of door sheet metal, suppressing resonance and enhancing audio sound effect

2. Firewall area of the engine compartment, reducing engine noise transmission

3. Connection parts between floor and chassis, lowering low-frequency vibration and road noise

4. Rear wheel arches and trunk bottom, absorbing vibration to improve riding quietness

Product Description

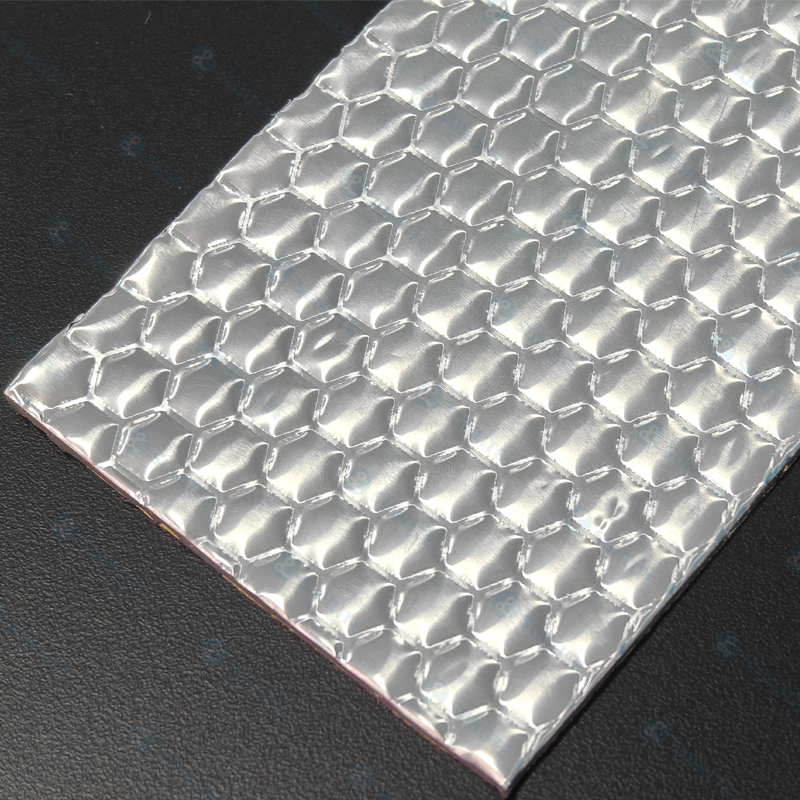

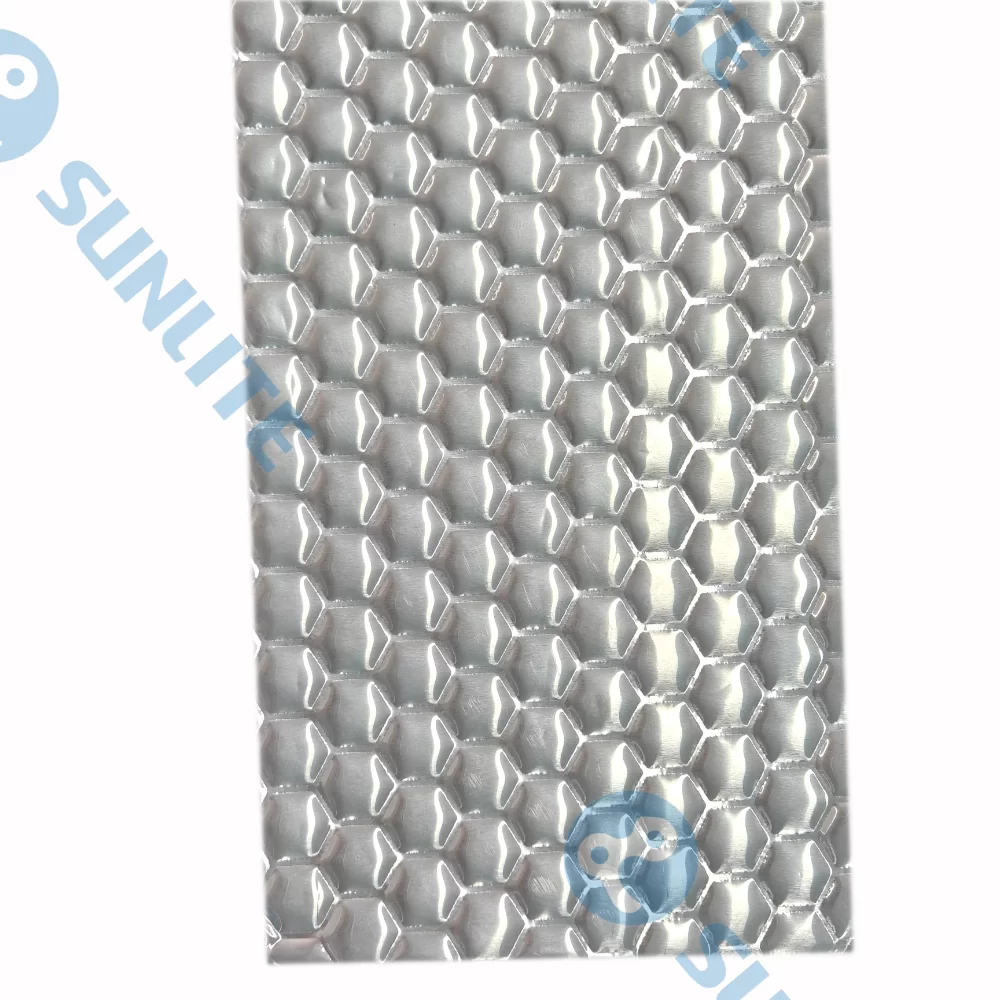

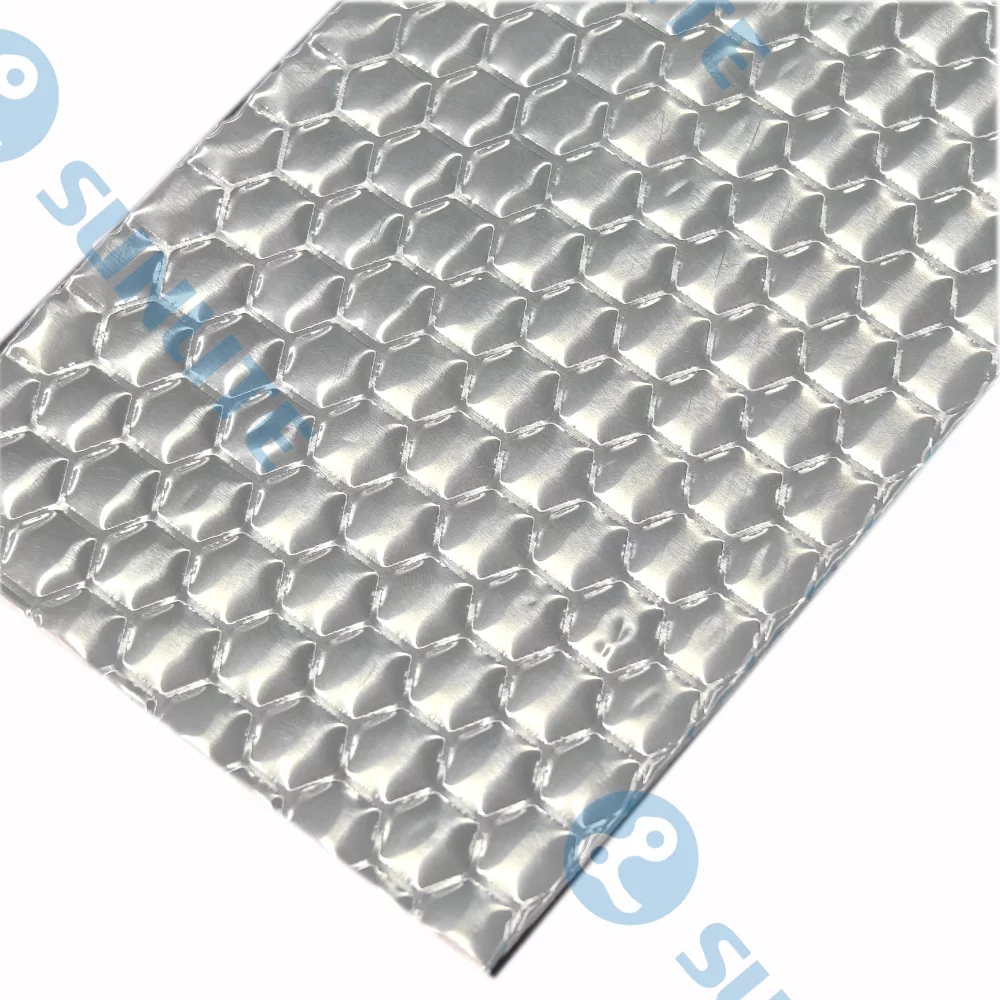

This series of automotive vibration damping sheets (also known as damping pads or shock absorbing plates) are made of butyl rubber and aluminum foil composite material, featuring excellent vibration absorption and noise suppression capabilities. They are suitable for sheet metal resonance parts such as car doors, chassis, and trunks. With a composite loss factor as high as **≥0.25**, the product boasts excellent vibration absorption performance and can work with sound insulation cotton and other materials to synergistically reduce the overall vehicle noise level. It has characteristics of anti-aging, moisture resistance, anti-shedding, and non-hardening. Easy to install, it supports free cutting and curved surface fitting, significantly improving the overall vehicle NVH performance and driving comfort.

PRODUCT FUNCTION

High-efficiency damping and vibration reduction: High-loss butyl rubber absorbs and disperses resonance energy, effectively reducing body sheet metal vibration;

Multi-layer noise reduction synergy: Used in combination with sound insulation cotton and sound-absorbing materials, it comprehensively controls road noise, wind noise, and engine noise;

Convenient and flexible construction: Featuring a back adhesive design with release paper, it can be directly pasted on clean metal surfaces, allowing free cutting and adapting to any vehicle structure;

Long-lasting adherence without falling off: With high flexibility, it is heat and moisture resistant without deformation, and remains non-hardening and non-shedding during long-term use.

PERFORMANCE INDEX

Composite loss factor: ≥0.25 (with excellent vibration energy dissipation capability)

Operating temperature range: -40℃ ~ 80℃

Recommended construction temperature: 10℃ ~ 40℃

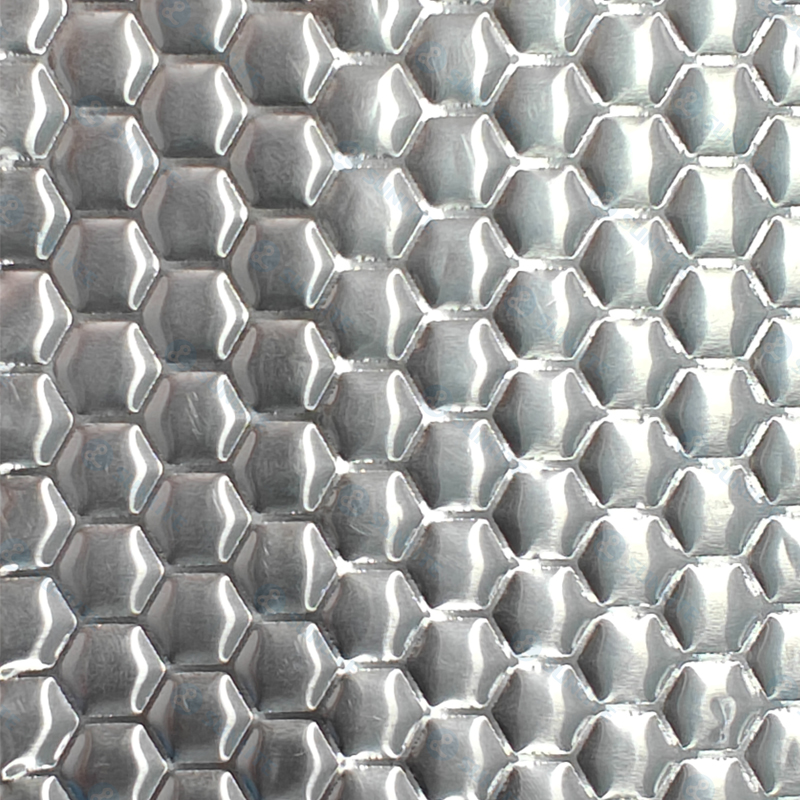

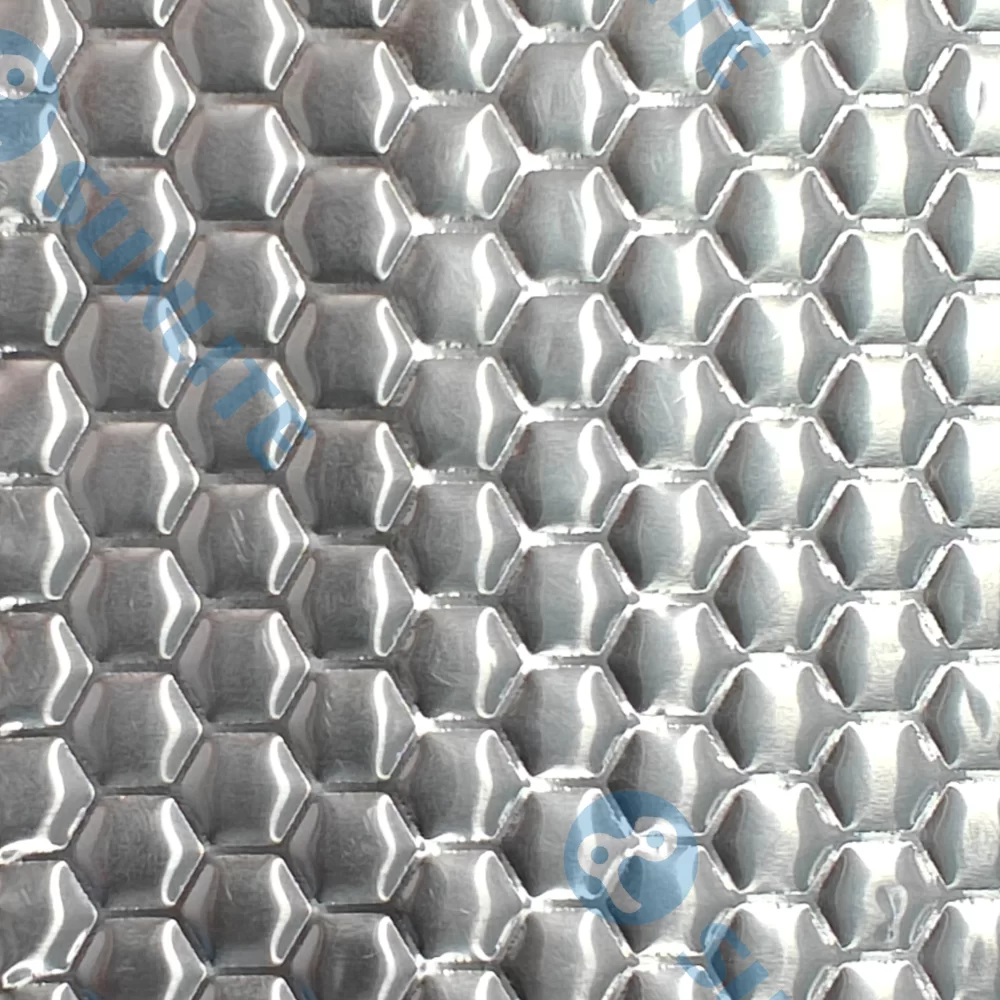

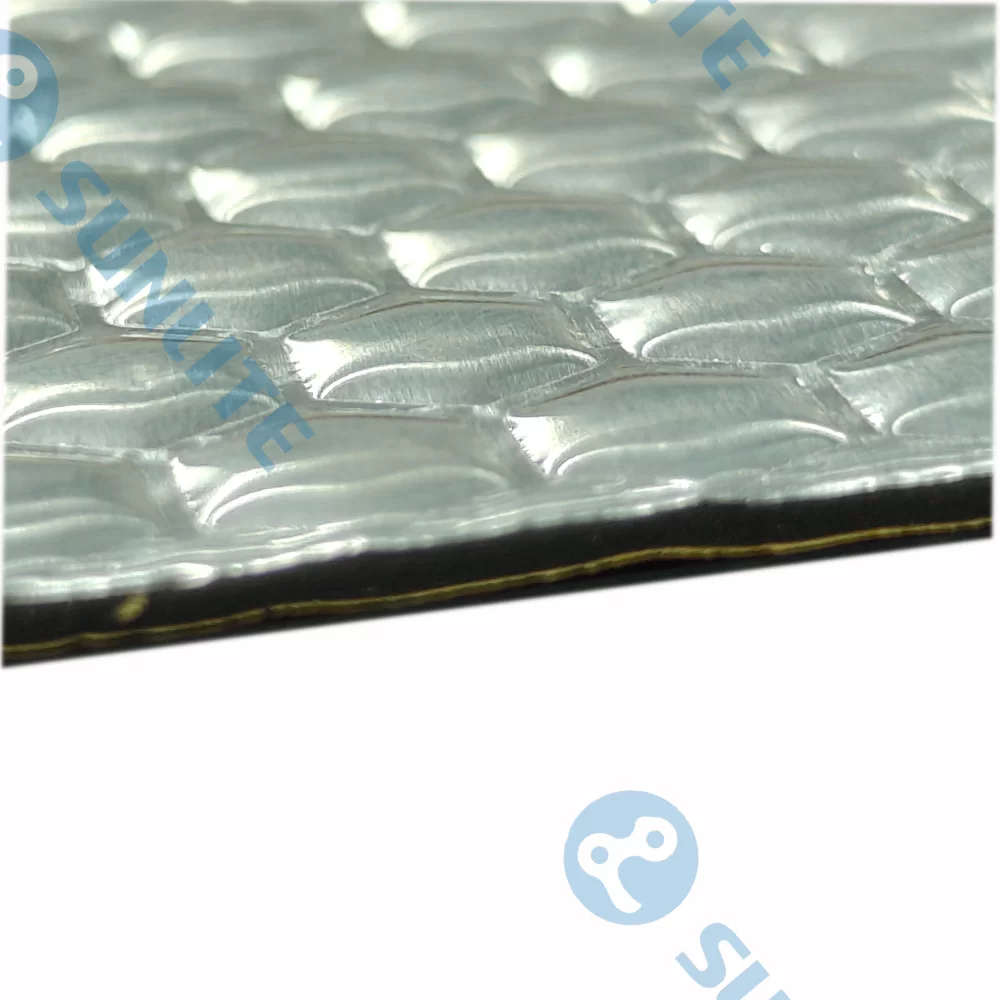

Structural composition: Polymer butyl rubber base material + aluminum foil reflective layer + back adhesive + release paper

Adhesion performance: Can closely adhere to sheet metal curved surfaces, with no bubbles or bulges

Long-term stability: Moisture-proof and anti-aging design, maintaining damping performance for more than 8 years

Environmental requirements: Customizable versions compliant with environmental regulations such as RoHS2.0, REACH, PAHs, TSCA, etc.

APPLICATION AREA

Suitable for noise reduction, vibration suppression, and enhancing NVH performance in various vehicle structural parts. Typical application scenarios include:

Inner door panels: Reduce door panel vibration and road noise transmission;

Floor/chassis: Lower low-frequency resonance and vibration propagation during driving;

Trunk and wheel hub areas: Control rear sheet metal resonance and gravel impact noise;

Engine compartment and front bulkhead: Reduce engine vibration transmission and noise leakage;

Roof or side wall structures: Optimize overall vehicle quiet performance and improve driving experience.

High-Damping Vibration Plate for Industrial and Precision Equipment

The High-Damping Vibration Plate is a premium solution designed to reduce mechanical vibration, enhance equipment stability, and protect sensitive components across industrial and precision applications. Engineered with advanced high-damping materials, this plate provides exceptional energy absorption, effectively isolating vibrations and minimizing resonance in machinery, electronics, and battery-powered devices.

Constructed from viscoelastic polymers, reinforced composites, and multi-layer damping materials, the High-Damping Vibration Plate converts mechanical energy into heat, reducing the transmission of vibrations to nearby equipment or structural components. Its high-damping performance ensures that sensitive parts such as circuit boards, motor assemblies, and precision instruments remain stable even under high-frequency or heavy-duty operational conditions.

One of the key advantages of the high-damping design is its ability to maintain consistent performance under prolonged vibration exposure. The plate’s engineered structure distributes stress evenly, preventing localized deformation, reducing component fatigue, and extending equipment service life. Its multi-layer construction combines flexibility with structural integrity, delivering both durability and optimal damping efficiency.

Durability and environmental resistance are also critical. The High-Damping Vibration Plate is resistant to heat, moisture, UV exposure, and chemical contaminants, making it suitable for demanding industrial, automotive, and outdoor applications. Even in extreme temperatures or harsh environments, the plate maintains its high-damping properties without cracking, softening, or losing elasticity.

In addition to vibration isolation, this plate contributes to noise reduction, enhanced operational precision, and improved equipment longevity. By lowering resonance, it helps minimize mechanical wear, reduce maintenance costs, and protect sensitive devices in applications ranging from CNC machinery to consumer electronics.

Overall, the High-Damping Vibration Plate is an essential component for manufacturers and engineers seeking reliable, long-lasting, and high-performance vibration control. Its combination of advanced damping materials, durability, and versatility makes it a preferred choice for OEMs, industrial machinery, and precision equipment applications.

High-Performance High-Damping Vibration Plate for Machinery and Electronics

The High-Performance High-Damping Vibration Plate is designed to deliver superior vibration isolation and energy absorption in a wide range of industrial, automotive, and electronic applications. Its high-damping materials and multi-layer construction provide efficient vibration suppression, ensuring equipment stability and precision even in demanding environments.

The plate’s viscoelastic polymer layers and reinforced composite structure convert mechanical vibrations into heat energy, reducing the transmission of vibrational forces to critical components. This makes the High-Damping Vibration Plate ideal for protecting electronic modules, battery packs, motor housings, and precision mechanical systems from vibration-induced damage and operational inaccuracies.

A major benefit of the high-damping design is its ability to handle both high-frequency vibrations and heavy-duty loads. Its multi-layered construction provides uniform stress distribution, preventing deformation, extending component life, and maintaining consistent damping performance over long-term use. This ensures that sensitive machinery and devices operate reliably under continuous dynamic stress.

The High-Damping Vibration Plate is highly durable and environmentally resistant. It withstands heat, moisture, chemical exposure, and UV radiation, making it suitable for industrial plants, automotive systems, outdoor installations, and high-precision electronics. Its robust design ensures that damping efficiency remains stable even under extreme conditions.

In addition to protecting equipment, the plate reduces operational noise, improves precision, and minimizes wear on mechanical components. Applications include CNC machinery, industrial automation, consumer electronics, automotive electronics, and renewable energy systems. By reducing vibration and resonance, the High-Damping Vibration Plate improves equipment efficiency, extends lifespan, and enhances user comfort.

In conclusion, the High-Performance High-Damping Vibration Plate combines superior damping materials, structural durability, and long-lasting performance to deliver reliable vibration control. It is an essential solution for manufacturers and engineers seeking to protect sensitive equipment, reduce noise, and enhance operational precision.
