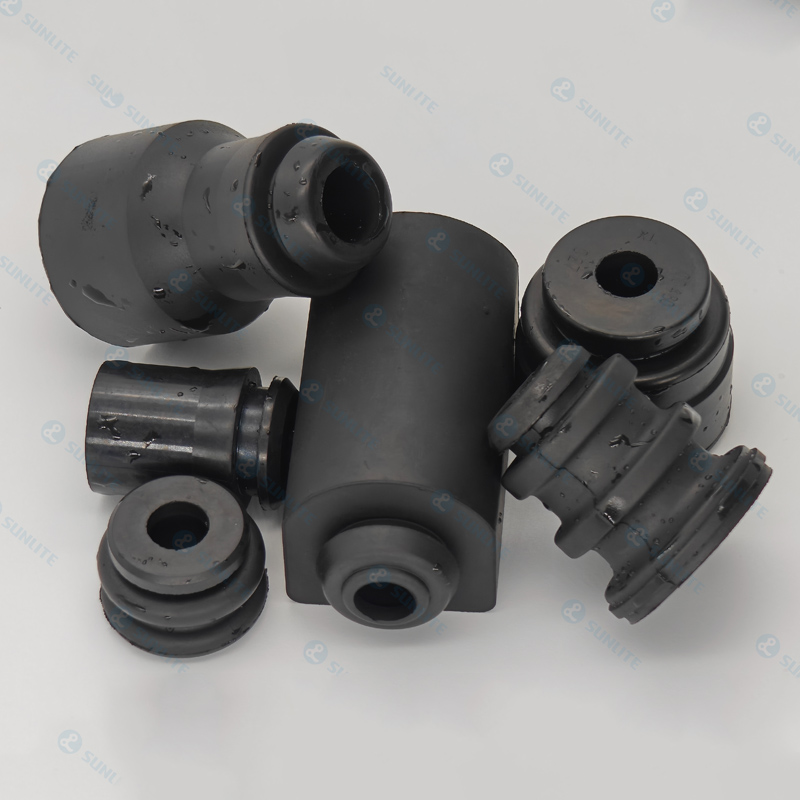

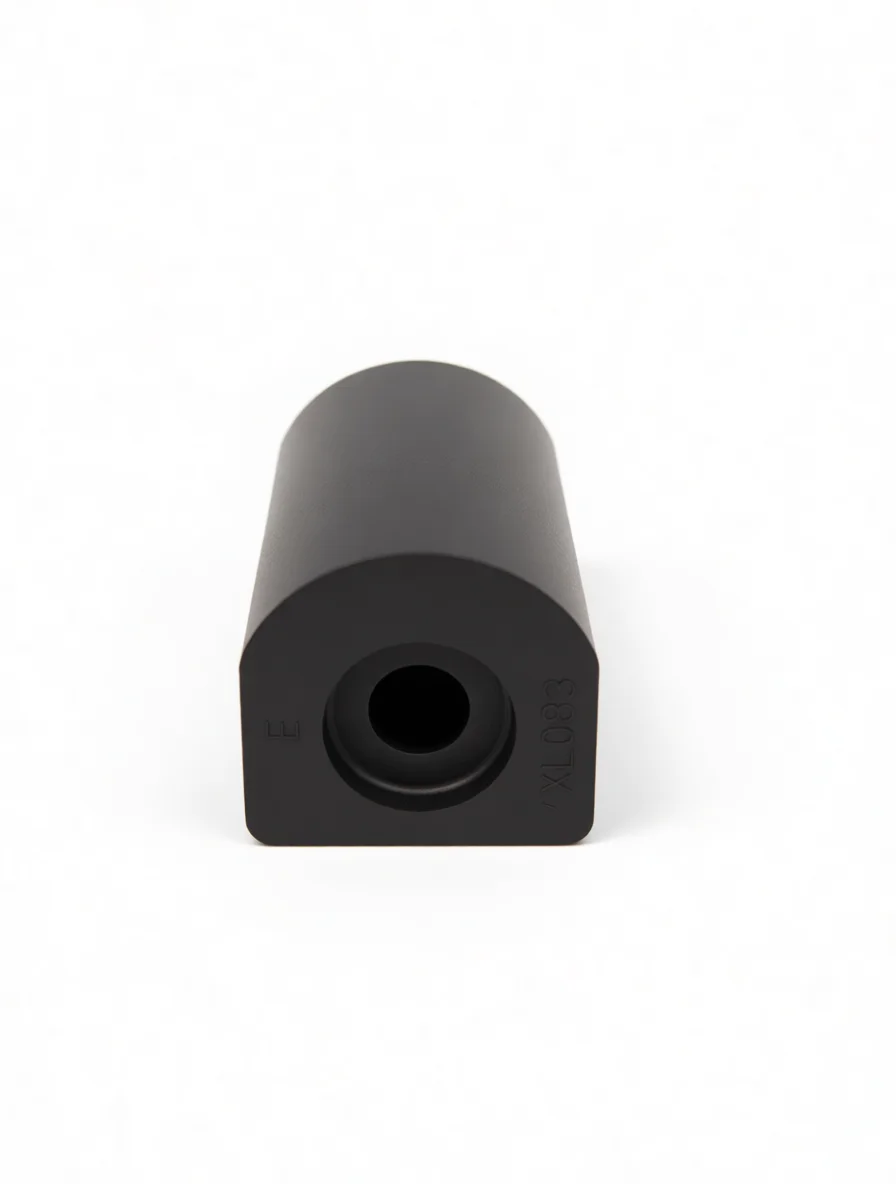

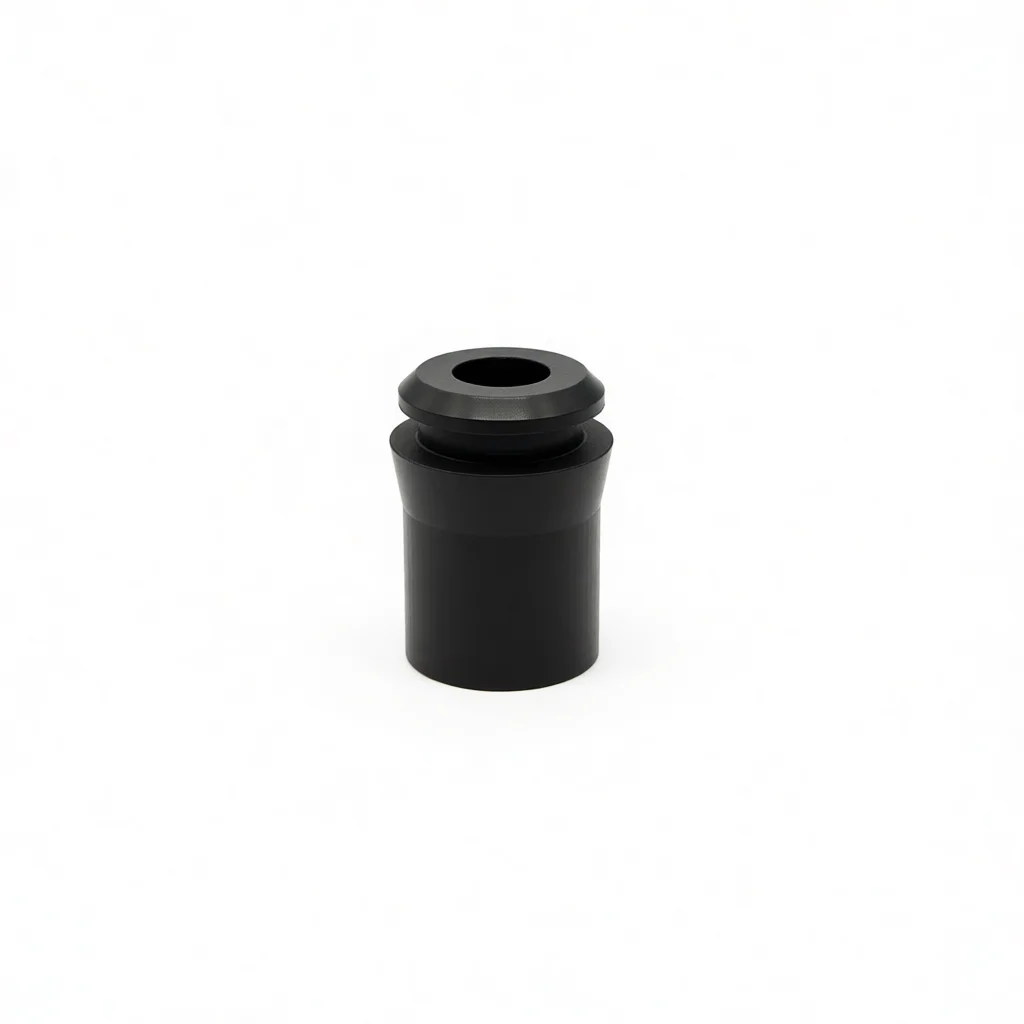

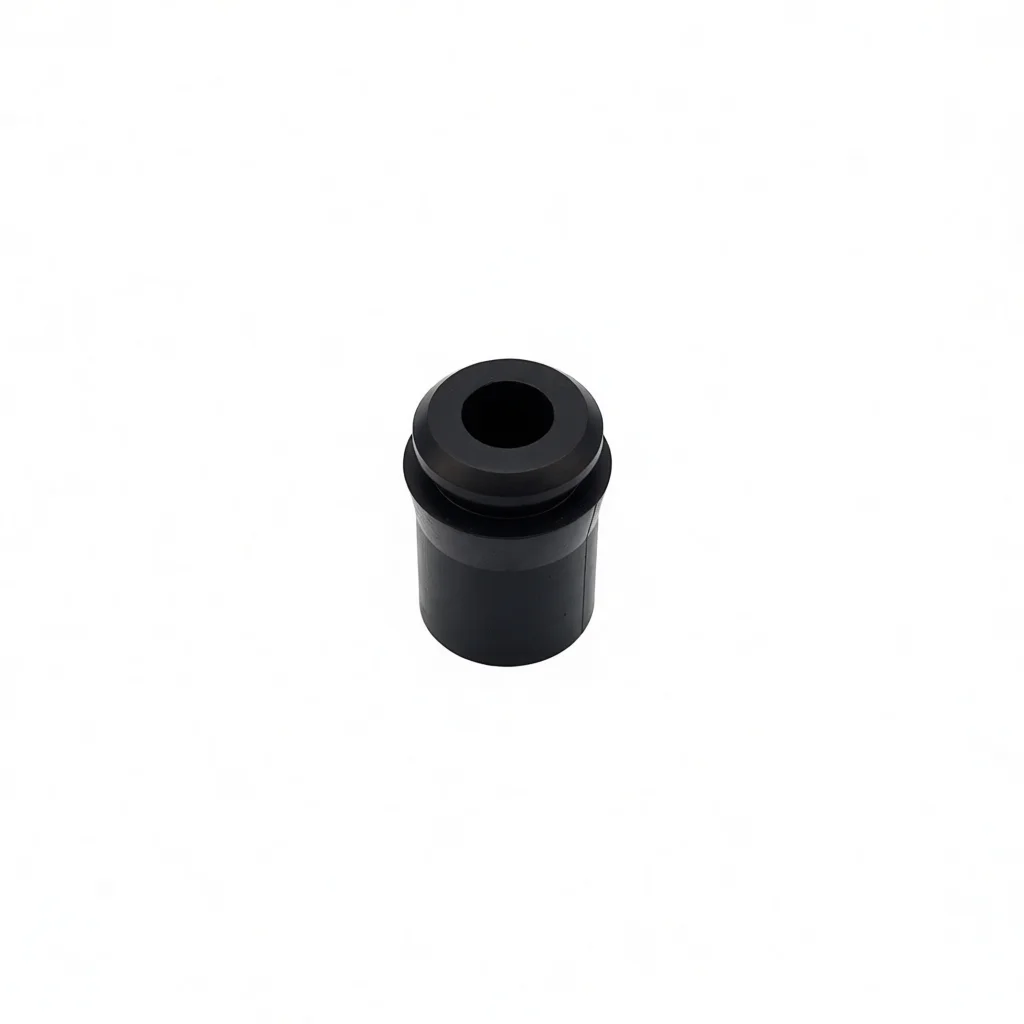

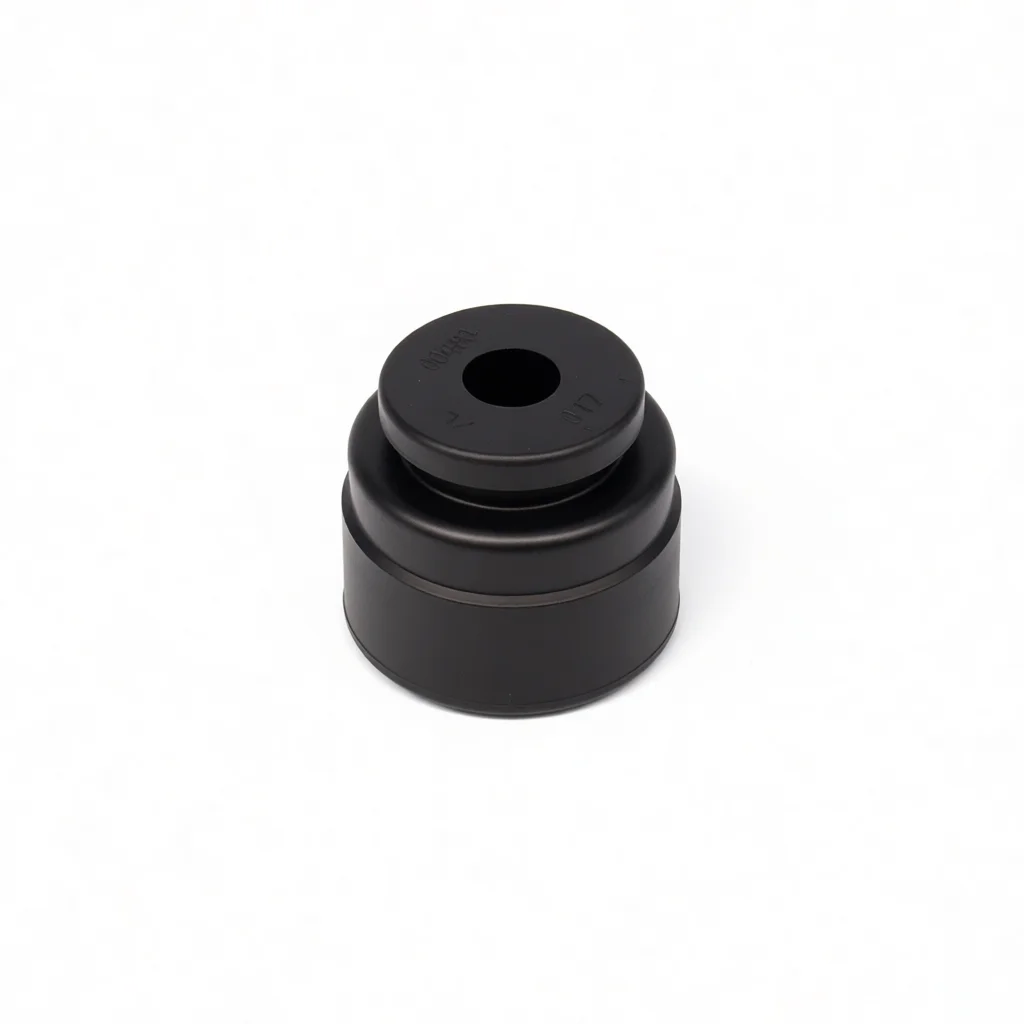

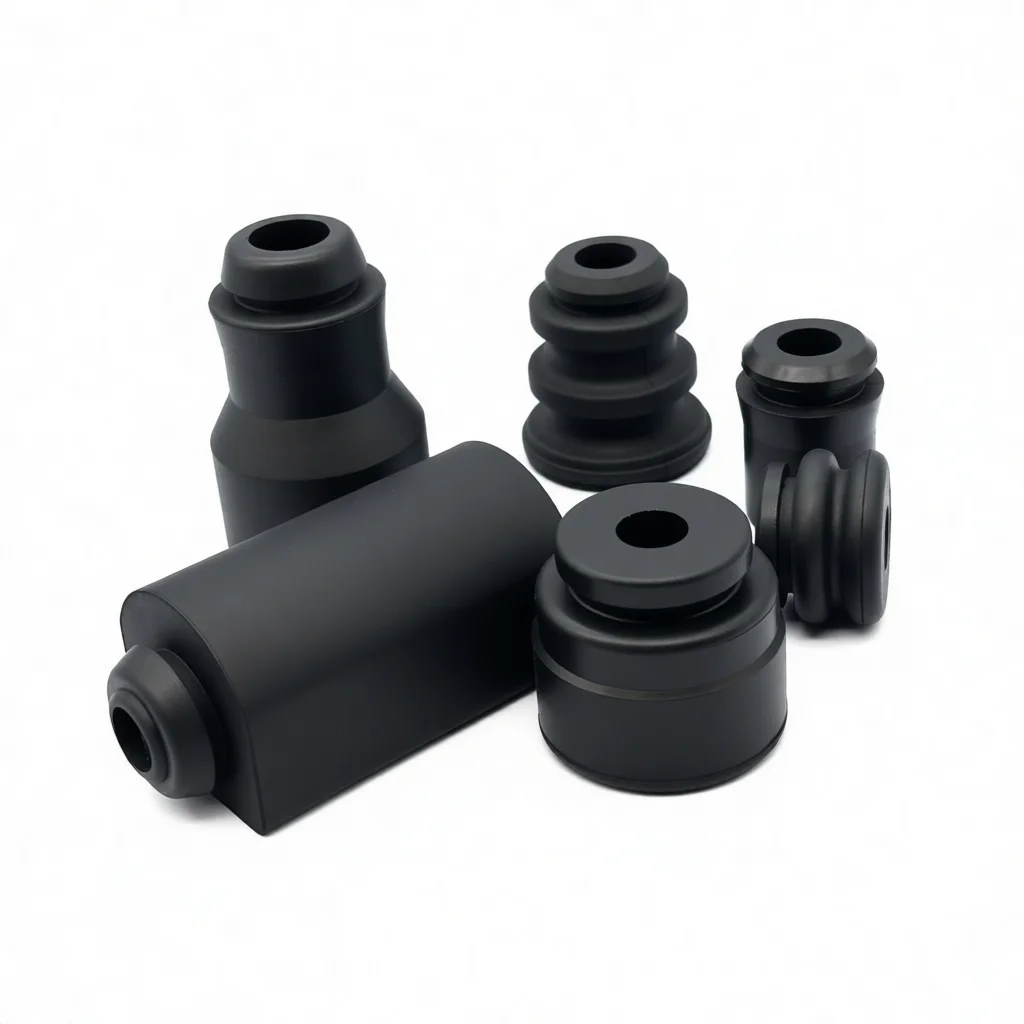

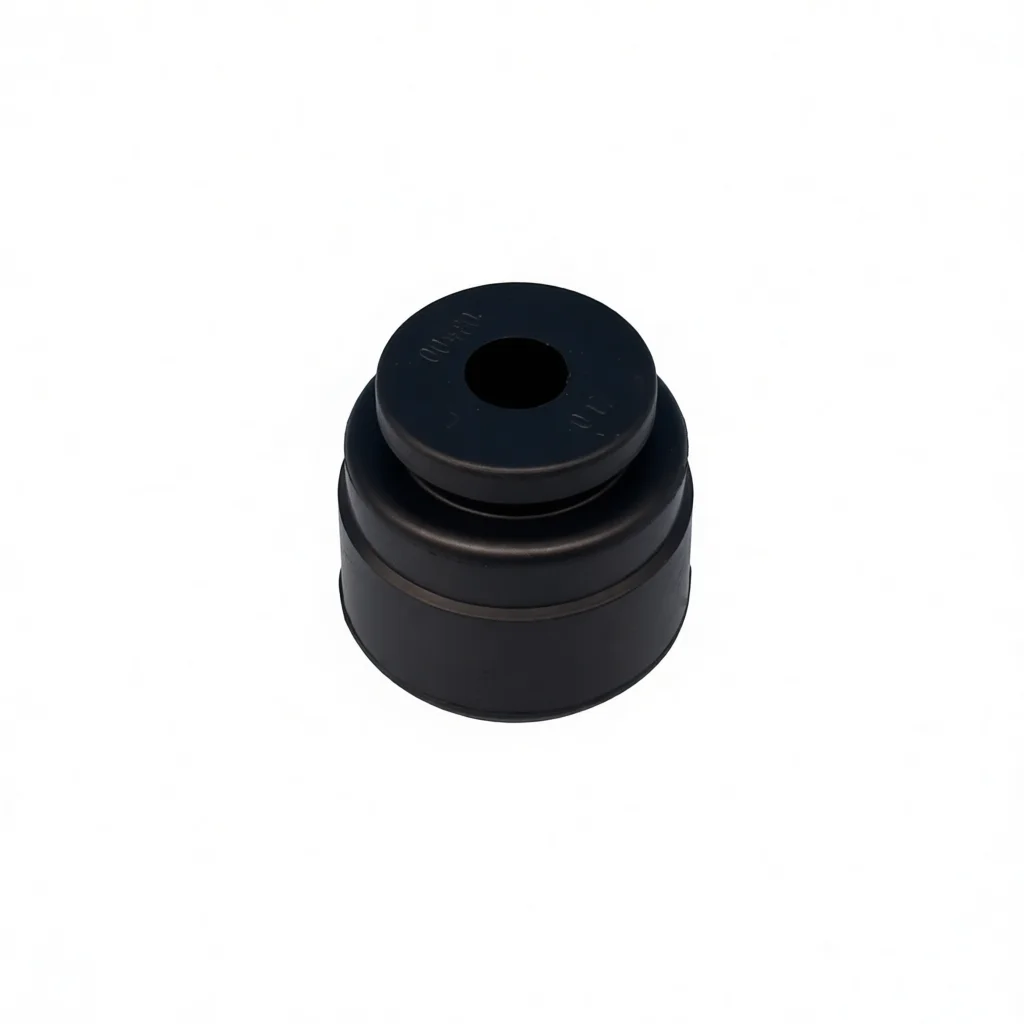

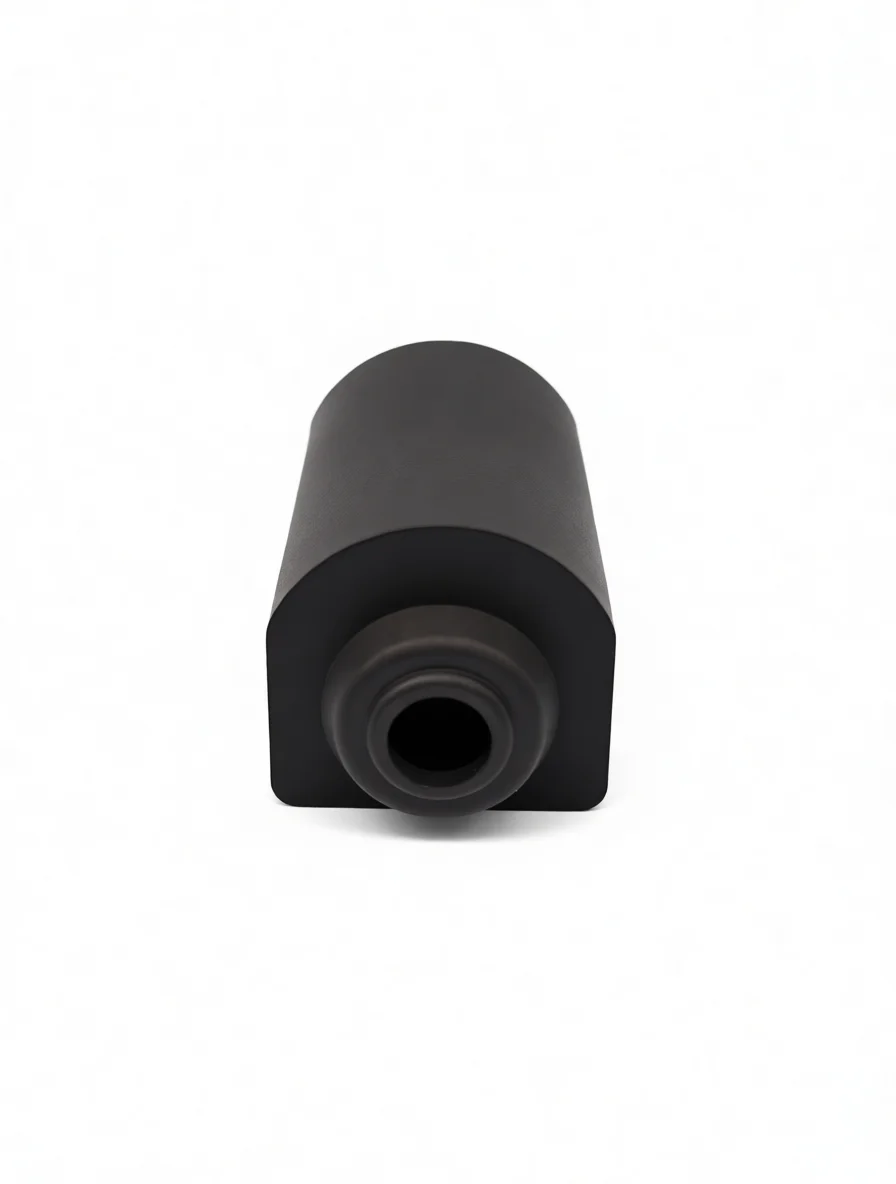

Rubber Vibration Damping Pad

APPLICATION SCENARIOS

1. Base of air conditioner outdoor unit, reducing the transmission of vibration during equipment operation

2. Indoor unit mounting bracket, absorbing mechanical vibrations to reduce noise

3. Fixing of fan motor, preventing structural damage caused by vibration

4. Compressor installation position, buffering impacts to extend service life

Product Description

This product is a metal-rubber integrated flexible coupling component, with high-elasticity NBR (nitrile butadiene rubber) as the main material. It adopts a thermal bonding process to firmly combine the rubber elastomer with aluminum alloy structural parts. It features excellent flexible buffering, vibration suppression and torque transmission functions, making it the preferred choice for flexible connection solutions in various fans, motors and precision equipment.

PRODUCT FUNCTION

High-elasticity vibration absorption: NBR has a high elastic modulus, which can absorb impact loads and dynamic torque, reducing the risk of system resonance;

Transmission noise reduction: Effectively convert vibration energy into thermal energy, reduce high-frequency noise, and enhance the silent operation of equipment;

Dynamic balance assurance: Particularly suitable for fan blades and rotating shaft systems, maintaining stable high-speed operation and avoiding asymmetric wear;

Excellent durability and oil resistance: The rubber has excellent oil resistance (to lubricating oil, fuel oil) and fatigue resistance, extending service life;

Adaptability to complex working conditions: Operating temperature range from -40℃ to +120℃, suitable for scenarios with high temperature, high load, and high-frequency vibration.

PERFORMANCE INDEX

Core material: NBR (nitrile butadiene rubber), supplemented with a CR bonding layer

Accessory structure: Thermal bonding molding / aluminum alloy inserts

High elastic modulus: With excellent energy buffering capacity

Operating temperature: -40℃ ～ 120℃

Oil resistance: Resistant to industrial media such as fuel oil, hydraulic oil, and lubricating oil

Fatigue life: ≥1,000,000 cycles under dynamic high-frequency load conditions

APPLICATION AREA

Industrial fans: Used for flexible connection between motors and fan blades, enhancing stability and safety;

Air conditioning compressor systems: Buffer rotor impact and extend the service life of mechanical components;

CNC equipment and precision motors: Absorb impact loads during rapid start-stop to ensure positioning accuracy;

Agricultural equipment and power tools: Provide vibration damping and noise reduction, enhancing operational comfort and structural protection performance.

Mechanical Vibration Damping Pads Supporting Dynamic Torque Stabilization in Industrial Machinery

The rubber vibration damping pad is a critical component for achieving dynamic torque stabilization in industrial machinery, particularly within fan/motor transmission systems and high-load power setups. Its design, leveraging NBR+SECC (or aluminum alloy in this case) composite technology, focuses on absorbing the mechanical energy generated during operation, which is essential for preserving the precision and longevity of equipment.

The primary mechanism is high-elasticity vibration absorption. The NBR (nitrile butadiene rubber) core possesses a high elastic modulus, enabling it to efficiently absorb impact loads and dynamic torque resulting from motor start-stop cycles, load fluctuations, or rotational imbalances. In industrial settings, these dynamic forces can lead to system resonance or physical stress on shafts and couplings. By converting this kinetic energy into thermal energy, the mechanical vibration damping pads effectively damp the oscillations, preventing the transmission of harmful vibrations throughout the machine frame. This damping is particularly important at the compressor installation position in air conditioning systems, where buffering impacts directly extend service life by protecting sensitive mechanical components.

The operational stability of the machinery is significantly enhanced by the pad's resilience. Its inherent properties include oil-resistant & heat-resistant features. In heavy-load environments common to CNC equipment and precision motors, exposure to lubricating oil, hydraulic oil, and high operational temperatures is inevitable. The vibration damping pads are engineered to resist degradation under these conditions, ensuring that their mechanical properties—elasticity and damping performance—remain consistent, thereby guaranteeing the long-term stability and positioning accuracy required in precision industrial applications. This robust design makes the pad an essential element in the mechanical equipment vibration control systems.

Vibration Damping Rubber Pads Engineered for Oil-Resistant and Heat-Resistant Working Environments

The engineering of vibration damping rubber pads specifically targets the need for durability and consistent performance in hostile industrial settings characterized by high heat and pervasive oil contamination. The material choice of NBR coupled with metal inserts is a direct response to these severe working conditions, making the product suitable for environments such as air conditioning compressor systems and various power tools.

The core material, NBR (nitrile butadiene rubber), is intrinsically selected for its Oil Resistance. This is a critical feature because conventional rubber materials swell, soften, and degrade rapidly upon exposure to industrial media like fuel oil, hydraulic oil, and lubricating oil. NBR maintains its structural integrity and high elastic modulus even when saturated with these chemicals, ensuring that its primary function—vibration absorption—remains unimpaired over the component's extended fatigue life. This durability guarantees that the equipment, such as the indoor unit mounting bracket, continues to absorb mechanical vibrations and reduce noise effectively for years.

Equally important is the Heat Resistance property. The vibration damping rubber pads are engineered to maintain operational stability across a wide temperature range, suitable for scenarios with high temperature, high load, and high-frequency vibration. This thermal stability is essential for components mounted near heat-generating sources, such as motors and compressors. By preventing material softening or hardening due to thermal cycling, the pads ensure the damping characteristics remain optimal, thereby extending the service life of adjacent mechanical components.

The composite structure, utilizing aluminum alloy thermal bonding integrated molding, further reinforces this durability. The strong and durable bond between the heat-resistant NBR elastomer and the metal parts prevents separation or peeling, even under the combined stress of thermal exposure, dynamic load, and chemical attack. This structural integrity is vital for applications like the fixing of fan motor, where preventing structural damage caused by vibration is a primary safety and maintenance concern. The robust, oil-resistant, and heat-resistant engineering ensures these vibration damping pads provide reliable, long-term vibration suppression in the most complex working conditions.

Rubber Vibration Damping Pad Applications in High-Speed Fan and Motor Transmission Systems

The rubber vibration damping pad is a pivotal flexible connection solution specifically optimized for high-speed fan and motor transmission systems, where maintaining dynamic balance, suppressing resonance, and reducing operational noise are paramount for safety and efficiency. The pad's design utilizes a flexible coupling approach to manage the complex dynamic forces generated by rotating machinery.

A key application is the flexible connection between motors and fan blades in industrial fans. The pad's high-elasticity vibration absorption function is essential here. During high-speed rotation, even minor manufacturing imperfections or material shifts can lead to dynamic imbalances, causing intense vibration and system resonance. The NBR coupling absorbs these dynamic torque fluctuations and impact loads, effectively cushioning the connection. This stabilization ensures stable high-speed operation and prevents asymmetric wear on the fan blades and shaft systems. This role in dynamic balance assurance significantly enhances the stability and safety of the industrial equipment.

Furthermore, the pads deliver significant transmission noise reduction. High-speed motors and fans inevitably generate high-frequency noise. The vibration damping pads work by efficiently converting the vibrational energy into thermal energy, thereby reducing the amplitude of the noise transmitted through the equipment structure. For commercial and industrial air conditioning units, installing these pads at the base of air conditioner outdoor unit and at the indoor unit mounting bracket drastically reduces the transmission of vibration and noise to the surrounding environment, enhancing the silent operation of equipment.

The reliability of the rubber vibration damping pad in high-speed scenarios is guaranteed by its superior durability features. Its oil resistance is vital for motor systems that rely on lubricants, and its fatigue resistance (engineered for high-frequency dynamic loads) ensures it withstands the continuous stress of high rotational speeds. Capable of operating across a wide operating temperature range, the pad is highly adaptable to the thermal outputs of high-power motors. This combination of vibration suppression and structural endurance makes the rubber vibration damping pad the preferred choice for reliable, high-performance flexible connection in all rotating machinery.
