Vibration Damping Plate

APPLICATION SCENARIOS

1. Inside of car doors, reducing sheet metal vibration and wind noise

2. Under the hood, reducing engine noise transmission into the cockpit

3. Chassis and wheel arch areas, reducing road noise and stone impact noise

4. Trunk and tailgate areas, improving overall vehicle sound insulation comfort

Product Description

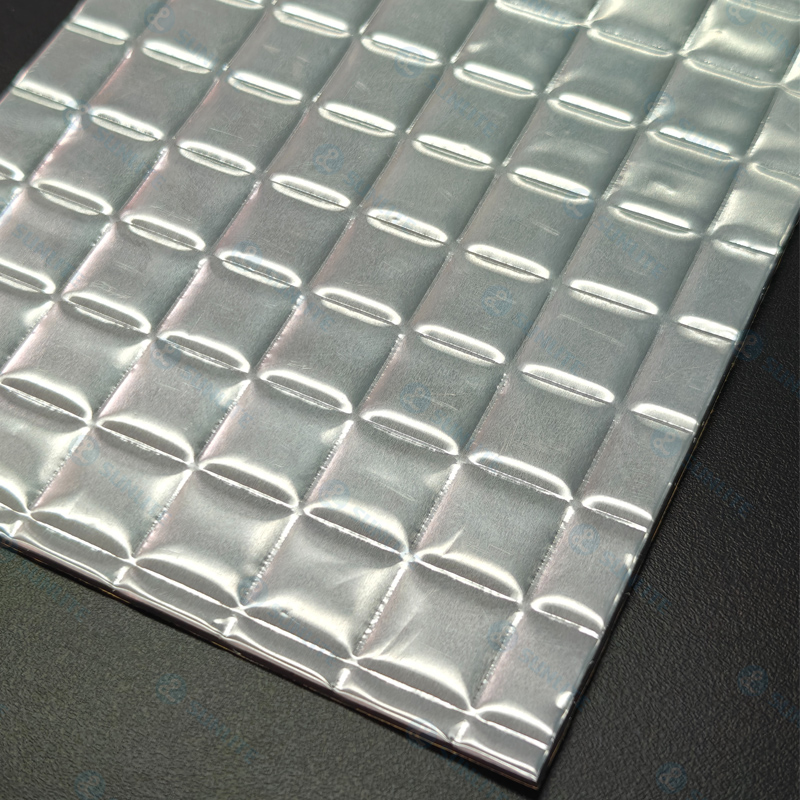

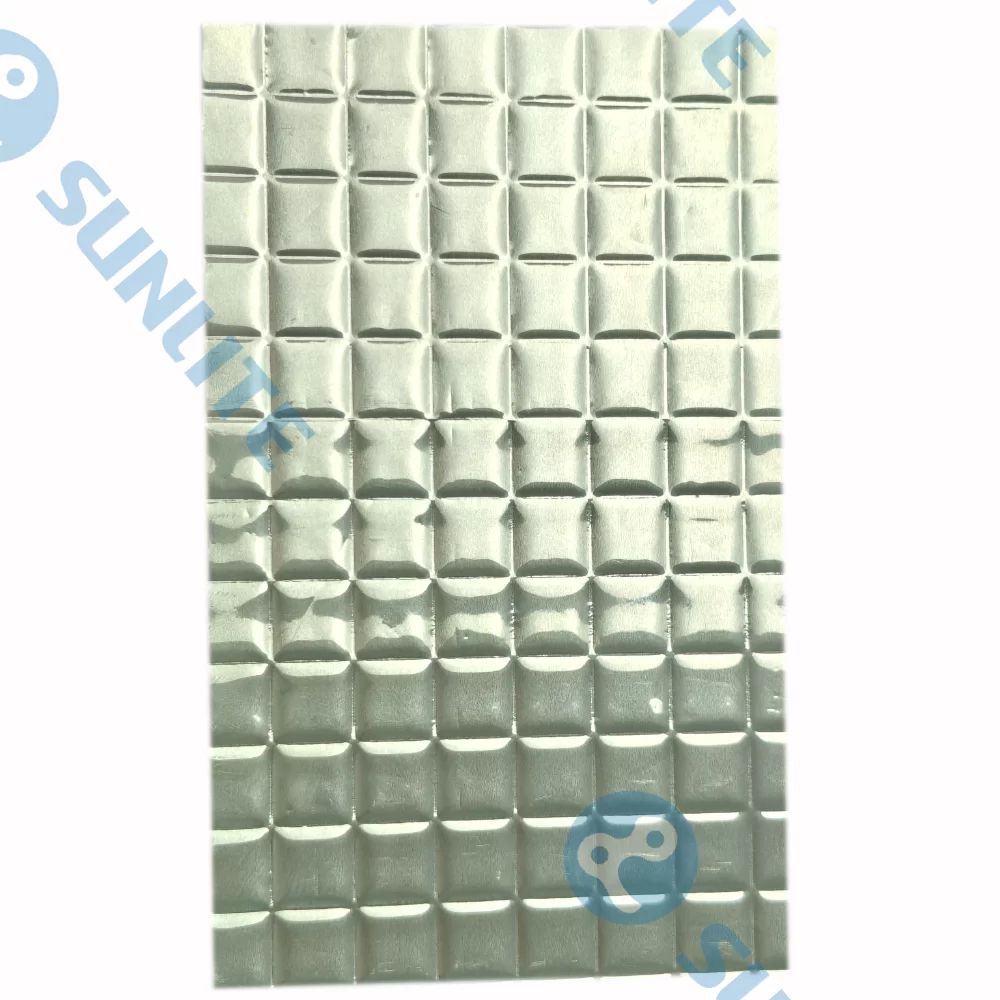

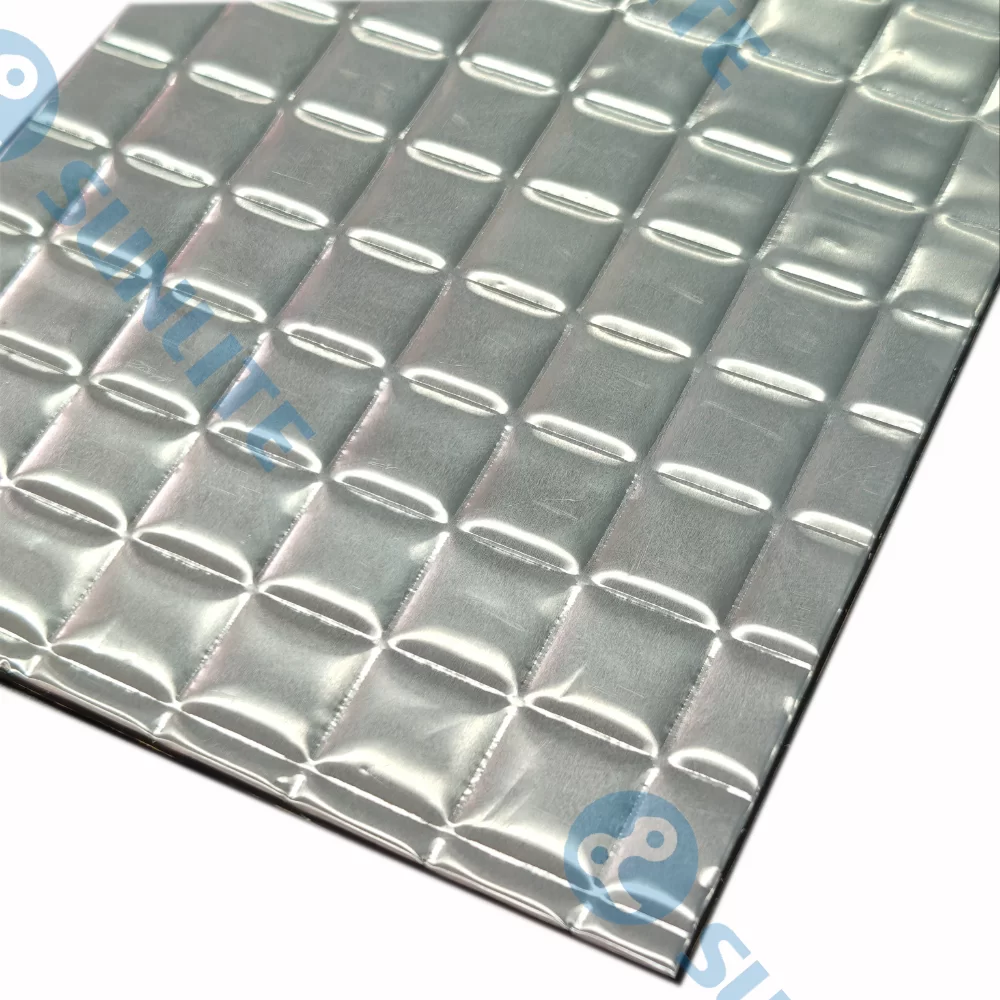

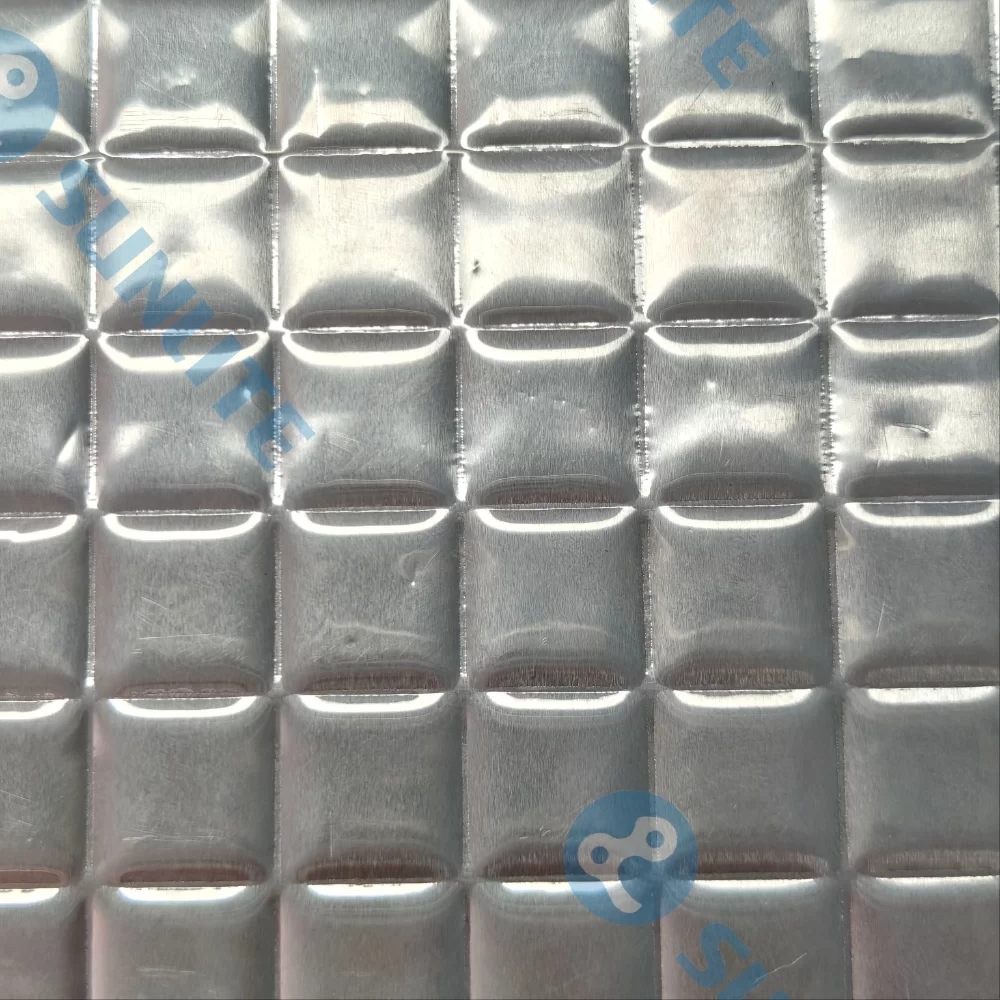

This series of automotive vibration-damping plates (also known as damping sheets or shock-absorbing plates) adopt a composite structure of butyl rubber and aluminum foil, featuring excellent damping and shock-absorbing performance. By directly attaching to the surface of thin metal plates such as car doors, chassis, and trunks, they effectively reduce resonance and the transmission of noise sources, improving the overall IVH performance of the vehicle. The product has good flexibility and anti-aging ability, with convenient construction that requires no professional tools. It can be cut and pasted as needed, adapting to various vehicle structures.

PRODUCT FUNCTION

High damping and vibration absorption: The butyl damping layer absorbs and dissipates vibration energy, inhibiting sheet metal resonance;

Significant noise reduction effect: When used with sound insulation materials, it comprehensively reduces road noise, wind noise, engine noise, etc.;

Highly conformable design: Adaptable to complex sheet metal curved structures, with no edge warping or hollowing after pasting;

Anti-aging, moisture-proof and anti-shedding: No hardening or oil seepage during long-term use, maintaining stable performance;

Tool-free construction: Equipped with release paper backed adhesive design, ready to use after peeling and pasting, facilitating personalized cutting and installation.

PERFORMANCE INDEX

Composite loss factor: ≥0.15 (indicating excellent damping performance)

Applicable temperature range: -40℃ ~ 80℃

Optimal construction temperature: 10℃ ~ 40℃

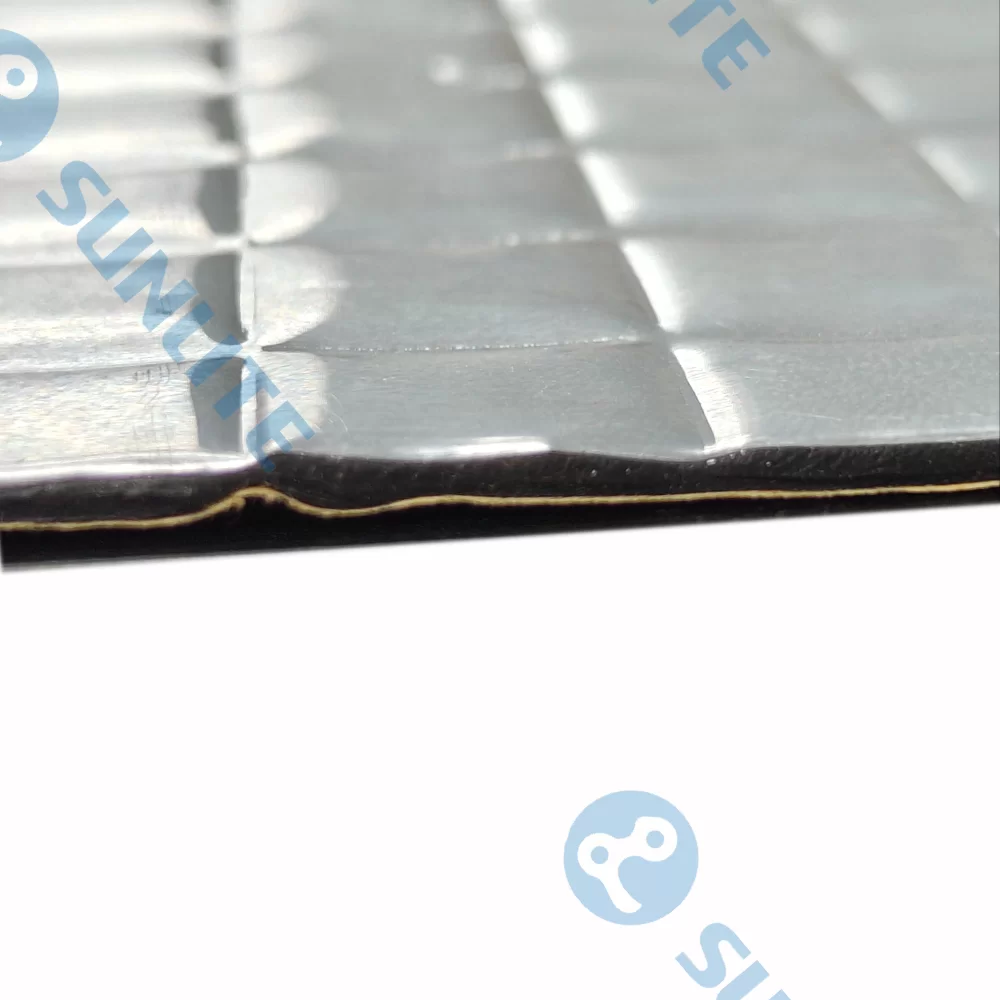

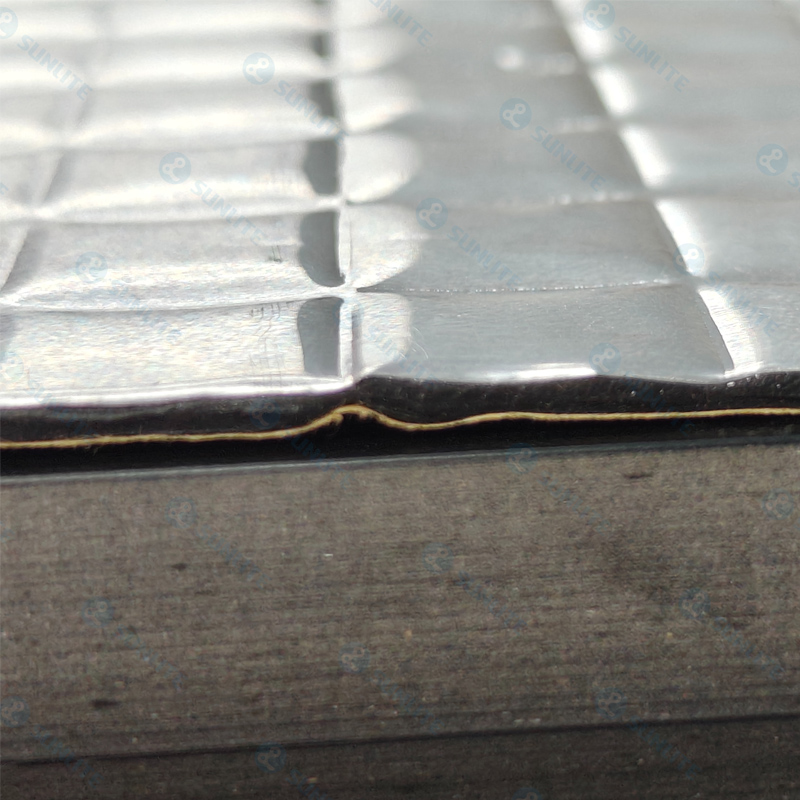

Structural composition: Butyl rubber base material + aluminum foil surface layer

Adhesion performance: Can achieve tight bonding without bubbles or gaps on clean sheet metal surfaces

Environmental requirements: Non-toxic and odorless material, compliant with automotive interior environmental requirement standards (REACH / RoHS versions customizable)

APPLICATION AREA

Widely used in noise reduction and vibration resistance systems of various vehicle types including but not limited to passenger cars, commercial vehicles, and new energy vehicles:

Inner door panels — Reduce door panel vibration and external noise penetration;

Underbody and floor panels — Isolate road noise and low-frequency vibration;

Trunk and wheel arches — Block rear resonance noise and gravel impact noise;

Engine compartment shields — Suppress structural vibration and heat-induced resonance;

Roof and firewall areas — Enhance overall vehicle quiet comfort and driving quality.

Vibration Damping Plate

The Vibration Damping Plate is a high-performance solution designed to reduce mechanical vibrations, minimize resonance, and protect sensitive equipment in industrial, automotive, and electronics applications. Crafted from advanced viscoelastic materials and reinforced composites, this plate efficiently absorbs and dissipates vibrational energy, ensuring that machinery, precision instruments, and electronic devices operate smoothly and reliably.

Engineered with multi-layer structures, the Vibration Damping Plate converts vibrational forces into heat energy, preventing them from affecting surrounding components. Its robust construction ensures stable performance under heavy loads, high-frequency vibration, and continuous operation, making it ideal for applications ranging from CNC machinery to household appliances and automotive electronics.

One of the key advantages of this vibration plate is its durability. Resistant to heat, moisture, UV exposure, and common industrial chemicals, it maintains long-term damping performance even in challenging environments. Its non-toxic and environmentally friendly materials also comply with global safety and environmental regulations, making it suitable for modern manufacturing standards.

By reducing resonance and mechanical stress, the Vibration Damping Plate lowers operational noise, extends the lifespan of machinery components, and improves precision. It helps minimize maintenance costs while enhancing operational safety and equipment performance. Whether used in industrial machinery, battery-powered devices, or consumer electronics, it ensures consistent and reliable vibration control.

Overall, the Vibration Damping Plate provides a versatile and durable solution for vibration isolation. Its advanced materials, multi-layer design, and environmental resistance make it an essential component for manufacturers and engineers seeking reliable, long-lasting, and efficient vibration control solutions.

Vibration Damping Plate

The Vibration Damping Plate is designed to offer superior vibration isolation for industrial machinery, precision instruments, automotive electronics, and consumer devices. Using high-quality viscoelastic polymers and reinforced composite layers, this plate delivers exceptional energy absorption, reduces resonance, and protects sensitive components from vibration-induced wear and tear.

Its multi-layer construction allows the Vibration Damping Plate to distribute mechanical stress evenly, maintaining structural integrity while providing consistent damping performance. By converting vibrational energy into heat, it prevents the transmission of vibrations to critical parts, safeguarding motors, electronic boards, battery packs, and mechanical assemblies.

Durability and environmental resilience are key features. The plate is resistant to high temperatures, humidity, UV radiation, and chemical exposure, ensuring reliable long-term performance. Its robust design prevents deformation and retains high damping efficiency even under prolonged exposure to heavy loads or high-frequency vibrations.

In addition to vibration control, the plate effectively reduces operational noise and enhances equipment precision. By minimizing resonance and mechanical fatigue, it extends component lifespan, reduces maintenance requirements, and improves overall equipment efficiency. Applications include industrial automation, robotics, automotive electronics, consumer electronics, and energy storage systems.

In summary, the Vibration Damping Plate combines high-performance damping materials, durable construction, and environmental resistance to deliver reliable vibration control. Its versatility and long-lasting efficiency make it an essential choice for OEMs, engineers, and manufacturers seeking optimal vibration management solutions.
