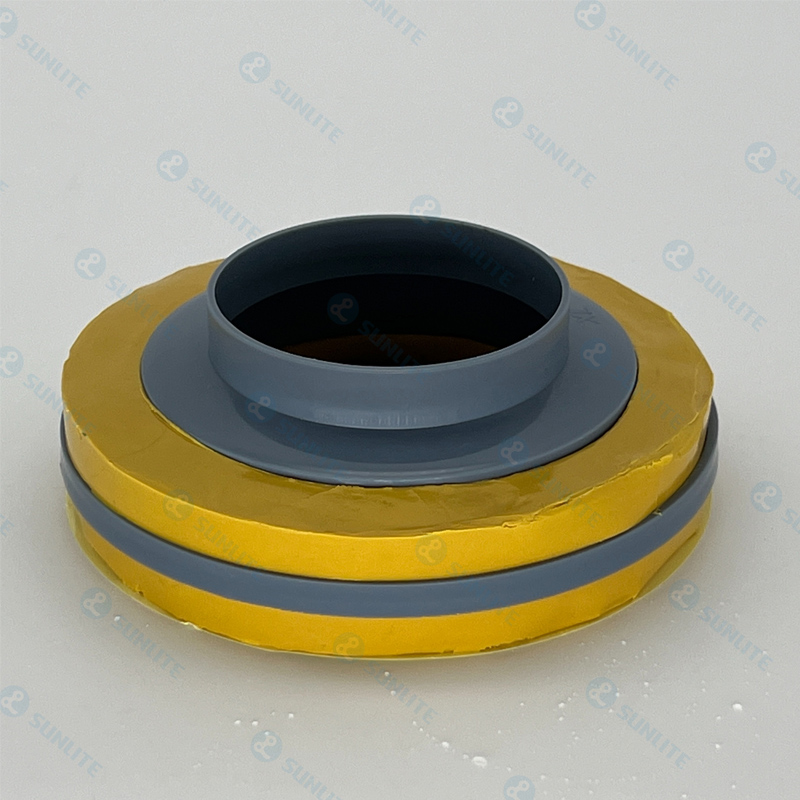

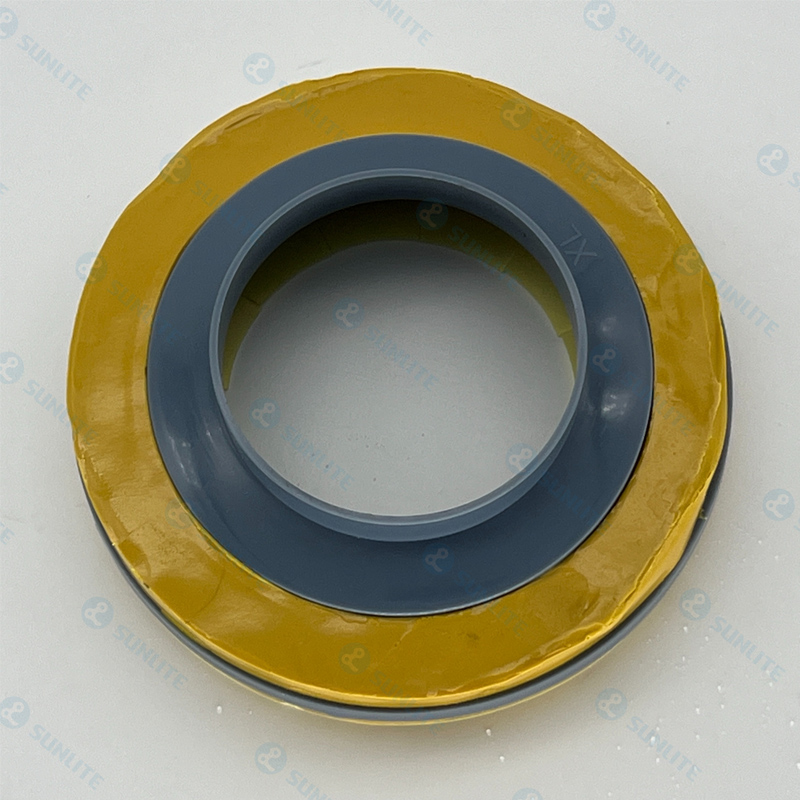

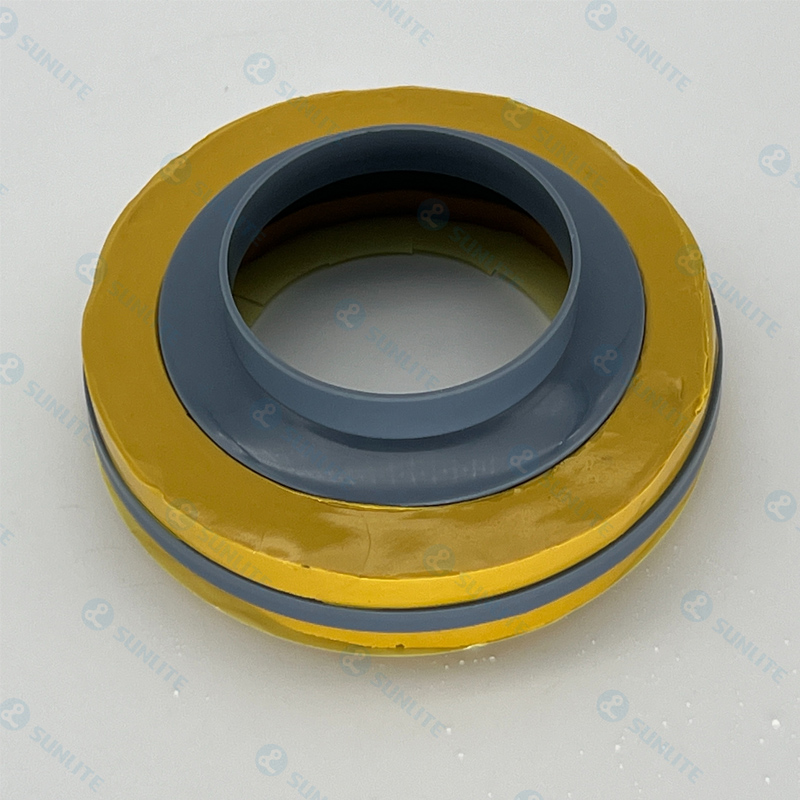

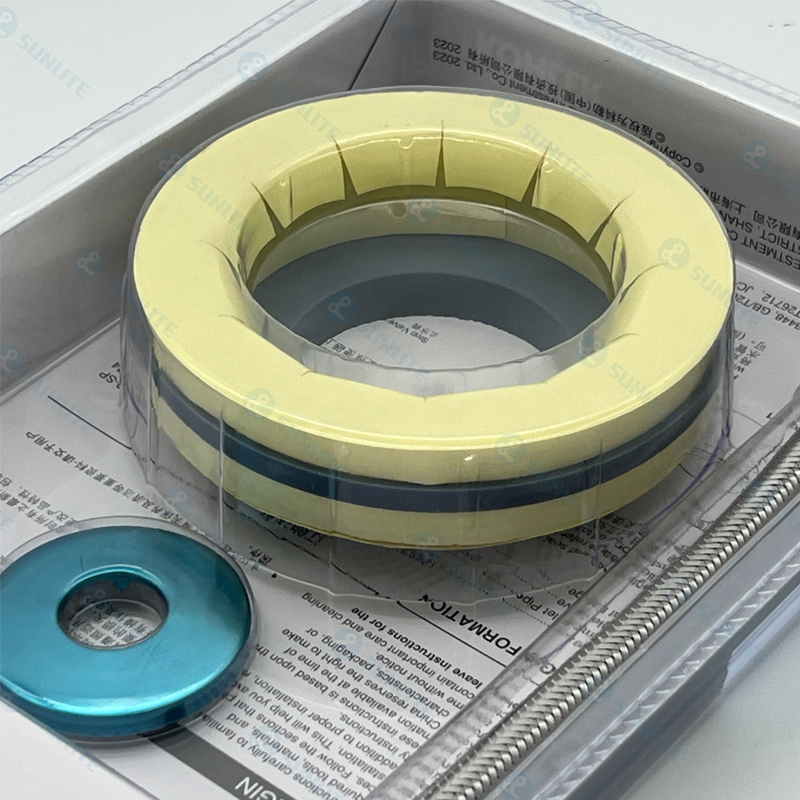

Toilet Flange Seal‌‌

APPLICATION SCENARIOS

1. Sealing of the interface between the toilet bowl and sewage pipe to prevent water leakage and odor

2. Sealing of toilet bowl installation and fixing points to ensure stability and waterproofing

3. Sealing of the connection between the floor sewage outlet and the toilet bowl to avoid leakage

4. Supplementary sealing accessories for bathroom toilet bowl replacement or maintenance

Product Description

This series of toilet flange seal ring products are made mainly of highly adhesive butyl rubber, forming flexible and dense sealing mastic through composite processing, which can be used for the sealed connection between toilet bowls and sewage pipes. Compared with traditional wax ring structures, it has a wider temperature adaptation range (-40℃ to 80℃), without melting or brittleness, ensuring reliable, durable and stable sealing. The product is eco-friendly and harmless, free of solvents and asphalt, and complies with multiple international environmental standards such as RoHS2.0, REACH, PAHs, POPs, TSCA, and PFAS. Sample-based customization services are available.

PRODUCT FUNCTION

Replaces traditional wax rings: Solves the problems of melting at high temperatures and cracking at low temperatures, achieving more stable sealing performance;

Excellent sealing performance: The highly plastic mastic structure effectively fills gaps, preventing leakage and odor diffusion;

Strong adhesion and easy installation: Has good adhesion to various materials such as ceramics, PVC, and concrete, with quick installation and no pollution;

Eco-friendly and safe material: Free of asphalt and solvents, non-toxic and odorless, with no harmful substances released during long-term use;

Suitable for multiple scenarios: Can be used for new installations as well as renovation and replacement of old toilets, with flexible installation positions.

PERFORMANCE INDEX

Main material composition: Butyl rubber composite sealing mastic

Sealing performance: Water-resistant sealing ≥ 0.3MPa

Operating temperature range: -40℃ to 80℃, no deformation under cold or heat

Adhesion: Bonding strength to ceramics, PVC, stainless steel, etc. ≥ 18N/25mm

Environmental certifications: Complies with regulatory requirements such as RoHS2.0, REACH, PAHs, POPs, TSCA, PFAS, etc.

Construction convenience: Soft and malleable, no heating required, easy to shape and paste

APPLICATION AREA

Sealing of the interface between toilet bowl and sewage pipe: Blocks sewage odor backflow and ensures hygiene and safety;

Sealing of toilet base and floor: Prevents leakage, enables stable installation, and extends overall service life;

Bathroom renovation and maintenance accessories: Serves as an ideal sealing replacement during toilet replacement, relocation, or secondary installation;

Compatible with multiple floor-drain/wall-drain structures: Suitable for multi-scenario installation needs such as households, hotels, public toilets, and hospitals.
