In the disciplines of precision automotive engineering,high-speed industrial automation,and sensitive electronic instrumentation,the greatest threat to structural longevity is not usually a single high-impact event.Instead,it is the cumulative effect of harmonic resonance.Every mechanical system has a natural frequency;when operational vibrations from motors,road friction,or cooling fans match this frequency,the resulting amplification of energy creates structural fatigue,micro-cracks in solder joints,and localized heat build-up.
For an engineer,the"Small Product,Big Impact"philosophy is perfectly embodied by the High-Damping Vibration Plate.While often viewed as a secondary finishing component,this specialized composite serves as the primary kinetic energy sink for the entire system.Without effective damping,thin-walled metal enclosures and chassis act as acoustic speakers,broadcasting noise and vibrating until the point of mechanical failure.At Guangdong Sunlite Science&Technology Co.,Ltd.,we position our high-damping solutions as more than insulation—they are precision-engineered"vibration killers"designed to ensure that your system’s Total Cost of Ownership(TCO)remains low by preventing resonance-induced degradation.
Technical Breakdown:The Physics of Hysteresis and Mass Loading
High-damping performance is achieved through a specific material science phenomenon known as viscoelastic damping.Unlike standard elastic materials that bounce back with minimal energy loss,a high-damping plate utilizes the internal molecular friction of specialized Isobutylene Isoprene Rubber(IIR),or Butyl rubber,to convert kinetic energy(vibration)into negligible amounts of heat.
Guangdong Sunlite’s High-Damping Vibration Plate features a multi-layered composite structure.The base is a high-density,high-purity butyl rubber compound(density≥2.3 g/cm³),which provides the necessary mass to shift the resonant frequency of the host panel.This is fused to a rigid,embossed aluminum foil constraining layer.This configuration forces the rubber into a"shear"state during vibration,maximizing the material's Loss
Factor(η).While a standard rubber mat might have a loss factor below 0.10,our engineered plates achieve a loss factor of≥0.25,providing an industry-leading rate of energy dissipation.
Technical Specification Comparison:High-Damping Plate vs.Standard Insulation
Engineering Metric | Sunlite High-Damping Plate(IIR/Alu) | Standard PE/PU Foam or PVC Mat |
Composite Loss Factor(η) | ≥0.25(Rapid energy conversion) | <0.08(Minimal damping) |
Material Density | ≥2.3 g/cm³(Significant mass loading) | <1.0 g/cm³(Low impedance) |
Operating Temperature | -40°C to+80°C | 0°C to+50°C(Prone to hardening) |
Structural Mechanism | Constrained Layer Damping(CLD) | Passive Absorption |
Adhesion Strength | High-Bond Pressure Sensitive Adhesive | Low-grade contact cement |
Environmental Compliance | RoHS,REACH,TSCA Compliant | Often contains VOCs or halogens |
Real-World Applications:Precision Damping Solutions
Guangdong Sunlite’s vibration plates are utilized where acoustic purity and mechanical precision are non-negotiable.
1.Electric Vehicle(EV)NVH Optimization

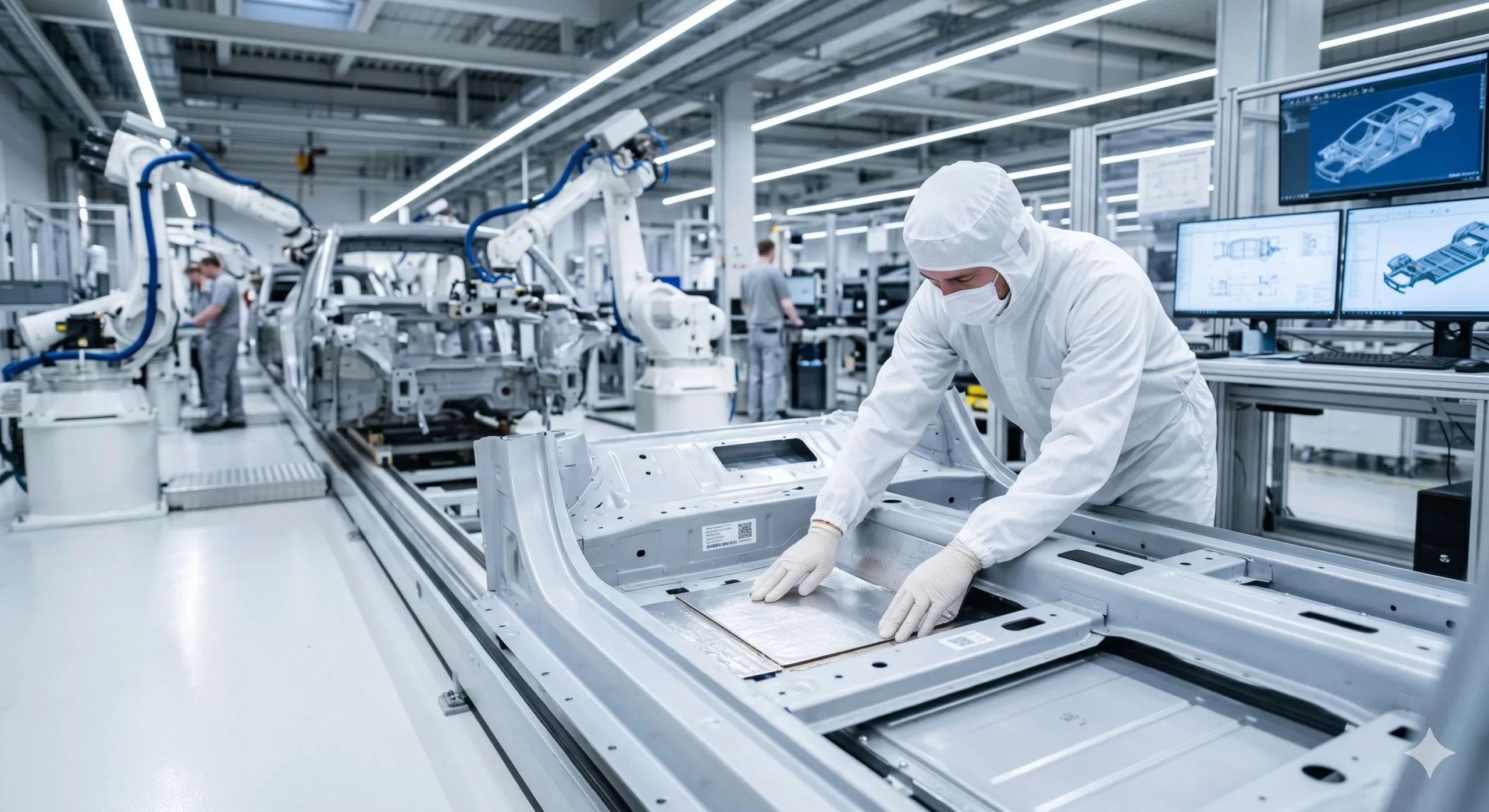

Without the masking noise of an internal combustion engine,electric vehicles are highly susceptible to"road roar"and high-frequency inverter hum.Our High-Damping Vibration Plates are applied to the cabin floor,wheel arches,and firewall.By deadening the large,flat sheet metal panels of the chassis,we reduce the interior sound pressure level(SPL)by up to 10-15 dB,delivering the silent,premium driving experience expected in the EV market.
2.High-Precision Laboratory&Medical Equipment
Sensitive equipment like electron microscopes,genomic sequencers,and MRI cooling systems are prone to"calibration drift"caused by ambient floor vibrations or internal motor resonance.Utilizing our plates within the equipment enclosures effectively isolates the sensitive optics and sensors from mechanical noise,ensuring data accuracy and reducing the frequency of recalibration cycles.
3.Industrial HVAC and Generator Enclosures
Large-scale rooftop chillers and backup diesel generators create massive amounts of low-frequency energy that can travel through a building's steel skeleton.Applying Sunlite's high-density plates to the enclosure panels prevents these panels from acting as secondary radiators of noise,protecting building occupants and structural integrity from chronic vibrational stress.
TCO Analysis:Beyond the Purchase Price
In B2B manufacturing,the true cost of a vibration damping solution is not the price per square meter.The Total Cost of Ownership(TCO)is defined by the components'ability to prevent system-wide failures.
Choosing a low-cost,low-density asphalt or bitumen-based pad might save 20%on upfront material costs,but these materials often dry out,crack,and lose adhesion within 24 months.When a damping pad detaches inside a car door or a machine housing,it leaves the metal vulnerable to resonance and corrosion,potentially leading to expensive warranty claims and brand damage.
Guangdong Sunlite's High-Damping Vibration Plates are engineered for the lifespan of the machine.Our proprietary adhesive formulation ensures that once the plate is rolled onto a clean surface,it will not peel,outgas,or harden.By significantly increasing the Mean Time Between Failures(MTBF)of internal electronics and maintaining the"quiet"feel of a product for years,our solutions provide a vastly superior ROI compared to commodity insulation.
FAQ Section for Featured Snippets
What is the difference between a high-density and a high-damping vibration plate?
While both use mass to reduce noise,a high-density plate focuses on blocking airborne sound(transmission loss),whereas a High-Damping Vibration Plate specifically utilizes viscoelastic materials to convert structural kinetic energy into heat(damping loss).Damping is generally more effective at stopping the"ringing"of metal panels.
Can these vibration plates be used in high-temperature environments?
Guangdong Sunlite’s IIR-based plates are stable up to 80°C(176°F).For applications involving higher temperatures,such as engine compartments or industrial furnaces,we offer specialized heat-resistant variants that maintain their loss factor without melting or off-gassing.
Do I need specialized tools to install the High-Damping Vibration Plate?

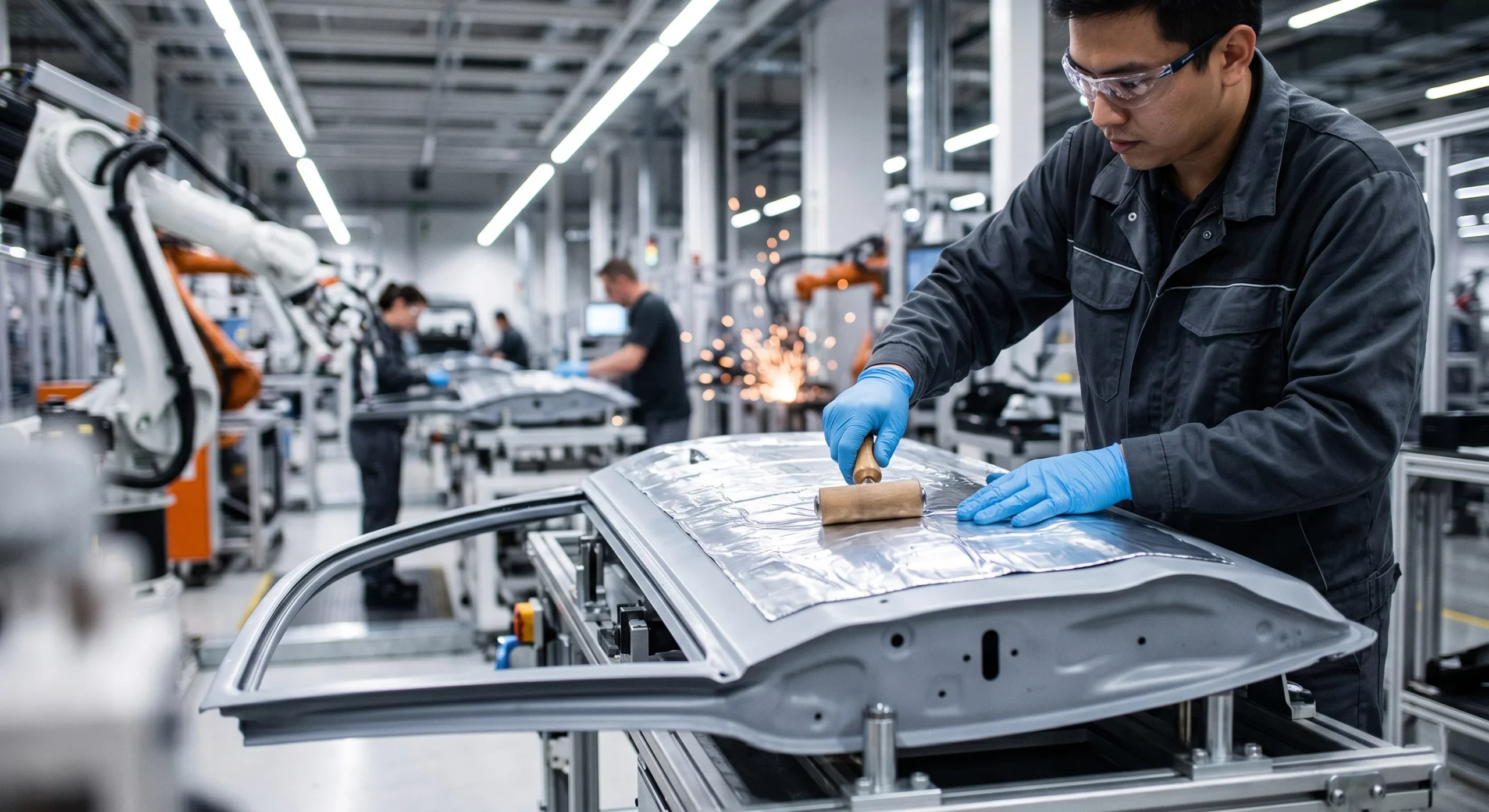

No.Our plates feature a self-adhesive,"peel-and-stick"backing.For optimal engineering performance,it is recommended to use a weighted hand roller to ensure 100%surface contact,as the damping effect relies on the mechanical coupling between the viscoelastic layer and the metal substrate.
Secure Your Engineering Foundation with Guangdong Sunlite
Don't let harmonic resonance compromise your product's performance or your brand’s reputation.Whether you are solving NVH challenges in automotive design or protecting sensitive lab instruments,the material science of your damping solution is the difference between reliability and failure.
Contact the engineering team at Guangdong Sunlite Science&Technology Co.,Ltd.today.Our specialists are ready to provide custom loss-factor analysis,material selection guidance,and sample testing to ensure your project is built on a foundation of silence and stability.
