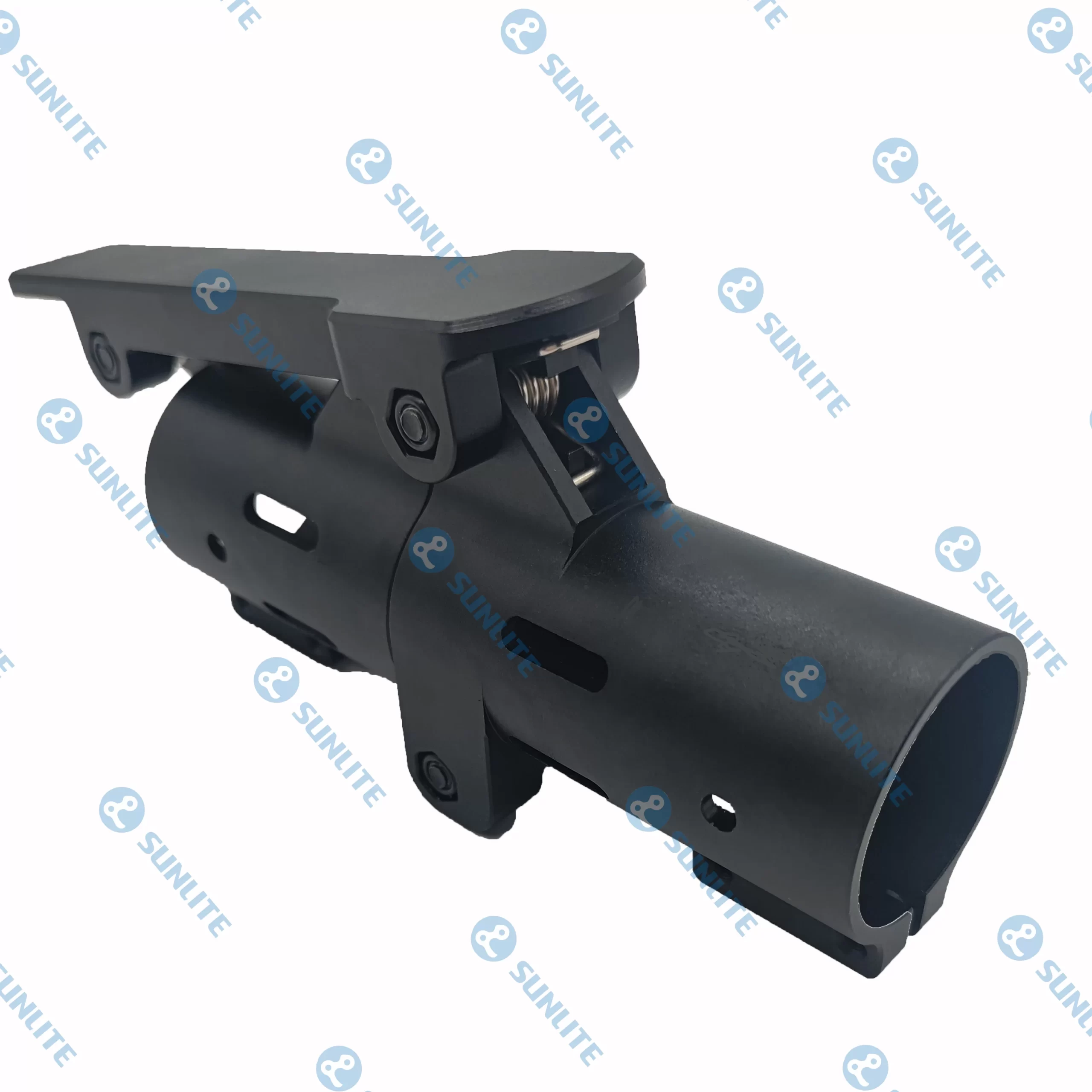

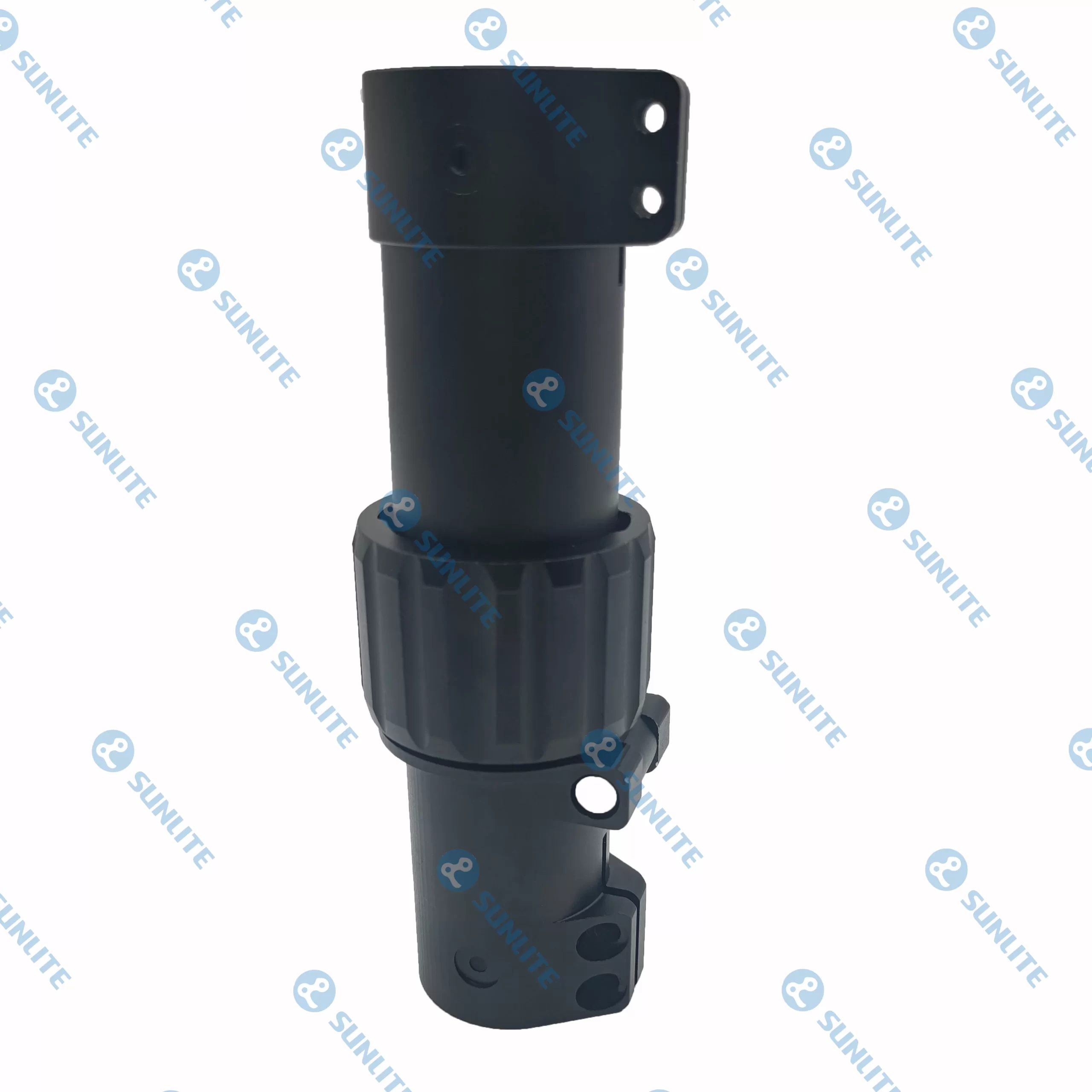

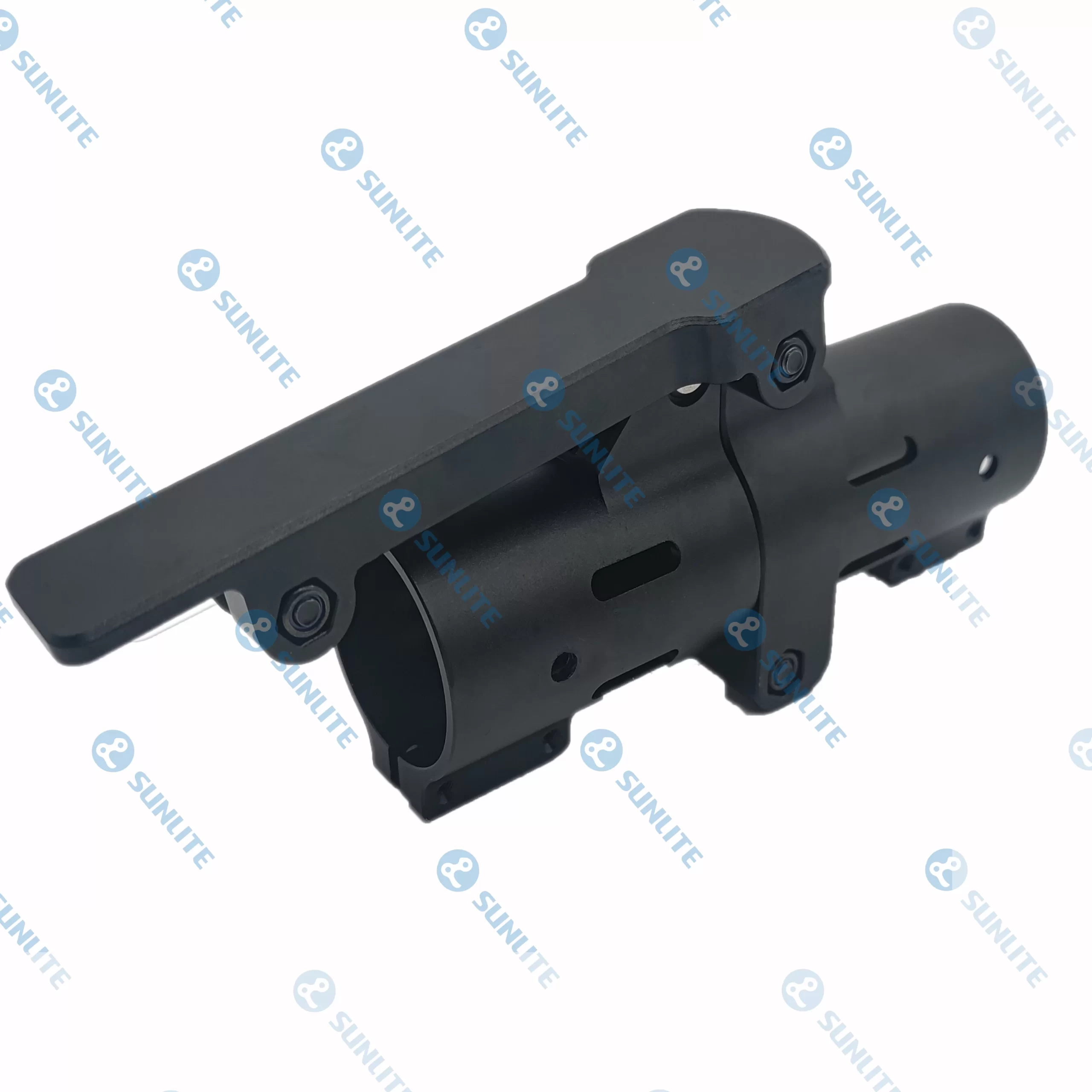

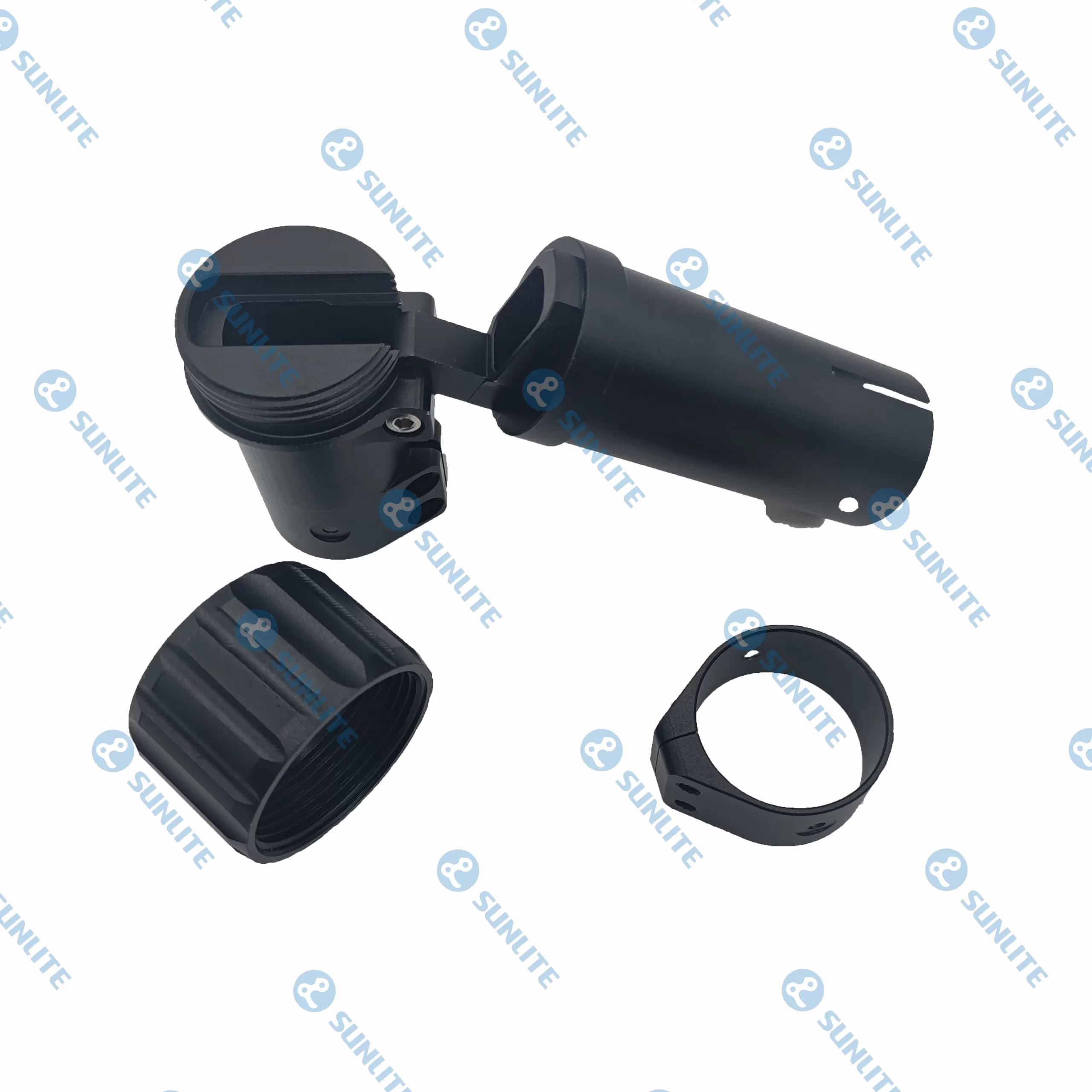

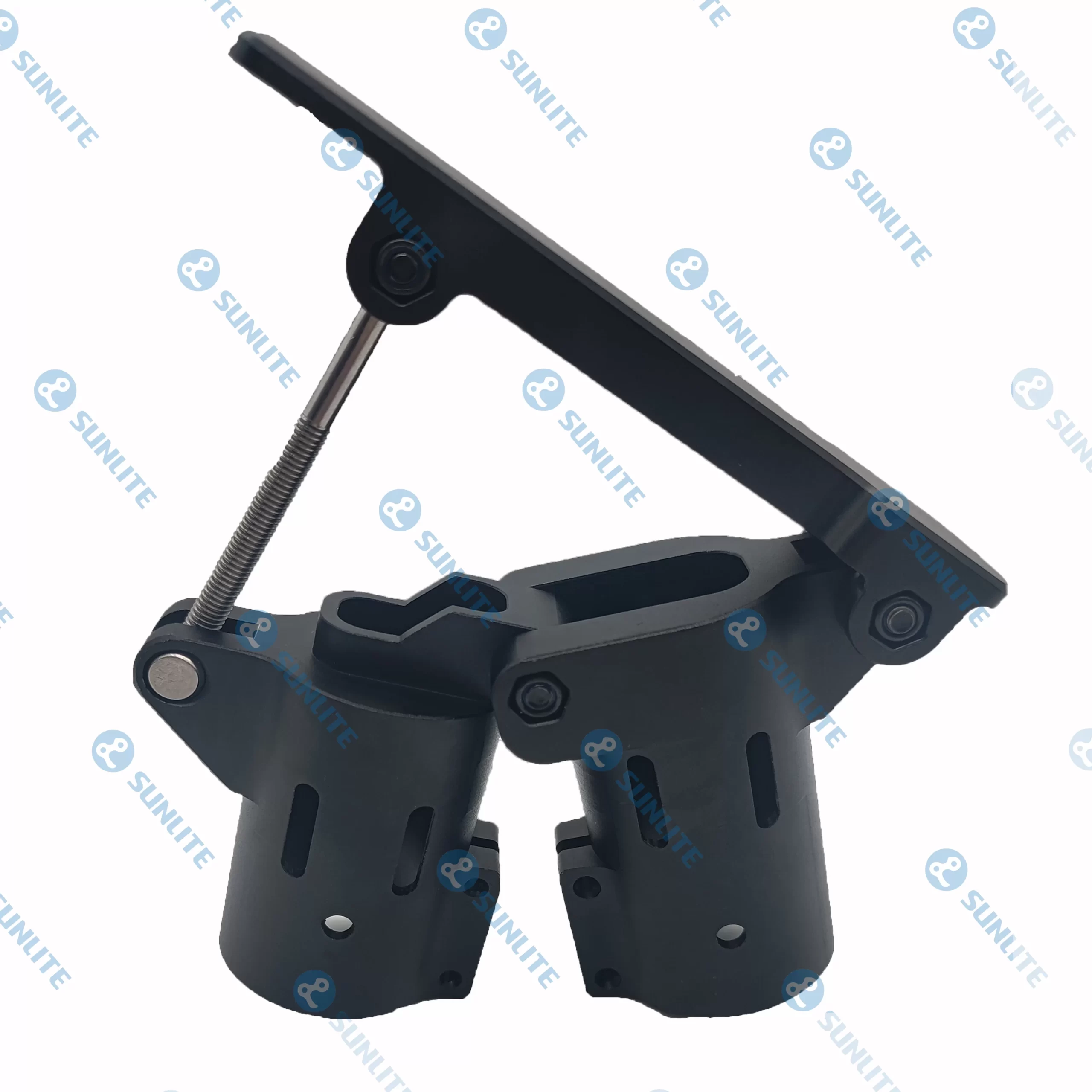

The Drones Folding Tube is a professional-grade structural component engineered for high-performance UAVs. Combining aerospace-grade aluminum alloy with precision engineering, these folding tubes provide the perfect balance of lightweight agility and exceptional structural rigidity, ensuring stability under extreme flight pressures across various demanding operational environments.
Designed for versatility and rapid deployment, our folding tubes are compatible with a wide range of mainstream drone models. Whether utilized for large-scale agricultural spraying or critical emergency rescue missions, these components ensure that your UAV remains durable, reliable, and easily transportable without compromising on flight safety or payload capacity.
| Base Material | Aluminum Alloy 6061 | Yield Strength (Std) | 110 – 180 MPa |
|---|---|---|---|
| Tensile Strength (Std) | 180 – 210 MPa | T6 Grade Yield | 240 – 310 MPa |
| T6 Tensile Strength | 290 – 310 MPa | Available Inner Diameters | 25mm, 30mm, 35mm |
| Extended Inner Diameters | 40mm, 50mm, 80mm | Structure Type | Direct-connect & Quick-release |
| Impact Resistance | +200% vs Previous Gen | Customization | Supported (Multiple Specs) |
Utilizing 6061 Aluminum Alloy to deliver superior impact resistance and structural integrity during high-pressure flights.
The quick-release model transforms the drone from retracted to flight-ready in seconds, maximizing operational efficiency.
Engineered to reduce overall UAV weight, extending battery life and increasing maximum payload capacity.
Compatible with most mainstream agricultural, rescue, and material distribution drone models on the market.
Available in multiple inner diameter specifications (25mm to 80mm) to ensure a perfect fit for any frame.
Highly resistant to fatigue and corrosion, making it ideal for harsh outdoor agricultural or industrial environments.
Optimized for large-scale crop spraying drones requiring high structural stability and easy transport.
Quick-release mechanisms enable rapid deployment for fire fighting and search-and-rescue operations.
Designed to withstand the dynamic pressures of material delivery and heavy-payload transport.
Durable and easy-to-assemble tubes ideal for UAV training drones and academic research.
High-precision aluminum alloy ensures stable flight for high-resolution industrial sensor payloads.
Tailored dimensions and material specifications to meet unique proprietary drone frame designs.
| Performance Metric | Standard Aluminum | Our 6061 Folding Tube |
|---|---|---|
| Deployment Speed | Slow (Manual) | Ultra-Fast (Quick-Release) |
| Impact Resistance | Baseline | +200% Improvement |
| Weight-to-Strength Ratio | Moderate | Industry-Leading High |
| Flight Stability | Standard | Enhanced Anti-Vibration |
| Maintenance Cost | Frequent Replacement | Long-term Durability |
We use aerospace-grade Aluminum Alloy 6061, specifically treated (including T6 options) to provide high tensile strength and a superior strength-to-weight ratio, which is critical for maintaining drone stability during flight.
The direct-connect model offers a simple, rigid structure for permanent setups, while the quick-release model allows operators to unfold or retract drone arms in seconds using a control handle, significantly boosting efficiency in emergency scenarios.
Our tubes are designed for versatility and are compatible with most mainstream drone models. With inner diameters ranging from 25mm to 80mm, they meet the installation requirements of various industrial and agricultural UAV frames.
Yes. By utilizing high-strength aluminum alloy, these components are engineered to withstand significant flight pressure and impact. The latest model features a 200% increase in impact resistance compared to previous iterations.
Absolutely. As specialists in rubber and plastic products and precision metal components, we provide extensive customization for inner diameters and material specifications to fit your specific drone architecture.
The T6 temper provides a significantly higher yield strength (240-310 MPa) and tensile strength (290-310 MPa), ensuring that the drone arms can carry heavier payloads and resist deformation under stress.
